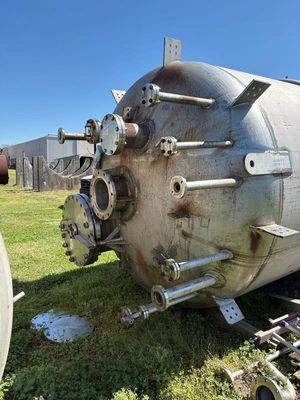

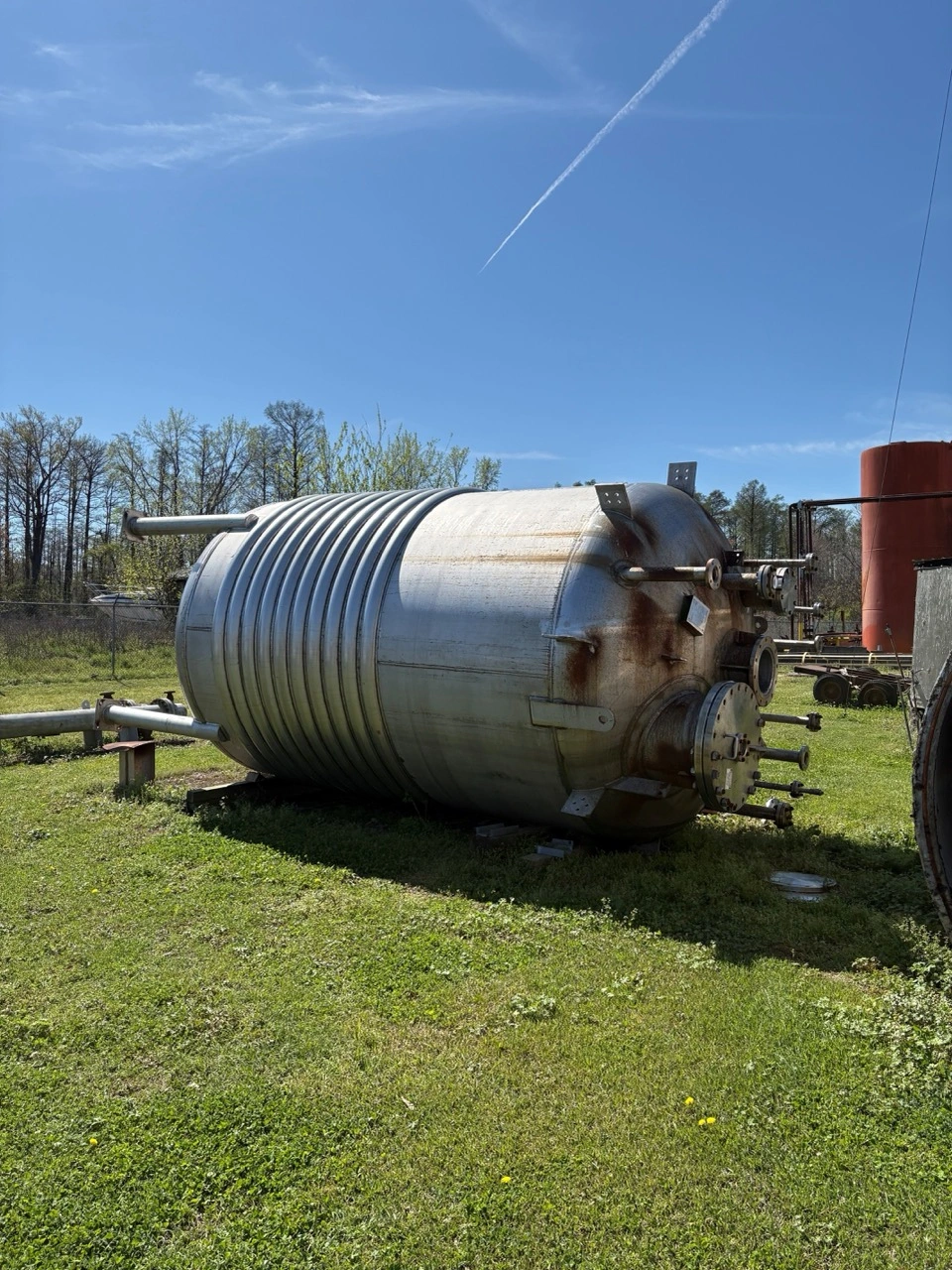

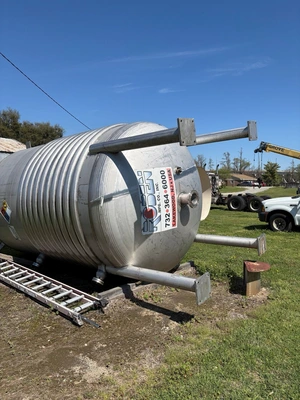

USED 2015 ROBEN MANUFACTURING CO. 6,000 GALLON REACTOR

Manufacturer: Roben
Material: 304 Stainless Steel
Vessel Dimensions: Approx. 102″ diameter × 144″ straight side height; dished heads for added strength and pressure integrity
Pressure & Temperature Ratings:
Internal vessel: 100 PSI / Full Vacuum, -25°F to 450°F
Half-pipe coiled jacket: 150 PSI / Full Vacuum, up to 375°F (compatible with steam, glycol, or hot oil for efficient thermal transfer)
Top Fittings & Nozzles:
24″ manway with sight glass
12″ agitator nozzle (agitator and drive not included)
Multiple process nozzles ranging from 1.5″ to 8″ for flexible instrumentation and product flow
Additional Features:
6″ center bottom outlet
1″ offset bottom head thermocouple port

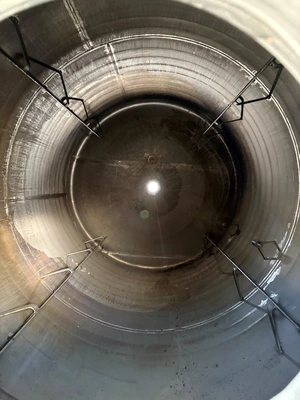

(4) internal baffles for improved mixing
Dip tube support stands
Mounted on (4) stainless steel legs
