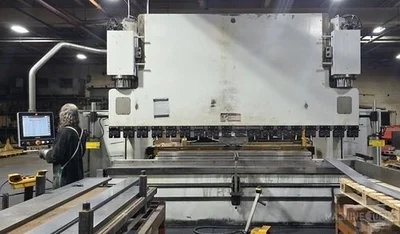

USED ERMAKSAN CNC-AP 3760-320

Brand – ERMAKSAN Model – CNC-AP 3760-320 Type – Press Brakes Year – 2011 Condition – Used – Good

Tonnage: 352 T
Type: HYD
Overall Length: 148″
Between Housings: 128″
Stroke: 0.4646″
# Axis: 7
Dimensions: 201″ L x 124″ H x 97″ W
Weight: 45,000 lbs

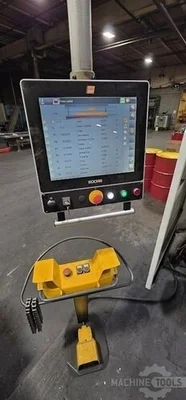

Control: CNC (STEP Automation ROCK17-3D)
Tonnage: 352 US Tons Bending Length (A): 148″ Distance Between Housings (B): 128″ Stroke (C): 14.7″ Daylight / Open Height (D): 25.6″ Throat Depth (E): 16.1″ Table Height (F): 35.4″ Table Width (G): 8.6″ Approach Speed: 330 in/min Bending Speed: 24.8 in/min Return Speed: 354 in/min Back Gauge Travel (X Axis): 31.5″ Back Gauge Travel (R Axis): 9.8″ Main Motor: 40 HP Oil Capacity: 105 US Gallons Machine Length (L): 200.8″ Machine Width (W): 85″ Machine Height (H): 122″ Weight: 44,000 lbs

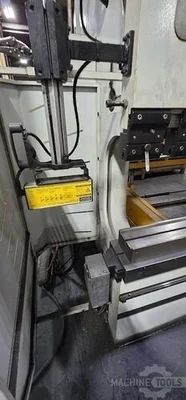

ROCK 17 3D CNC Control 7-Axis Configuration (Y1, Y2, X1, X2, R, Z1, Z2) CNC Motorized Crowning System AKAS II Ram-Mounted Laser Safety Oil Cooling System American / European Tool Clamps
