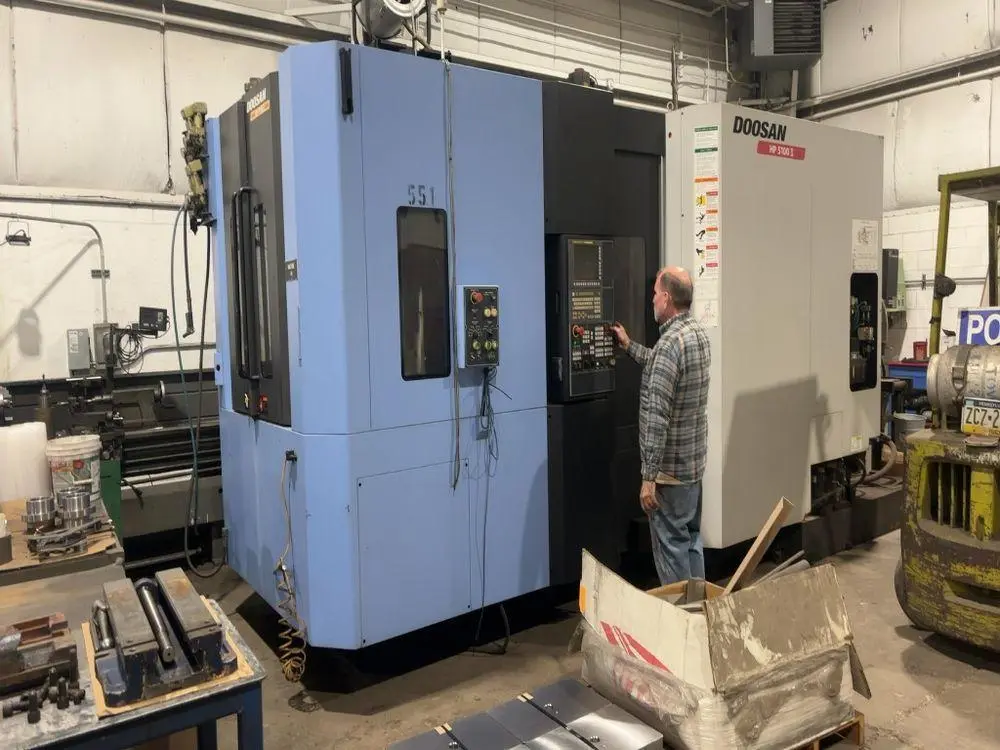

USED 2015 DOOSAN HP5100 II

Fanuc 31i-MB CNC Control

High Pressure Coolant Thru Spindle

HSK 63 | 14,000 rpm | 30 hp | 60 ATC

Pallet Size: 19.7" x 19.7"

Travels: 33.5" / 27.6"/ 29.5"

Full 4th Axis Indexing 0.001°
The Doosan HP5100 II is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: Fanuc 31i-MB
# Axis: 4
Pallet Length: 19.7"
Pallet Width: 19.7"
Pallet Capacity: 1,100 pounds
Pallet Indexing (B-Axis): 0.001°
X-Axis Travel: 33.5"
Y-Axis Travel: 27.6"
Z-Axis Travel: 29.5"
Rapid Traverse Rate (X/Y/Z): 2,362 ipm
Spindle Taper: HSK 63
Spindle Speed: 14,000 rpm
Spindle Motor (HP): 30 hp
Tool Changer Capacity: 60
Coolant Through Spindle: yes
Machine Dimensions: 212" x 110" x 119"
Machine Weight: 33,100 pounds

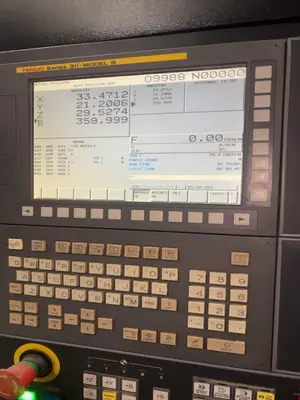

- Fanuc 31i-MB Control

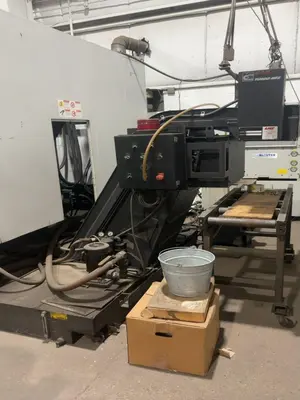

- Chip Blaster (model JV-40) Hi-Pressure CTS
- Chiller Unit
- Coolant Tank & Pumps
- Chip Conveyor
- Embedded Ethernet | RS232 Port | USB Port
- Tool Load Monitoring
- Manual Guide i (conversational programming)
- Handheld Remote Manual Pulse Generator (MPG)
- Custom Macro B
- Rigid Tapping
- Embedded Ethernet
- USB
- 200 Tool Offset Pairs
- Tool Life Management
- Tool Offset Memory C
- Graphic Function
- AI Contour Control II
- Machining Condition Selecting Function
