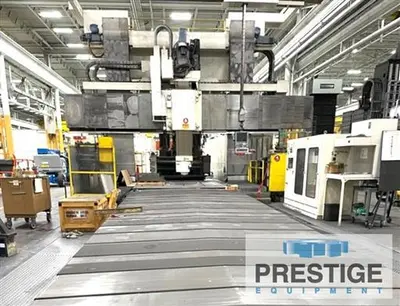

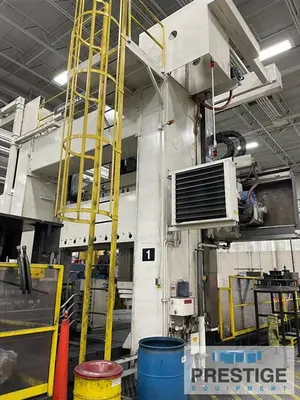

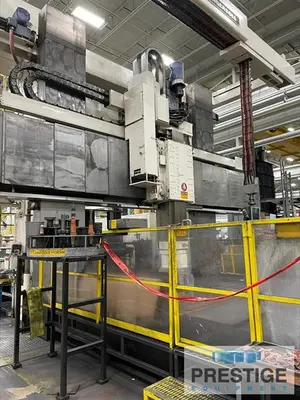

USED 1986 INGERSOLL 5-AXIS

SPECIFICATIONS:
X-Axis, Combined Tables: 527.5"
Y-Axis, Horizontal Head Travel: 231.29"
Z-Axis, Ram Travel: 39.4"
W-Axis, Travel of Cross Rail: 96.45"
A-Axis, Head Movement: 360,000 Positions
B-Axis, Head Movement: 360,000 Positions

SPECIFICATIONS:
Distance Between Columns: 153.54"
Distance Between Columns Way Covers: 147.63"
Height Under Spindle: 127.93"
Table Size, #1: 137.79" x 236.22"
Table Size, #2: 137.79" x 236.22"
Table Size, 1 & 2 Combined: 137.79" x 472.2"
Ram Cross Section: 23.62" x 23.62"
Feeds: X,Y,Z Axes: 0-472 IPM
Rapid Traverse,: 472 IPM
Spindle Speeds: 2 to 2500 RPM
Spindle Drive Motor: 125 HP
Spindle Taper: CAT 50
Table Weight Capacity: 176 Tones

Equipped With:
Fidia C-20 5-Axis CNC Control (Retrofit 2000)
Ram Type Vertical Milling Head
88 Station Automatic Tool Changer (ATC)
10 Station Automatic Head Changer (AAC)
2-Axis Articulating Head w/ Cat 50 Taper
Assorted Right Angle and Vertical Millng Heads
Split Table
Steel Sliding Way Covers on All Axes
Thru Spindle Coolant
Chip Conveyors
Condition: Excellent

Features:
Fidia C-20 5-Axis CNC Control (Retrofit 2000)
Ram Type Vertical Milling Head
88 Station Automatic Tool Changer (ATC)
10 Station Automatic Head Changer (AAC)
2-Axis Articulating Head w/ Cat 50 Taper
Assorted Right Angle and Vertical Millng Heads
Split Table
Steel Sliding Way Covers on All Axes
Thru Spindle Coolant
Chip Conveyors
