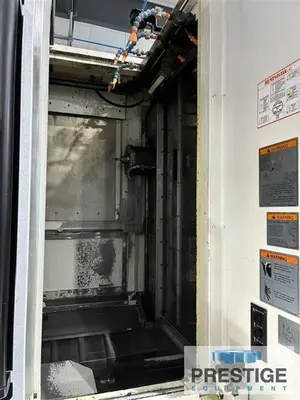

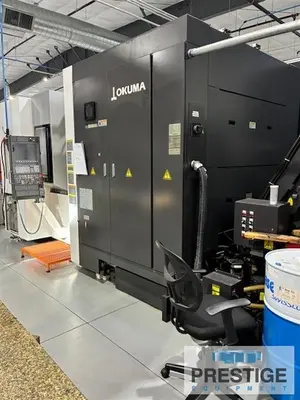

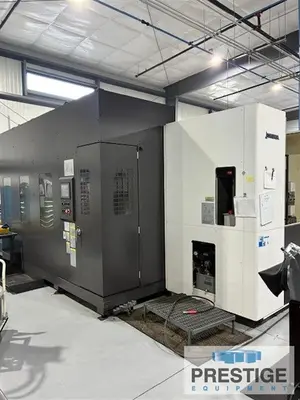

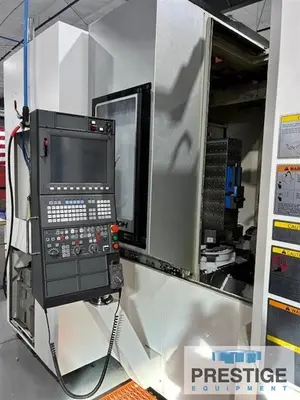

USED 2018 OKUMA MB-5000H

SPECIFICATIONS:
X-Axis Travel: 29.92"
Y-Axis Travel: 29.92"
Z-Axis Travel: 29.92"
Spindle Center To Pallet Top: 1.97"-31.89"
Spindle Nose To Pallet Center: 5.31"-35.23"

PALLETS:
Number of Pallets: 2
Pallet Size: 19.69" x 19.69"
Pallet Indexing (Full B-Axis): 0.001 Degree
Maximum Work Weight: 1,100 Lbs.

SPINDLE:
Spindle Speeds: 50-15,000 RPM
Spindle Taper: CAT 40 BIG Plus
Spindle Drive Motor: 35 HP / 25 HP

FEEDRATE:
Rapid Traverse, XYZ: 2362 IPM

TOOL CHANGER:
Tool Changer: 148 ATC
Max. Tool Dia With Adjacent Tool: 2.76"
Max. Tool Dia With No Adjacent: 5.91"
Max. Tool Length: 11.81"
Max. Tool Weight: 22 Lbs.

MACHINE SIZE:
Floor Space: 103" x 206"
Height: 116"
Approx. Weight: 29,300 Lbs.

Equipped With:
OSP-P300MA CNC Control w/ 15" Color Multi-Touch Color Display

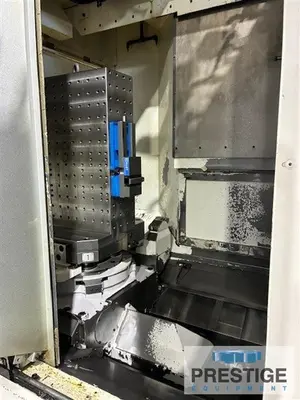

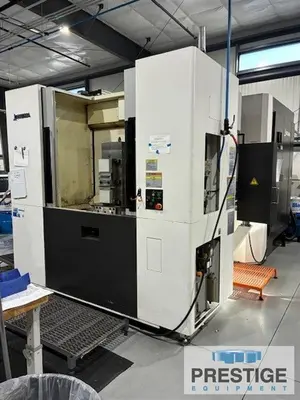

2-Station Automatic Rotary Pallet Changer
Full B-Axis Pallet Rotation
146-Position Automatic Tool Changer
Renishaw Tool Probing
Renishaw Auto Work Gauging
Coolant Thru Spindle
Thermal Active Stabilization on Casting and Spindle
Active & Passive Thermal Compensation
Shower Coolant
Tool Breakage Detection

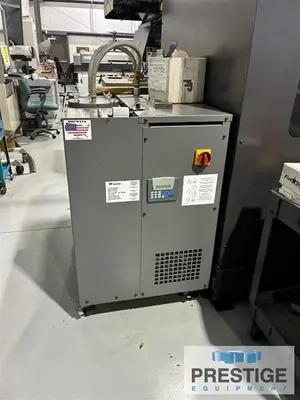

Spindle Chiller-Refrigerant Style
Air-Oil Lubrication System

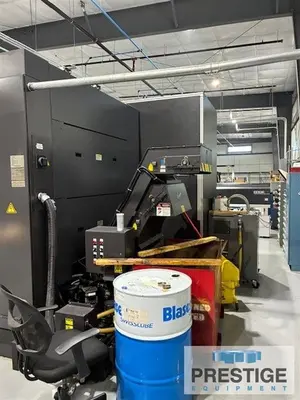

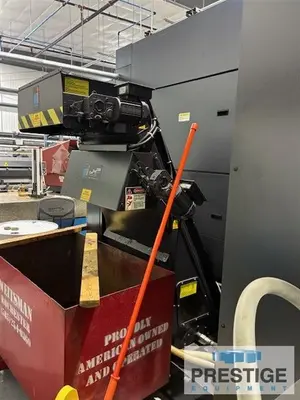

MayFran Concep 2000 Dual Belt Filtering Type Chip Conveyor

Features:
OSP-P300MA CNC Control w/ 15" Color Multi-Touch Color Display
2-Station Automatic Rotary Pallet Changer
Full B-Axis Pallet Rotation
146-Position Automatic Tool Changer
Renishaw Tool Probing
Renishaw Auto Work Gauging
Coolant Thru Spindle
MayFran Concep 2000 Dual Belt Filtering Type Chip Conveyor
