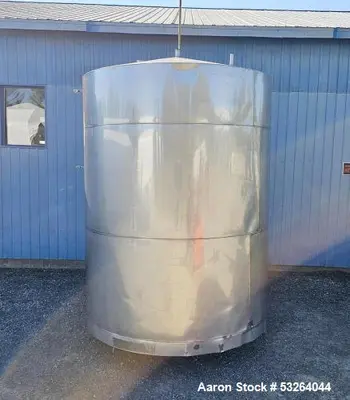

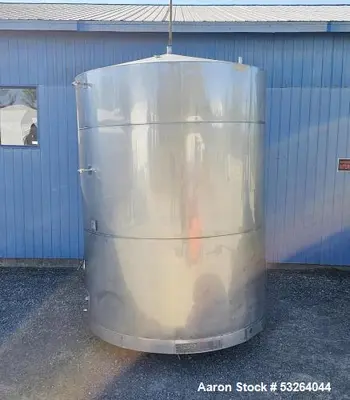

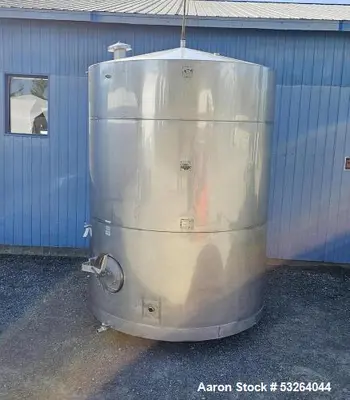

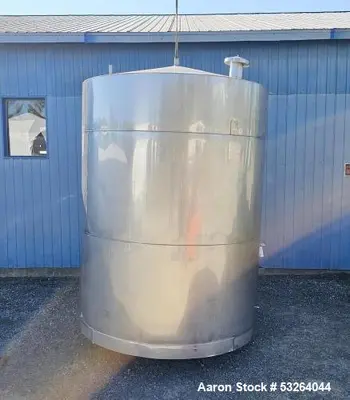

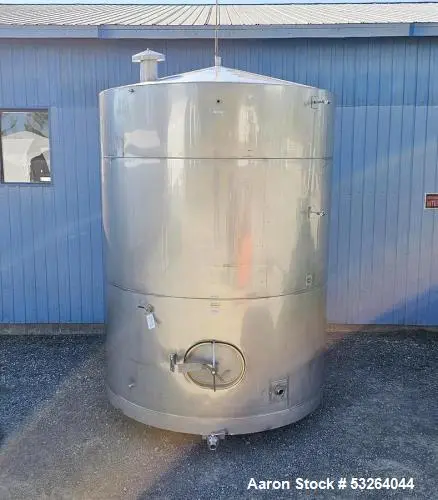

Used 3,400 Gallon Stainless Steel Tank – Sanitary Process Vessel with CIP & Tri-Clamp Connections

Used 3,400 Gallon Stainless Steel Tank Sanitary Process Vessel with CIP & Tri-Clamp Connections. Interior dimensions of 93 inches in diameter and a 117-inch straight side, plus a cone top. Sloped bottom leading to a 2-inch tri-clamp discharge equipped with a ball valve. Top includes multiple inlets: a 2-inch inlet with a ball CIP, a 2.5-inch tri-clamp inlet, and a non-threaded 1.5-inch inlet. Additional connections include top side ports with 3/4-inch male NPT and 3/4-inch female NPT fittings, as well as bottom side ports with 3/4-inch male NPT, 3/4-inch female NPT, and a 2-inch tri-clamp. The tank is also equipped with a top vent. Last used in a Cosmetics Application.

Used Equipment Facts About This Machine
Manufacturer: Not Specified
Type: Stainless Steel Process Tank / Storage Vessel
Condition: Used

Description
Used 3,400 Gallon Stainless Steel Tank, designed for sanitary storage and processing of liquids in food, beverage, pharmaceutical, and chemical applications. This vessel features a cone top and sloped bottom, allowing for efficient drainage and cleanability.
Equipped with a 2-inch tri-clamp bottom discharge with ball valve, this tank ensures controlled product removal. The system includes multiple top inlets, including a CIP (Clean-In-Place) ball system, making it ideal for hygienic operations.
Additional side ports and connections (NPT and tri-clamp) provide flexibility for instrumentation, recirculation, and process integration. A top vent allows for pressure equalization during filling and discharge.

Specifications

Type: Stainless Steel Tank / Process Vessel

Capacity: Approx. 3,400 gallons

Construction: Stainless steel

Dimensions

Diameter: 93 inches

Straight Side Height: 117 inches

Top: Cone top

Bottom: Sloped bottom

Discharge System

2-inch tri-clamp bottom discharge
Ball valve included

Top Features

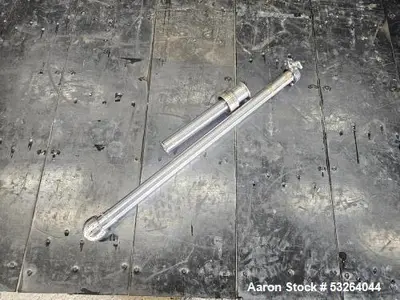

2-inch inlet with CIP spray ball
2.5-inch tri-clamp inlet
1.5-inch non-threaded inlet
Top vent

Side Ports & Connections

Top side:

3/4-inch male NPT
3/4-inch female NPT

Bottom side:

3/4-inch male NPT
3/4-inch female NPT
2-inch tri-clamp connection

Applications

Food and beverage storage
Liquid ingredient processing
Pharmaceutical liquid handling
Chemical storage and blending
CIP-enabled sanitary processing
Batch processing systems
Water and liquid storage
Fermentation or holding tanks
Nutraceutical processing
Industrial liquid storage

What might this be used for

Storing sanitary liquid products
Cleaning in place using CIP spray ball
Holding and transferring liquids
Integrating into process lines
Mixing or recirculating liquids
Supporting batch production
Handling food-grade ingredients
Managing process liquids safely
Connecting instrumentation via side ports
Draining efficiently with sloped bottom

Products this machine would be used for

Beverages
Water and liquids
Dairy products
Liquid food ingredients
Nutraceutical liquids
Chemical solutions
Pharmaceutical liquids
Cleaning solutions
Syrups and concentrates
Process fluids
