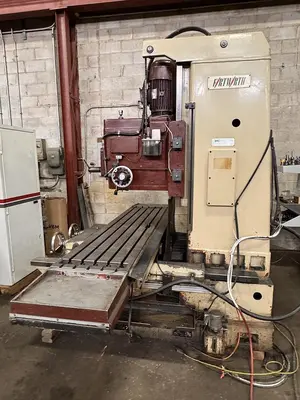

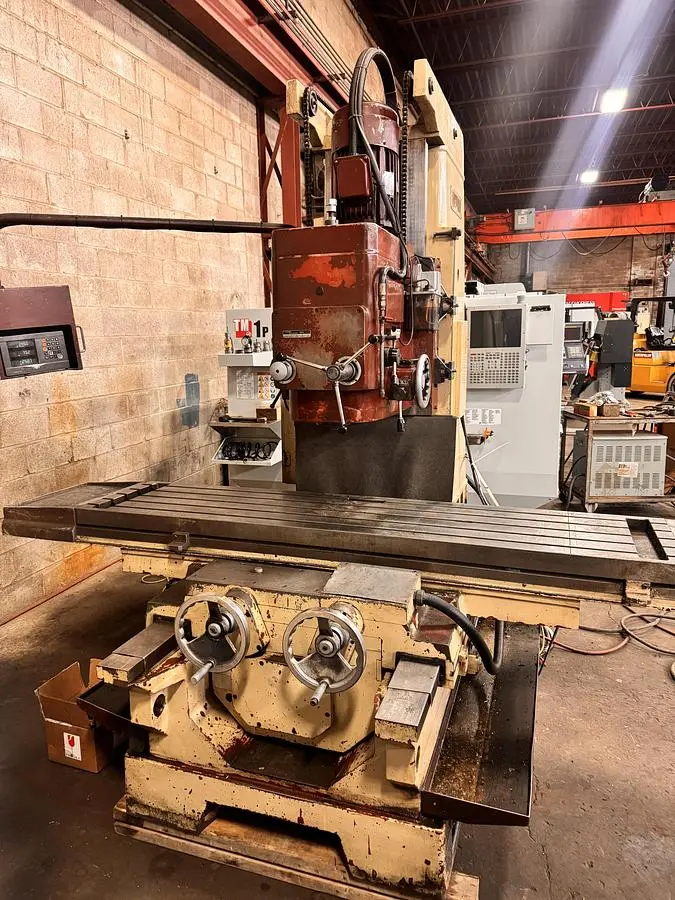

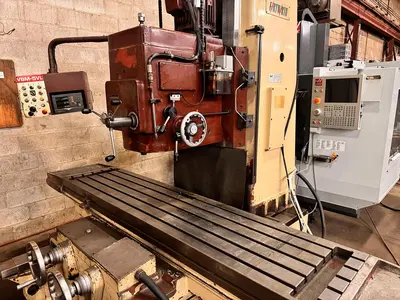

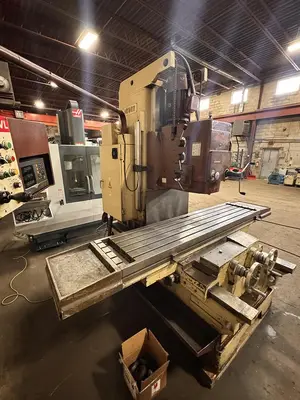

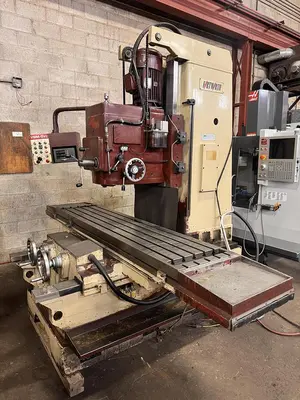

USED 2000 FORTWORTH VBM -5VL
Overview
Specs
YEAR: 2000
TABLE WIDTH: 19"
TABLE LENGTH: 86"
TABLE TRAVEL - LONGITUDINAL: 59'
TABLE TRAVEL - CROSS: 23"
SPINDLE TAPER: #50 TAPER
SPINDLE SPEED: 45-1500 RPM
MOTOR: 10 HP
ELECTRICS: 575V/3/60
APPROX. DIMENSIONS: 134"x 101"x 113"
APPROX. WEIGHT: 14 100 LBS
TABLE LOAD CAPACITY: 4120 LBS
SPINDLE NOSE TO TABLE: 4" TO 31 1/2"
Equipped With
3 AXIS HEIDENHAIN DRO
COOLANT PUMP
LUBRICATION
RAPID FEEDS
JOYSTICK CONTROL
The Fortworth VBM-5VL Bed Type Vertical Milling Machine is a robust manual mill, ideal for various industrial applications. This 2000 model features a spacious 19" x 86" table, allowing for extensive material handling with a 59" longitudinal and 23" cross travel. The machine operates with a powerful 10 HP motor and supports spindle speeds ranging from 45 to 1500 RPM, accommodating different milling requirements with a #50 taper spindle.
Equipped with a 3-axis Heidenhain DRO, this milling machine ensures precision and ease of operation. Additional features include a coolant pump, lubrication, rapid feeds, and joystick control, enhancing both performance and user convenience. With a spindle nose to table distance of 4" to 31 1/2" and a table load capacity of 4120 lbs, it caters to a diverse range of machining tasks.
This used milling machine presents an approximate weight of 14,100 lbs and dimensions of 134" x 101" x 113", suitable for sizable workshops. Operating on 575V/3/60 electricity, the Fortworth VBM-5VL provides reliable performance, making it a valuable addition to any milling operation seeking capacity and durability.
