USED 2007 Mazak Cybertech 4500M

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Spindle Torque: 3,320 ft-lbs

Type of Turret: Drum

Turning and Facing: 1.25" x 1.25" x 6"

Turret Index Time (sec): 0.4 sec/1 step

Spindle Center: MT#5

Maximum Spindle Thrust: 5,624 lbs

Body Travel Rapid Rate: 236 IPM

Bar Capacity: 10.2
B Axis: false
C Axis: false

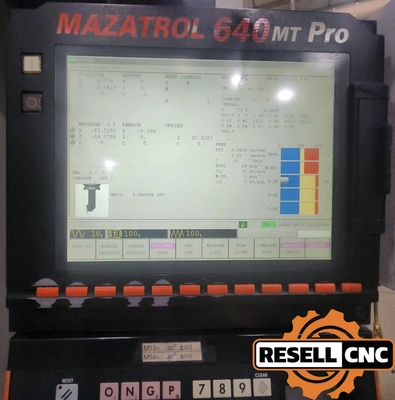

Control Make Model: Mazatrol 640MT Pro CNC Control
Distance Between Centers: 80.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Cutting Turning Diameter: 31.9
Max Swing Over Bed: 33.8
Max Swing Over Saddle: 27.5
Max Turning Cutting Length: 80.0
Programmable Tailstock: false
Rapid Traverse: 945/1181
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 10.2
Spindle Motor: 50
Spindle Nose: A1-15
Spindle Speed: 1600.0
Sub Spindle: false
Tailstock: false
Tool Positions: 12.0
Twin Turret: false
X Travel: 21.25
Y Axis: false
Z Travel: 80.0
