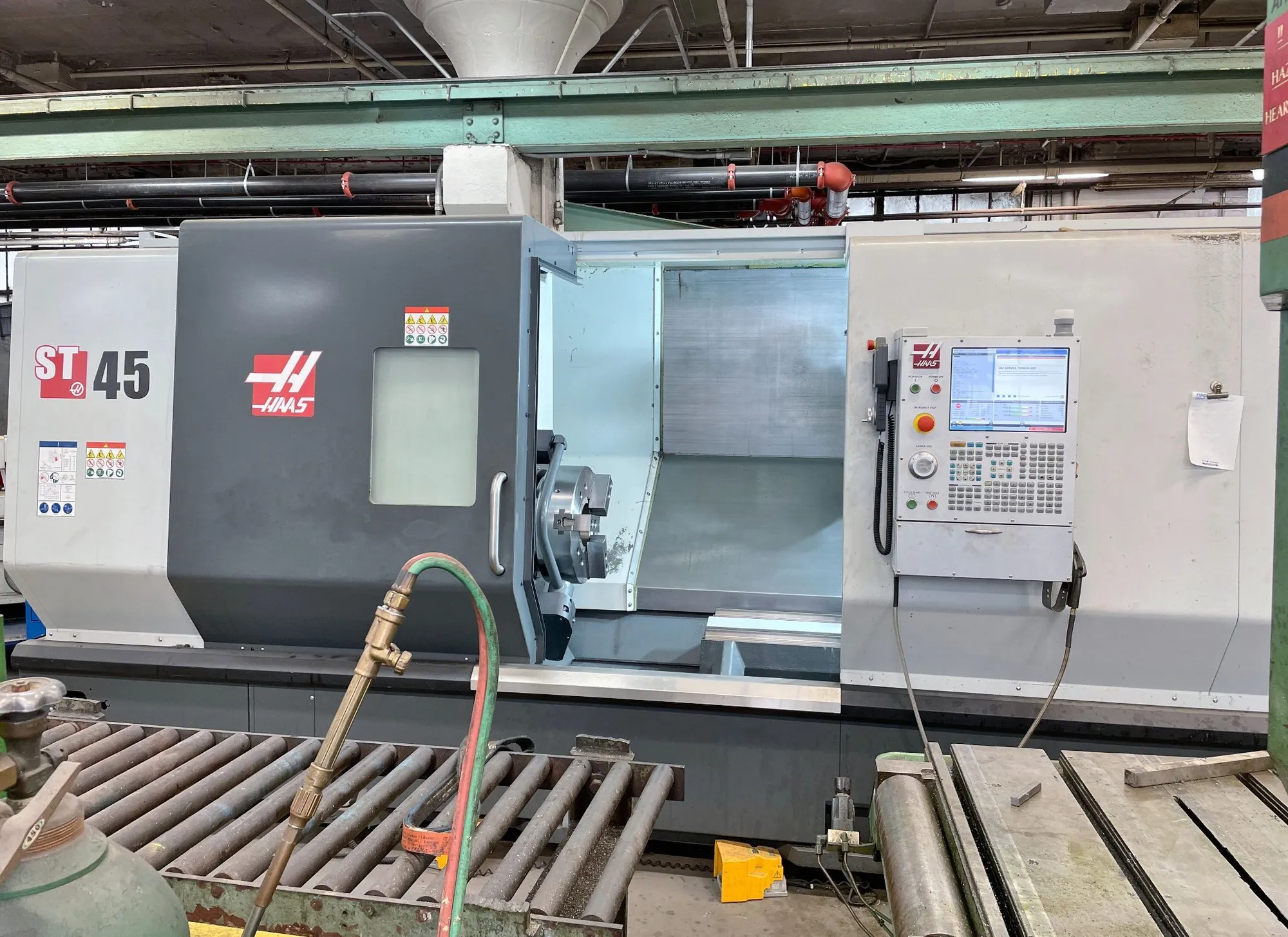

Haas NextGen Control, 2-Speed Gearbox, 18" Samchully chuck, 6.5" Bar Capacity, Programmable Tailstock, Tool Presetter, Chip Conveyor, 1,000 PSI High-Pressure Coolant, only 450 Cutting Hours. This 2023 Haas ST-45 CNC lathe is in plant, under power and available immediately.
| MAX SWING | 34.5" | 876.3 mm |
| MAX CUTTING DIAMETER | 25.5" | 647.7 mm |
| MAX CUTTING LENGTH | 44" | 1,117.6 mm |
| X-AXIS TRAVEL | 17" | 431.8 mm |
| Z-AXIS TRAVEL | 44" | 1,117.6 mm |
| CHUCK SIZE | 18" | 457.2 mm |
| BAR CAPACITY | 65" | 1,651 mm |
| SPINDLE BORE | 7" | 177.8 mm |
| SPINDLE NOSE | A2-11 | A2-11 |
| SPINDLE MOTOR | 40 hp | 29.8 kW |
| SPINDLE SPEED | 1,400 RPM | 1,400 RPM |
| RAPID TRAVERSE RATE X-AXIS | 710 in/min. | 1,803.4 cm/min. |
| RAPID TRAVERSE RATE Z-AXIS | 710 in/min. | 1,803.4 cm/min. |
| TURRET POSITIONS | 12 | 12 |
| TURRET TYPE | BOLT-ON | BOLT-ON |
| Dimensions | 230" x 100" x 90" | 230" x 100" x 90" |
| Weight | 28,000 LBS | 28,000 LBS |
HAAS NEXTGEN CONTROL
2-SPEED GEARBOX
18”, 3-JAW SAMCHULLY HYDRAULIC CHUCK (MH-218)
6.5” BAR CAPACITY
EXTENDED TOOL POCKET (UP TO 33”)
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
HIGH-PRESSURE COOLANT (1,000 PSI)
AUXILIARY COOLANT FILTRATION SYSTEM
CHIP TRAY FILTER KIT
REMOTE JOG HANDLE
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
WIFI CONNECTIVITY
** AS OF MARCH 2026, FEED CUTTING TIME – 465 HOURS
** MACHINE HAS BEEN UNDER-UTILIZED
** MACHINE CUT PRIMARILY CARBON STEEL
** FULL REPLACEMENT COST, AS EQUIPPED - $285,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
