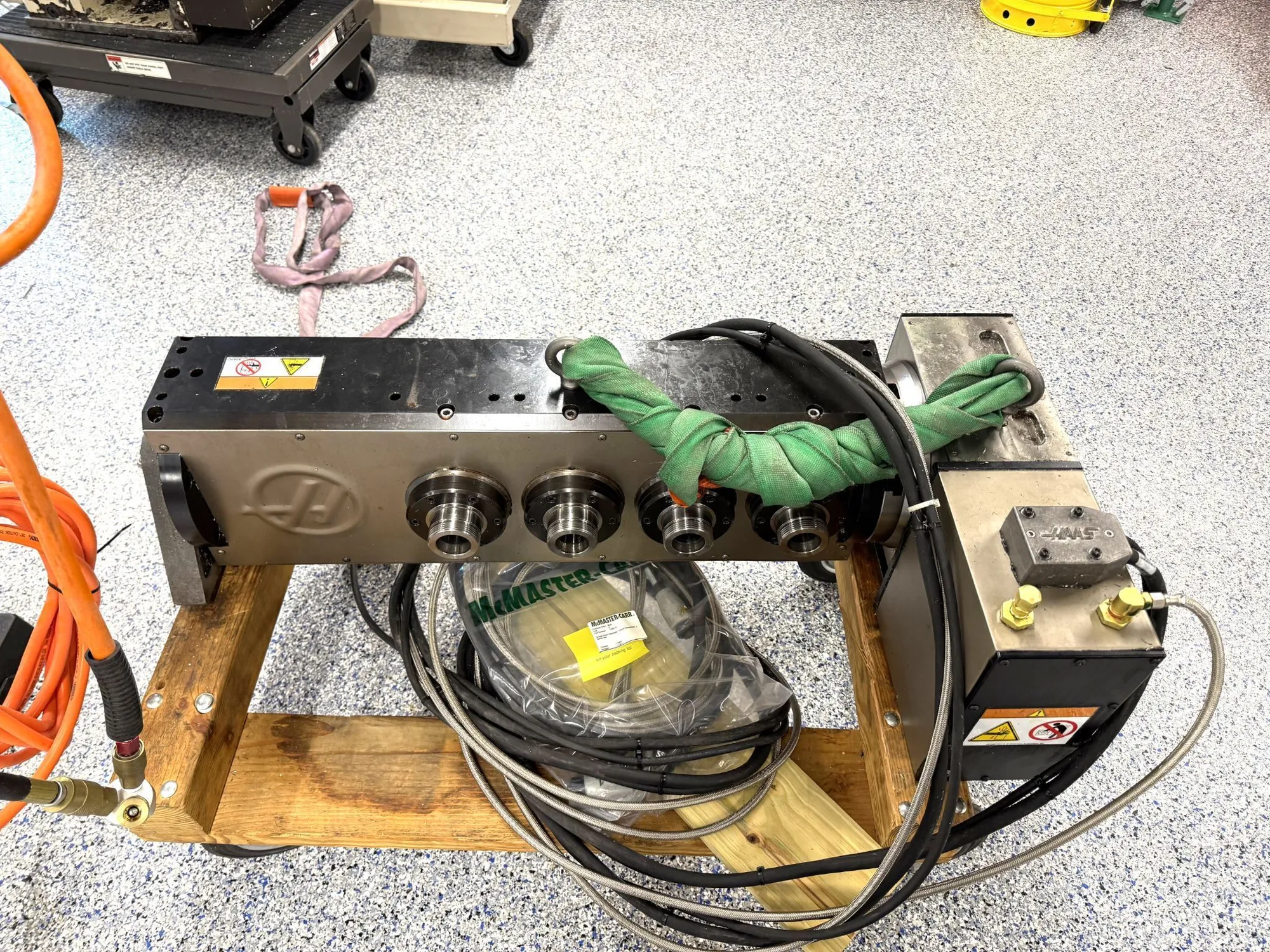

Only used in a medical R & D facility, this 2019 Haas T5C4 tilting 5C indexer is a 5-axis rotary unit with dual-axis tilting A-axis and rotary B-axis with four 5C collet rotary spindles. Equipped with full 5-axis machining or 3+2, it is ideal for high-volume production of small parts (especially cylindrical) like medical or dental components where quick collet clamping is more efficient than bolting to a platter.
| TABLE WIDTH | 5" | 127 mm |
| MAX WEIGHT ON PLATTER | 5 lb | 2.3 kg |
| CENTER HEIGHT | 6" | 152.4 mm |
| A-AXIS TILT INDEXING | ±120° | ±120° |
| A-AXIS TILT SPEED | 60°/sec | 60°/sec |
| B-AXIS INDEXING (ROTARY) | 999.999° | 999.999° |
| B-AXIS ROTARY SPEED | 200°/sec | 200°/sec |
| Dimensions | 47" x 24" x 19" | 47" x 24" x 19" |
| Weight | 620 lbs | 620 lbs |
FULL 5-AXIS MACHINING OR 3+2
(4) 5C COLLET SPINDLES
** ONLY INSTALLED IN 2019 HAAS VF-2SS WITH 4,479 FEED CUTTING HOURS
** VF-2SS WAS CUTTING PRIMARILY ALUMINUM FOR MEDICAL R&D COMPANY
** REPLACEMENT PRICE NEW AS EQUIPPED: $61,795
** READY FOR IMMEDIATE INSPECTION & PURCHASE
