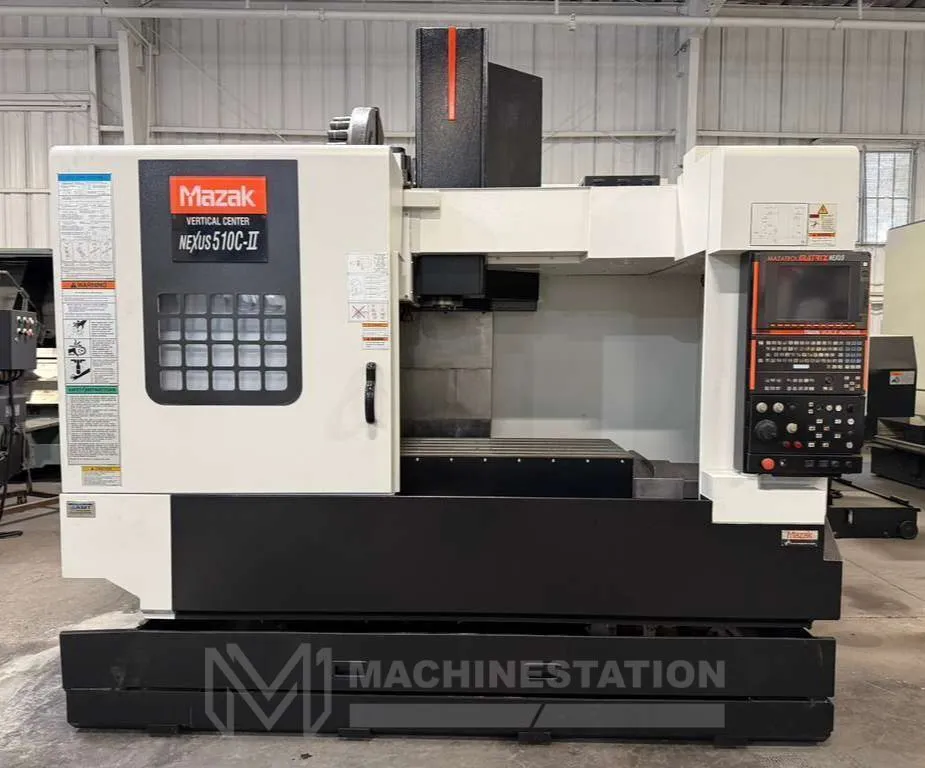

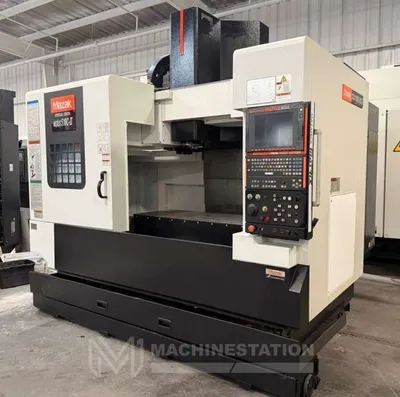

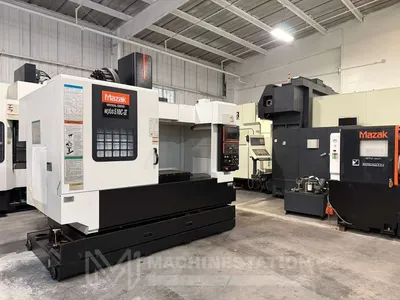

USED 2006 MAZAK VCN 510C-II
Overview
Specifications
| X Axis | 41.3" | 1,049 mm |
|---|---|---|
| Y Axis | 20.8" | 528.32 mm |
| Z Axis | 20.8" | 528.32 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 21.65" | 549.91 mm |
| Table-L | 51.18" | 1,300 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mazatrol Matrix Nexus CNC Control) | CNC (Mazatrol Matrix Nexus CNC Control) |
| Dimensions | 120″ x 112″ x 114″ High | 120″ x 112″ x 114″ High |
| Weight | 15,200 lbs | 15,200 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

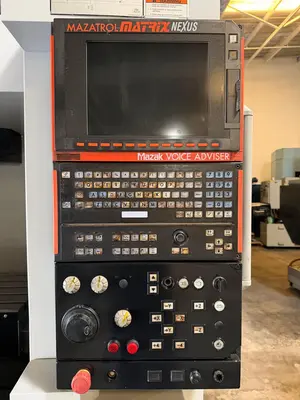

Mazatrol Matrix Nexus CNC Control
CAT-40 Taper Spindle
25 HP High Torque Spindle
Automatic Lubrication System
Coolant System
Travels:
X-Axis: 41.3″
Y-Axis: 20.8″
Z-Axis: 20.8″
Rapid Traverse Rates Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26″
Table:
Length: 51.18″
Width: 21.65″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2646 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Type: Direct Drive
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 13.78 lbs
Max Tool Dia: 3.15″
Max Tool Length: 13.78″
Tool Changing Time : 1.3 Seconds
General:
Air Required: 80 psi, 4 scfm

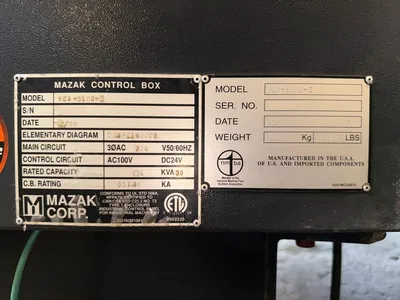

Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 120″ x 112″ x 114″ High
Weight: 15,200 lbs
Equipped With
12,000 RPM High Speed Spindle
30 Station Automatic tool changer
Rigid Tapping
