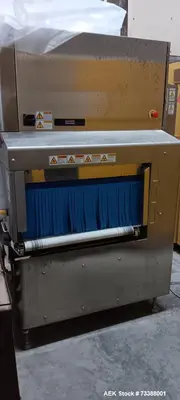

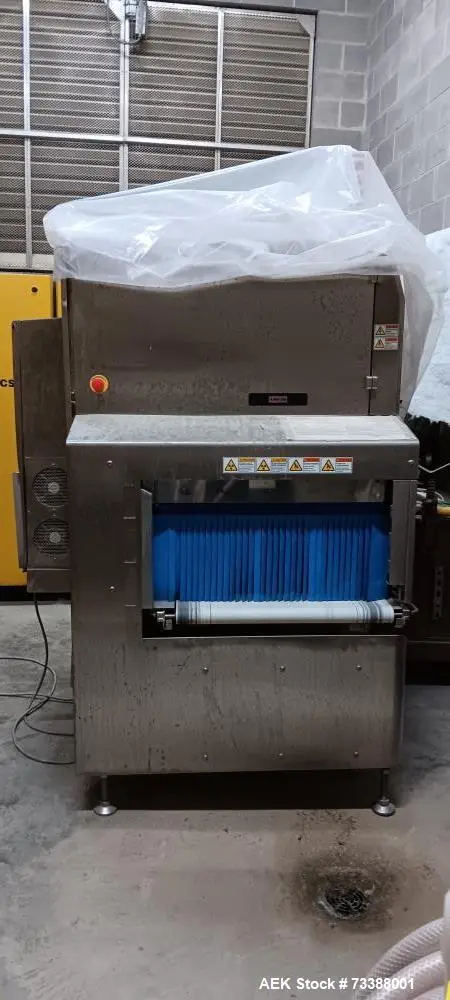

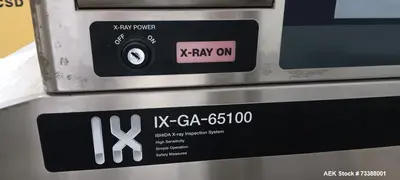

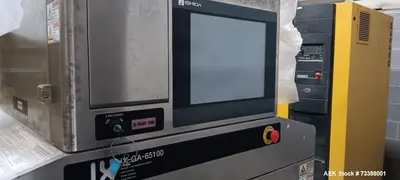

USED ISHIDA IX-GA-65100

Description
The Used Ishida IX-GA-65100 X-Ray Inspection System is a reliable, high-performance solution for detecting foreign objects and ensuring product quality in food processing operations. Capable of speeds ranging from 5 to 30 meters per minute, this system is designed to handle products weighing up to 25 kg across the entire conveyor. The unit features a hermetical air cooling system and an FDA-approved urethane belting conveyor for safe food contact. With an inspection chamber capable of handling products up to 1000mm in length, 650mm in width, and 270mm in height, it offers comprehensive inspection capabilities.
This system operates in ambient temperatures from 0°C to 40°C, with humidity levels ranging from 30% to 85% RH (without condensation). It is equipped with a maximum 350W X-ray output, providing precise inspection for a variety of applications, especially in the food industry.
Specifications

Model: IX-GA-65100

Speed Range: 5 - 30 meters per minute

Conveying Product Weight: Up to 25 kg (over entire conveyor)

Inspection Chamber Dimensions:

Length: 700 - 1000mm
Width: Up to 650mm
Height: Up to 270mm

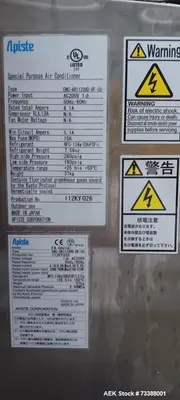

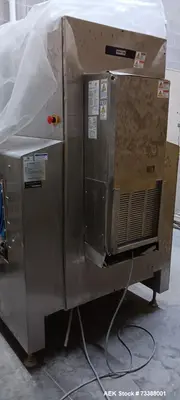

Cooling Method: Hermetical air cooling

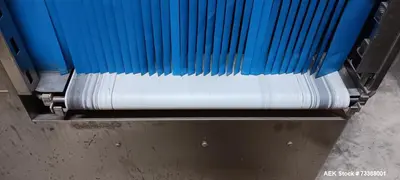

Conveyor Belt: FDA-approved urethane belting

Operating Temperature: 0°C – 40°C (no freezing or rapid temperature shifts)

Operating Humidity: 30% – 85% RH (no condensation)

X-ray Output: Max 350W

Power Requirements: 230V, single-phase, 12.0 AMP

Applications
This X-ray inspection system is ideal for ensuring quality control and detecting foreign objects in a variety of industries:

Food processing and packaging
Pharmaceutical manufacturing
Industrial product quality inspection
Bakery and confectionery production
Meat and poultry processing

What Products Would This Be Used For?

Packaged foods (snacks, baked goods, frozen meals)
Meats and poultry
Dairy products
Confectionery items
Bottled or canned products
Pharmaceutical tablets and capsules
