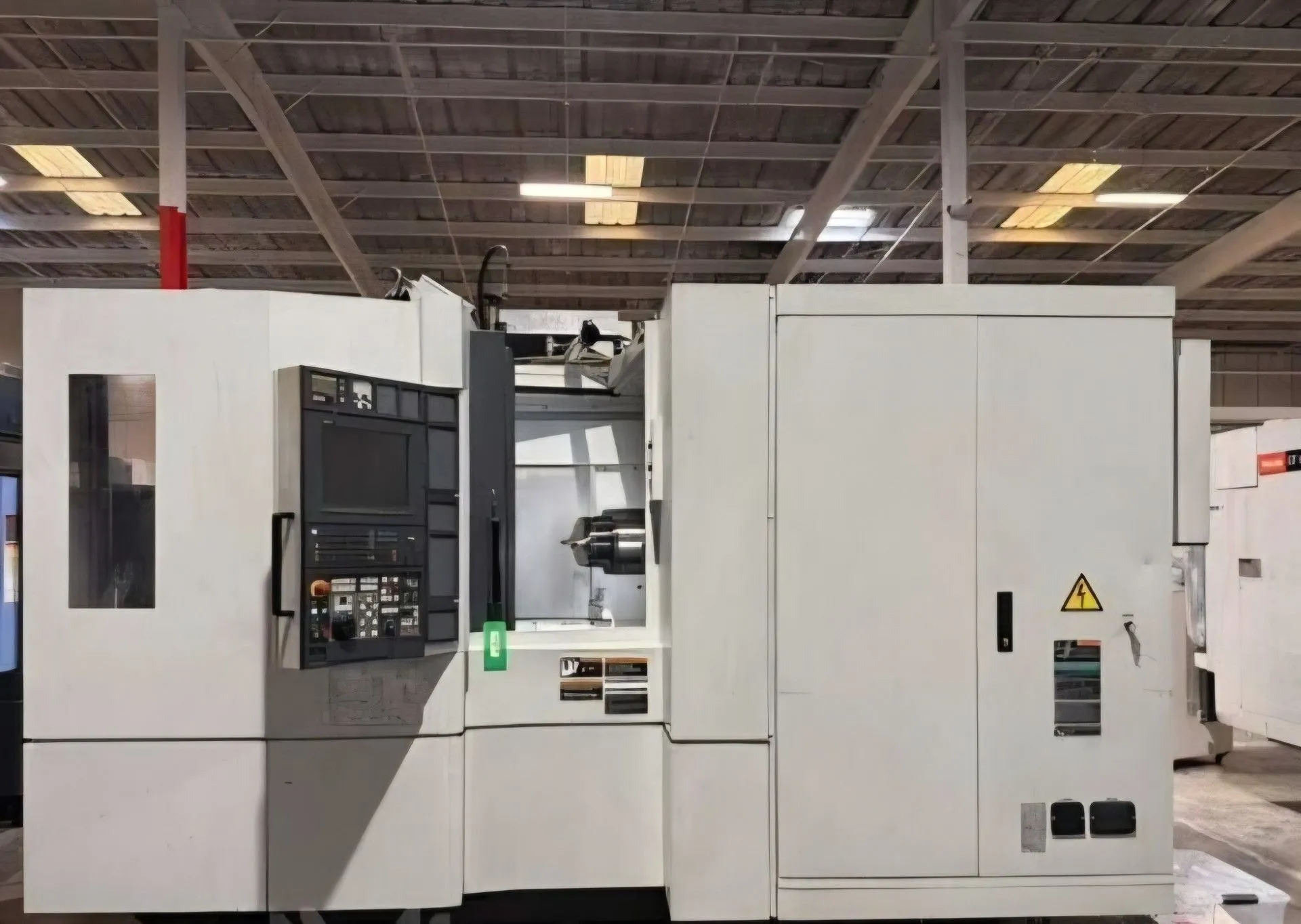

USED 2008 MORI SEIKI NH4000 DCG

Mori Seiki NH-4000DCG CNC Horizontal Machining Center
New 2008
Tsudakoma Rotary Table, Chip Conveyor, Through Spindle Coolant

Features:
Mori Seiki MSX-701III (Fanuc) CNC Control
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Fast Rapid Traverse Rate
Coolant System

Travels:
X Axis: 22.0″
Y Axis: 22.0″
Z Axis: 24.8″
Distance From Pallet Surface to Spindle Center: 3.1″ – 25.2″

Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 880 lbs
Max Workpiece Swing Diameter: 24.8″
Max Workpiece Height: 35.4″
Index Time: 8 seconds 90°

Spindle:
Taper Size: 40
Max. Speed: 14,000 RPM
Spidle Motor Power: 30 HP

Feed rates:
Rapid Traverse Rate X,Y,Z Axis : 1968 Inch Per Minute
Cutting Feedrate X,Y,Z Axis : 1968 Inch Per Minute

Tool changer:
Capacity: 60 Tools
Max Tool Diameter (without adjacent tools): 5.11″
Max Tool Diameter (with adjacent tools): 2.70″
Max Tool Length: 15.7″
Max Tool Weight: 17.6 lbs.
Tool to Tool Change Time: 0.9 Second

General:
Air Required: 90 psi, 4 scfm
Power: 40 kva / 220v / 3-Phase
Overall Dimensions: 157.6″ X 94.4″ x 106.7″ High
Weight: 21,605 lbs. Approx.

Mori Seiki MSX-701III (Fanuc) CNC Control
Chip Conveyor
Tool Setter
Spindle Chiller
Through Spindle Coolant
Tsudakoma RBA-250K Rotary Table
Tombstone
Books & Manuals
