17 Years in business! 520 ALL DAY SPECIAL at $269,520, ONE - Discounted NL5000XLM Machine available, Subject to Prior Sale. FOB: Illinois. Smart Machine Tool North American HQ, Parts and Showroom are located in Pewaukee, WI. 10 Guys in our 520 Service Department out of Schaumburg, IL. How can I help!

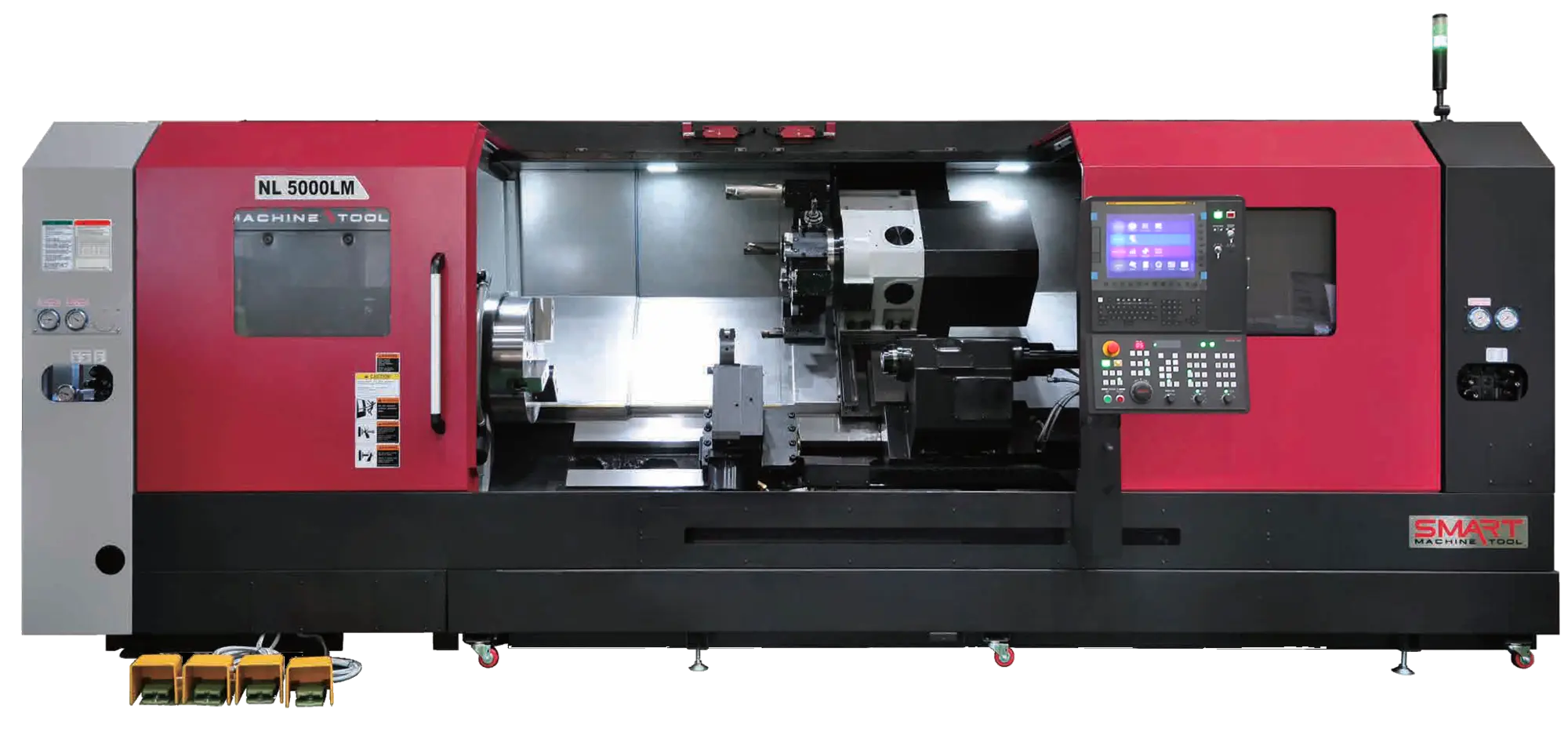

SMART BOX WAY 21" CHUCK, A2-15 Spindle, Programmable Tailstock, Live Tooling, 35" Swing and 122" Centers.
| Chuck Size | 21" | 533.4 mm |
| Swing | 35.43" | 899.92 mm |
| Machining Length | 122.8" | 3,119.1 mm |
| Bar Capacity | 6.52" | 165.61 mm |
| Live Tooling | Yes | Yes |
| Y-Axis Milling | No | No |
| Sub Spindle | No | No |
| # of Turrets | 1 | 1 |
| Turning Dia | 25.59" | 649.99 mm |
| Power | 4,060 hp | 3,027.5 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc Oi-TF Plus) | CNC (Fanuc Oi-TF Plus) |
| Dimensions | 265" x 90" | 265" x 90" |
| Weight | 37,358lbs. | 37,358lbs. |
Tool Presetter
Oil Skimmer
Programmable Tailstock
Built-in Tailstock Bearings MT-5
Manual Guide i
(1) X Live Tool Holder
(1) Z Live Tool Holder
