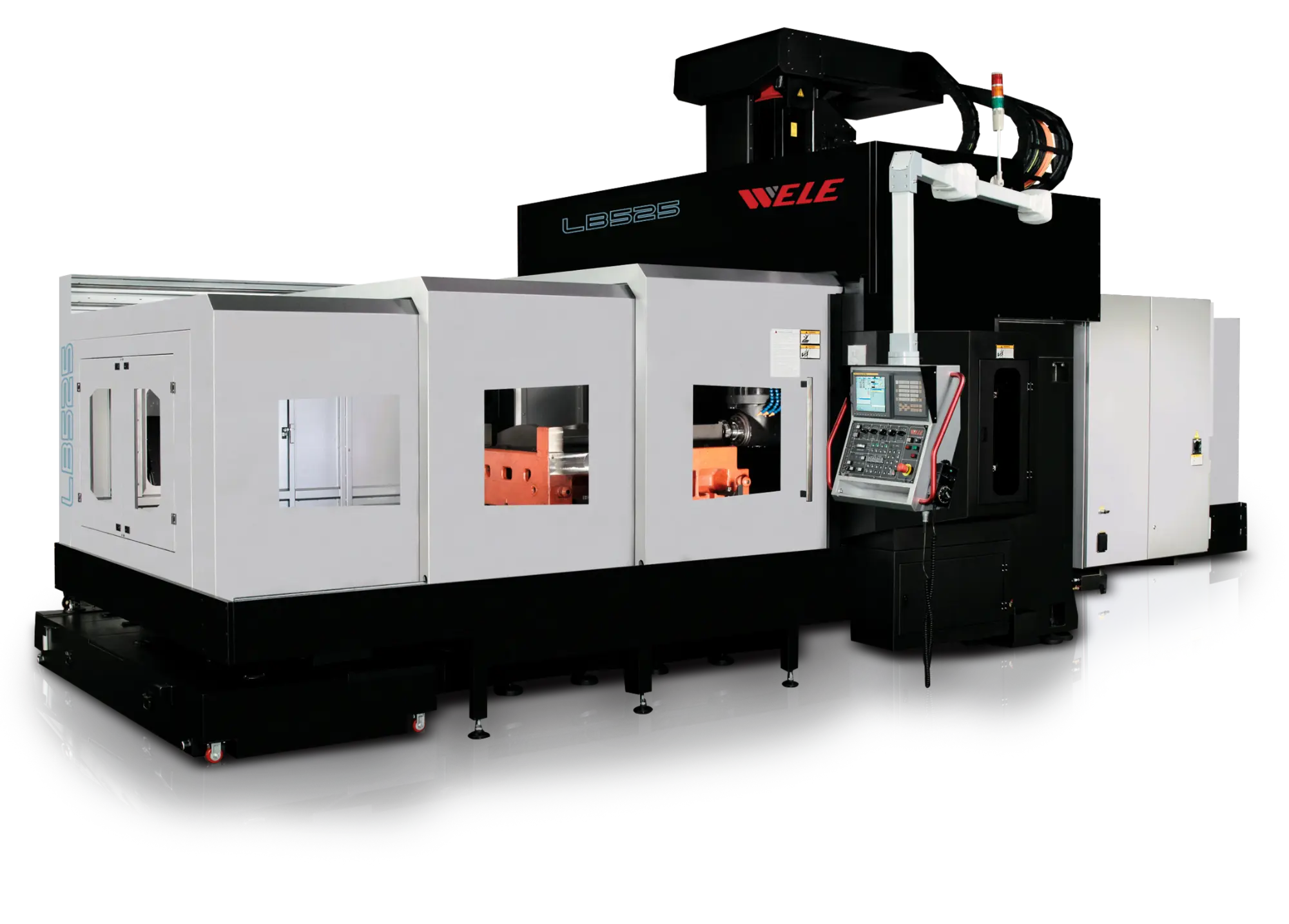

LB525YM 5 Face Double Column Vertical Machining Center with Fanuc 31iMB CNC
Standard Features:
CT50 Spindle, 6,000 RPM 30/35 hp 2 Speed Geared Head (626.2 Nm 461 ft-lb Torque) Standard
Standard Hinge Belt Conveyor (47" Discharge Height), Coolant Tank, Flood Pump
Big Plus Spindle Taper
Bell Shaped Acc/Dec control
Machine Condition Selection Function (Selection 1-10 of High Speed Precision Settings)
High Speed Machining Package - AICCII with 1000 Block Look Ahead
| Taper | CAT50 (BIG PLUS) | CAT50 (BIG PLUS) |
| X Travel | 99.2" | 2,519.7 mm |
| Y Travel | 125.9" | 3,197.9 mm |
| Z Travel | 31.4" | 797.56 mm |
| Table-L | 196.8" | 4,998.7 mm |
| Table-W | 94.5" | 2,400.3 mm |
| Power | 3,035 hp | 2,263.2 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 32 | 32 |
| Control | CNC (fanuc 31iMB) | CNC (fanuc 31iMB) |
| Dimensions | 504.5"x270.2"x236" | 504.5"x270.2"x236" |
| Weight | 97900 LBS | 97900 LBS |
