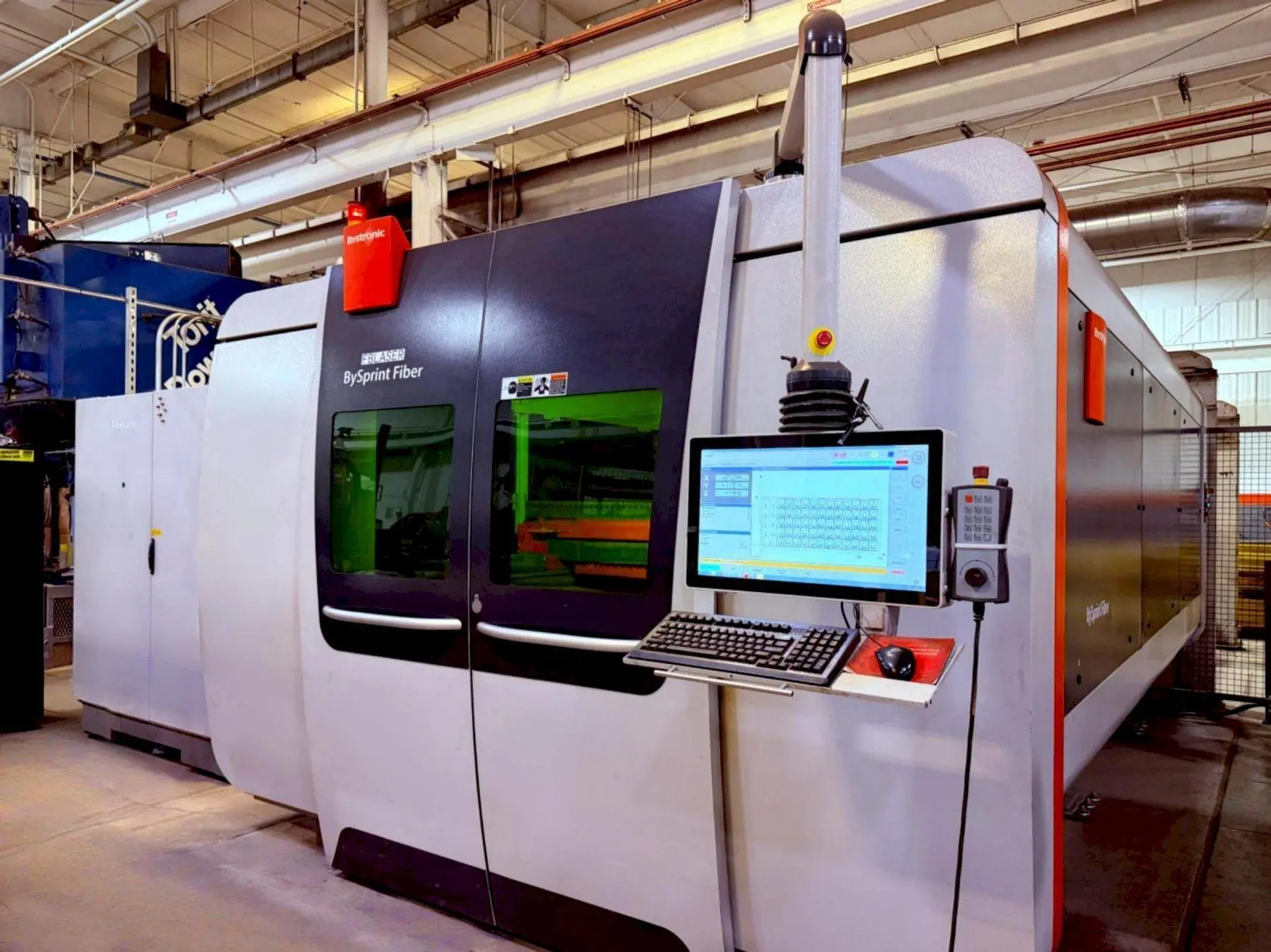

USED 2016 BYSTRONIC BYSPRINT FIBER 3015
Overview
Specifications
| Sheet-W | 60" | 1,524 mm |
|---|---|---|
| Sheet-L | 120" | 3,048 mm |
| Wattage | 6000 w | 6,000 W |
| IPM | 5500 ipm | |
| X | 120" | 3,048 mm |
| Y | 60" | 1,524 mm |
| Z | 2.75" | 69.85 mm |
Brand: BYSTRONIC
Model: BySprint Fiber 3015
Type: Laser Cutters
Condition: Very Good
Year: 2016
Control: ByVision Touchscreen
Laser Type: Fiber
Resonator: Fiber 6000
Power Output: 6,000 Watt
Max. Sheet Size: 5’ x 10’
Travels X-Axis: 120"
Travels Y-Axis: 60"
Travels Z-Axis: 2.75"
Max Workpiece Weight: 1,653 Lbs.
Max Speed: 5,511 IPM
Positioning Accuracy Pa: ± .0039”
Repeatability Ps: ± .0019”
Edge Detection Accuracy: ± .0196”
Table Access: Front
Max Cut Steel: .98”
Max Cut Stainless Steel: .98”
Max Cut Aluminum: .98”
Rated Voltage: 480 V
Machine Dimensions: L 433.8″ x W. 238.8″ x H 98”
Machine Weight: 26,455 Lbs.
Equipped With
Byvision Control w/ 15″ Touch Screen
Fiber 6000 Power Source (6kW)
Auto Nozzle Cleaning
High-Speed Cutting Capabilities
Dual Pallet Tables
Chiller UnitAll
Available Manuals and Spare Parts
TERMS:
Location Chicago, IL - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
