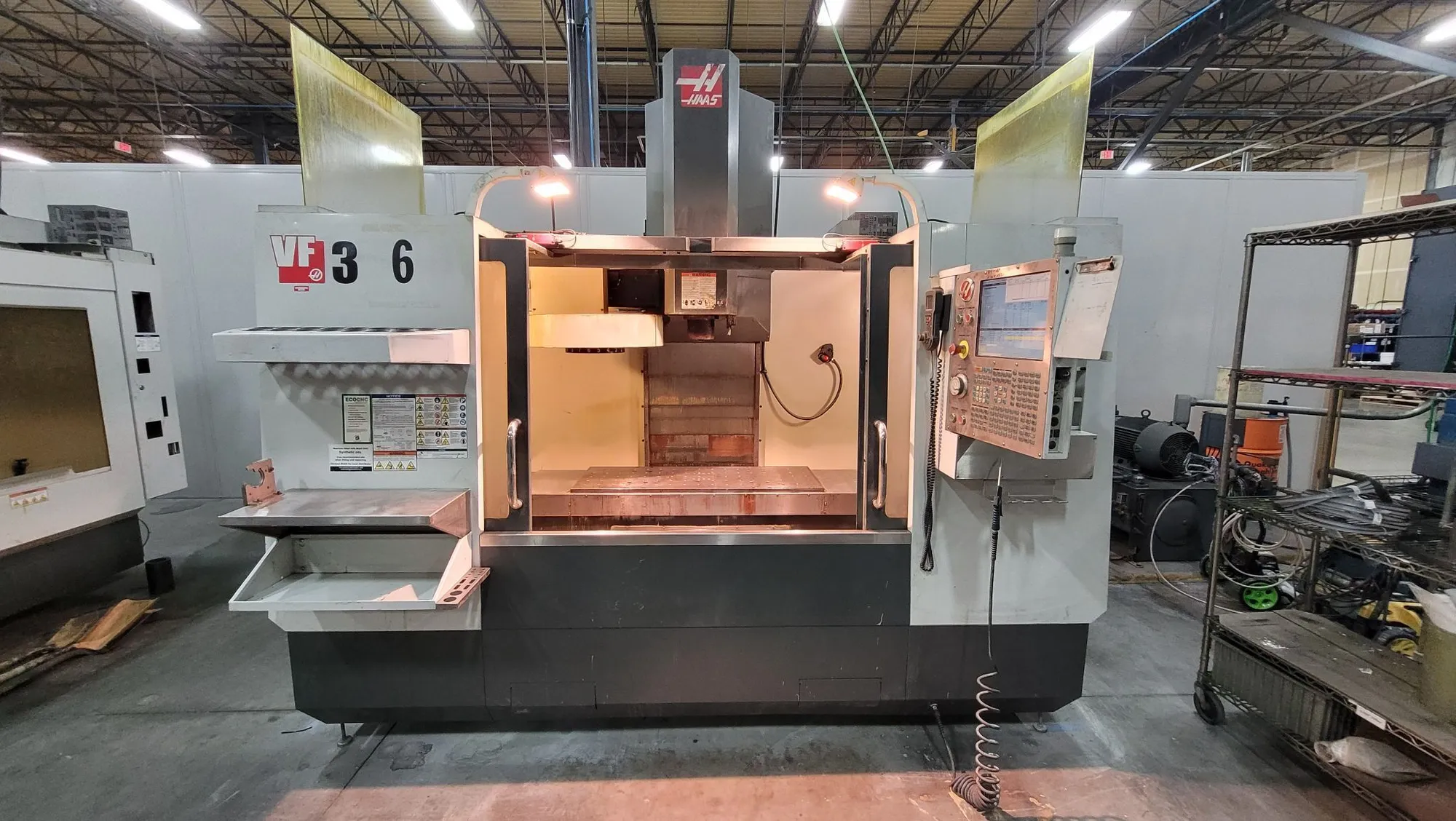

2011 HAAS VF-3 Vertical Machining Center for sale. Features a 40"x20"x25" XYZ travel, 30 HP, max 8100 RPM, 20-tool ATC, and CT/BT 40 taper. Table size is 18"x48", equipped with 3-axis capability. Excellent for precision projects.
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 21 | 21 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 48" | 1,219.2 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
Table Size: 48″ x 18″
Maximum table load capacity: 3,500 lbs
X Axis: 40″
Y Axis: 20″
Z Axis: 25″
Spindle Taper: CAT 40
Spindle Speed: 7,500 RPM
Spindle Motor: 20 HP
ATC: 20+1
Haas CNC Control
Rigid Tap
Jog Pendant
Extra Z Axis Clearance (25" z height from top to bottom when jogging)
Programmable Coolant
