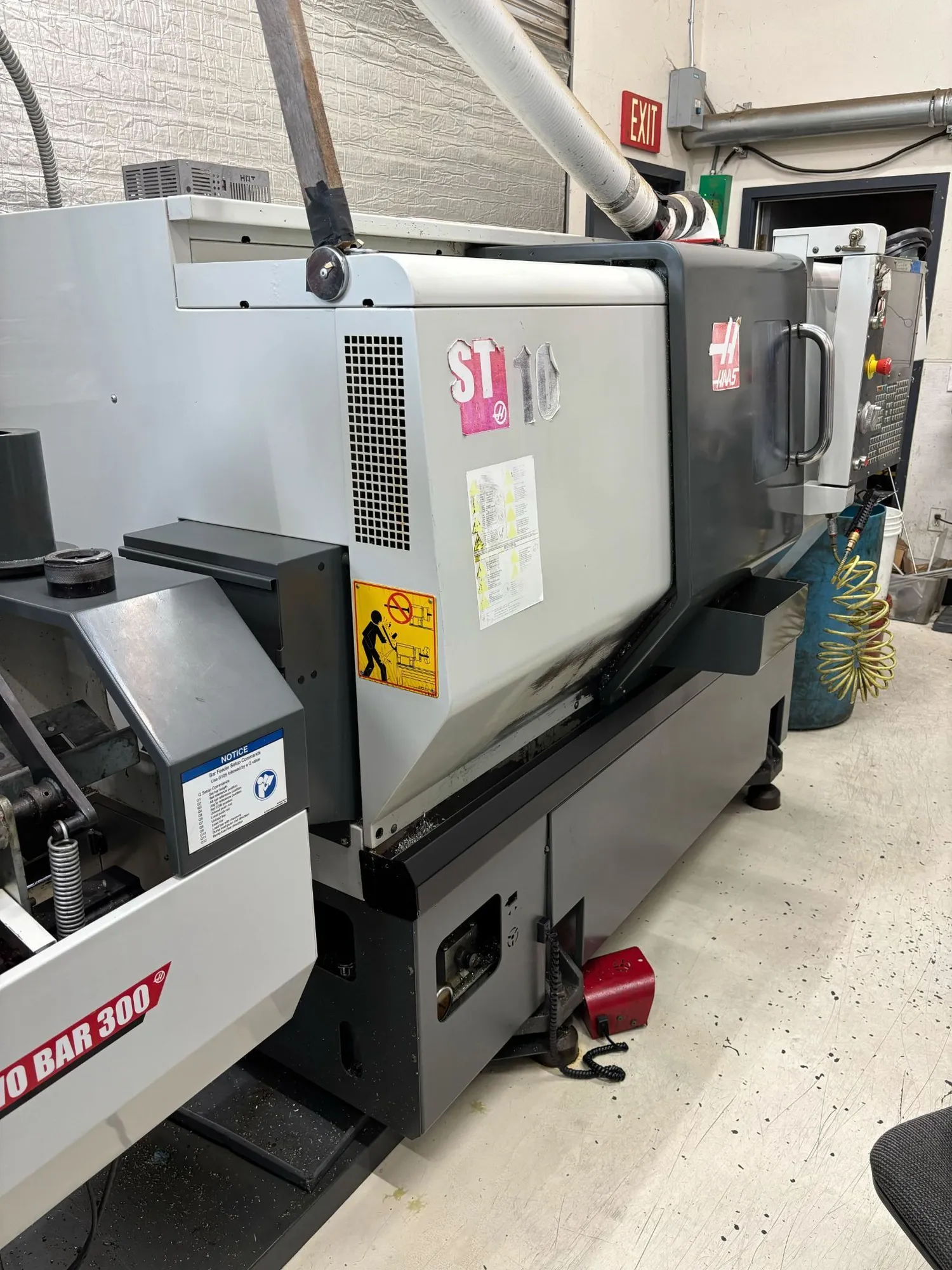

For sale: 2012 HAAS ST-10 CNC Lathe, used. Features include 25.25" swing, 16.5" machining length, and 6.5" chuck size. Bar capacity of 1.75", 15.0 power, up to 6000 RPM, and 14.0" turning diameter. Tailstock not included.
| Swing | 25.25" | 641.35 mm |
| Machining Length | 16.5" | 419.1 mm |
| Chuck Size | 6.5" | 165.1 mm |
| Bar Capacity | 1.75" | 44.45 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 14" | 355.6 mm |
| Tailstock | No | No |
Bar Capacity: 1.75"
Max Turning Diameter: 14"
Max Turning Length: 16"
Max Swing: 25.25"
X Axis Travel: 7.88"
Z Axis Travel: 16"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Turret: 12 Stations
Turret Type: BOT
Haas CNC Control
Parts Catcher
Bar Feeder
Chip Conveyor
