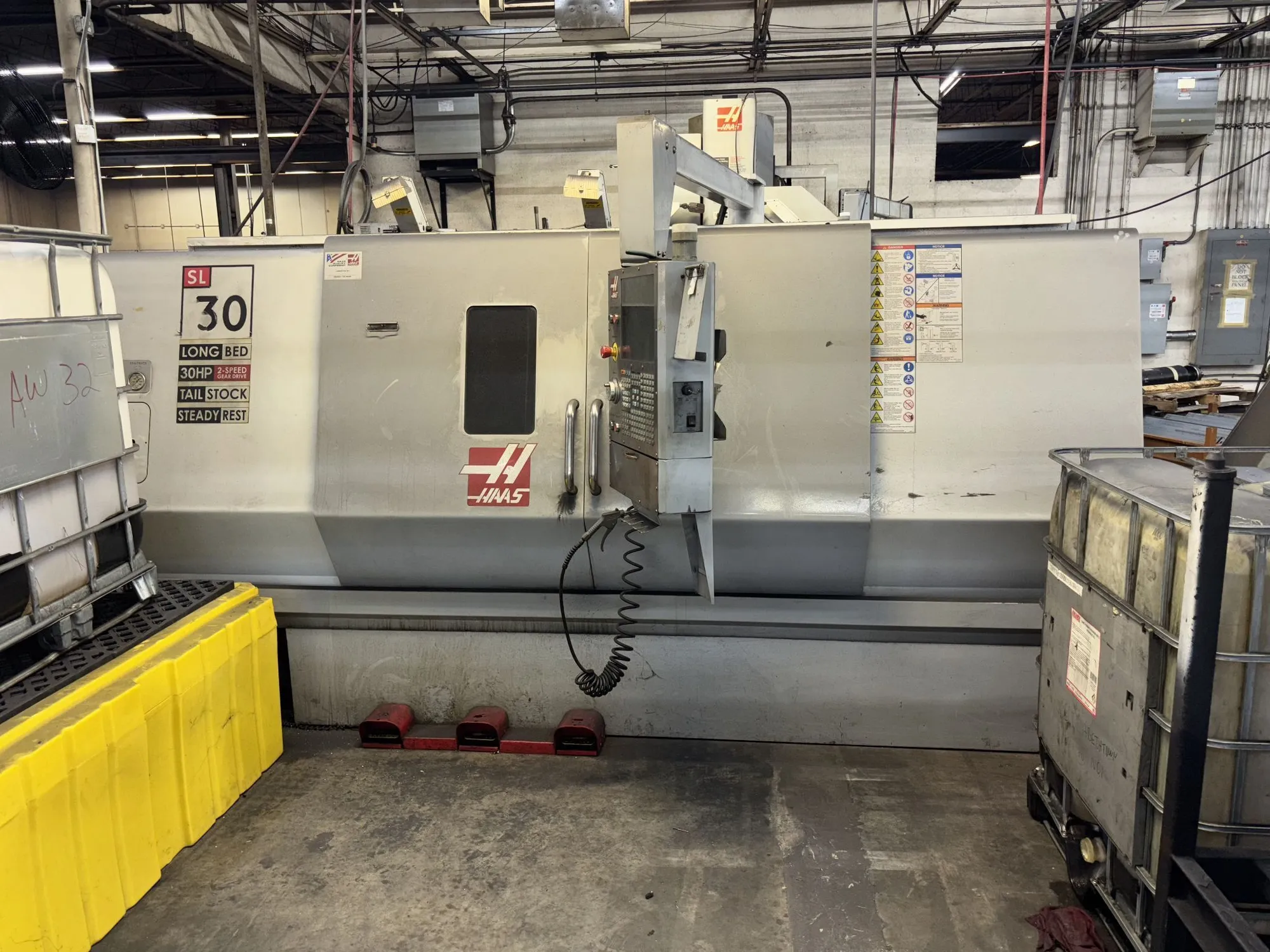

2009 HAAS SL-30L CNC Lathe available. Features a 30" swing, 60" machining length, 10" chuck, 3" bar capacity, and a max RPM of 3400. Tailstock included. Ideal for precision machining needs.
| Swing | 30" | 762 mm |
| Machining Length | 60" | 1,524 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 17" | 431.8 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
Spindle Bore: 3.50"
Spindle Nose: A2-6
X-Axis: 9.4"
Z-Axis: 62.5"
Tool Capacity: 12
Max. Turning Diameter: 17"
Max. Turning Length: 62.5"
Max. Swing: 30"
Haas CNC Control
Steady Rest
Tailstock
Chip Conveyor
