USED GORING KERR DSP3/3-PSU

🏭 Manufacturer Information

Manufacturer: Thermo Goring Kerr

Model: DSP3/3-PSU

Application History: Food product inspection

Power Requirements: 120/230 VAC, 50/60 Hz

Frame Material: Stainless steel head and primary frame; carbon steel extension frame

Sanitary Design: Yes – washdown capable

📄 Description

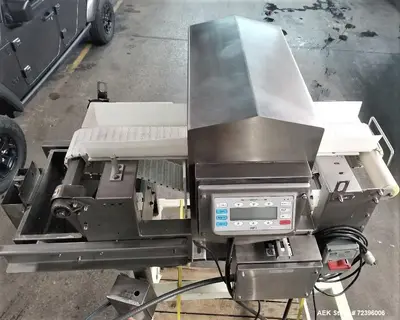

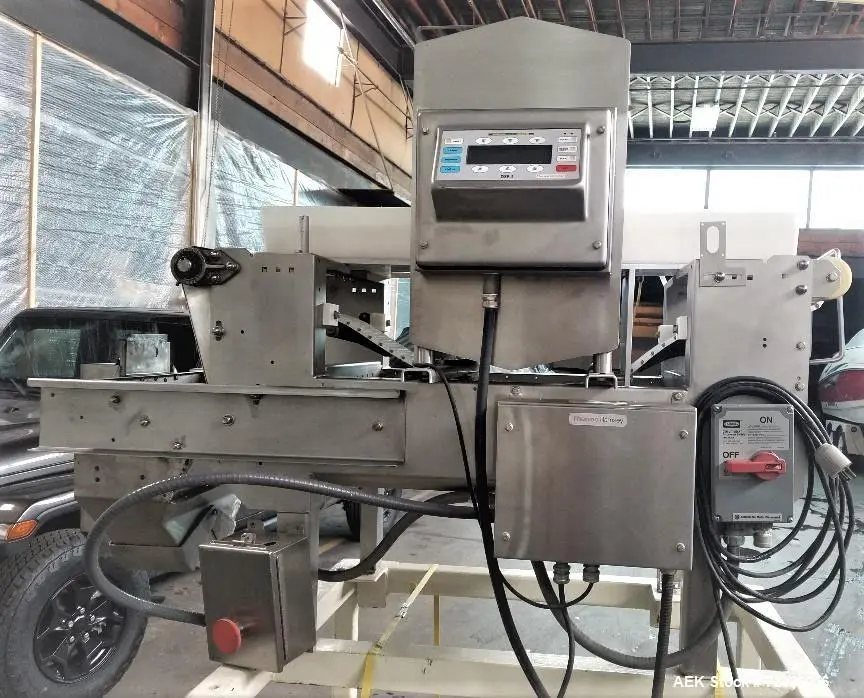

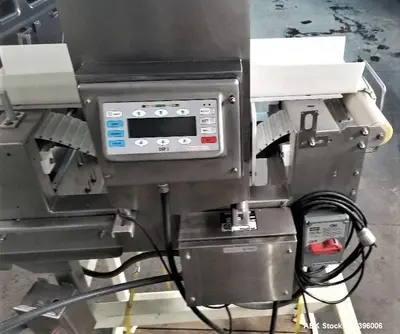

The Used Thermo Goring Kerr DSP3/3-PSU Metal Detector is a food-grade, stainless steel metal detection system engineered for accurate and reliable contaminant detection in hygienic processing environments. Featuring a 7.5" wide x 7" high aperture and a 6" wide white Intralox conveyor belt, this unit is designed to inspect mid-sized packaged or bulk food products with 6.5" clearance height.
This system includes an air blast reject mechanism for precise rejection of contaminated products without interrupting production. It also offers versatile installation with a removable hopper extension that adjusts the system's total footprint. Built for washdown environments, this system features a robust stainless steel head and frame, making it suitable for a wide range of food inspection applications.

⚙️ Specifications

Model: DSP3/3-PSU

Aperture Opening: 7.5" wide x 7" high

Product Clearance Height: 6.5"

Conveyor Belt:

Type: White Intralox belting

Width: 6 inches

Construction:

Stainless steel head and main frame

Carbon steel extension frame

Reject System: Air blast reject

Power Requirements: 120/230 VAC, 50/60 Hz

Overall Dimensions:

With hopper: 34" W x 64" L x 82" H

Without hopper: 32" W x 61" L x 45" H

Application History: Food industry

🧴 Typical Applications

Packaged food metal detection

Bakery product inspection

Frozen or chilled food scanning

Meat and poultry product QA

Bulk food ingredient safety screening

Snack foods or confectionery QA lines

Nutritional and RTE (ready-to-eat) food inspection

📦 Products This Machine Is Ideal For

Bagged and boxed dry goods

Pouched sauces or gravies

Wrapped cheese blocks or slices

Frozen meals or entrees

Raw meat portions or poultry

Baked goods and confectionery

Nutraceutical powders or meal kits

Granola bars or snack packs

Bulk food totes or trays
