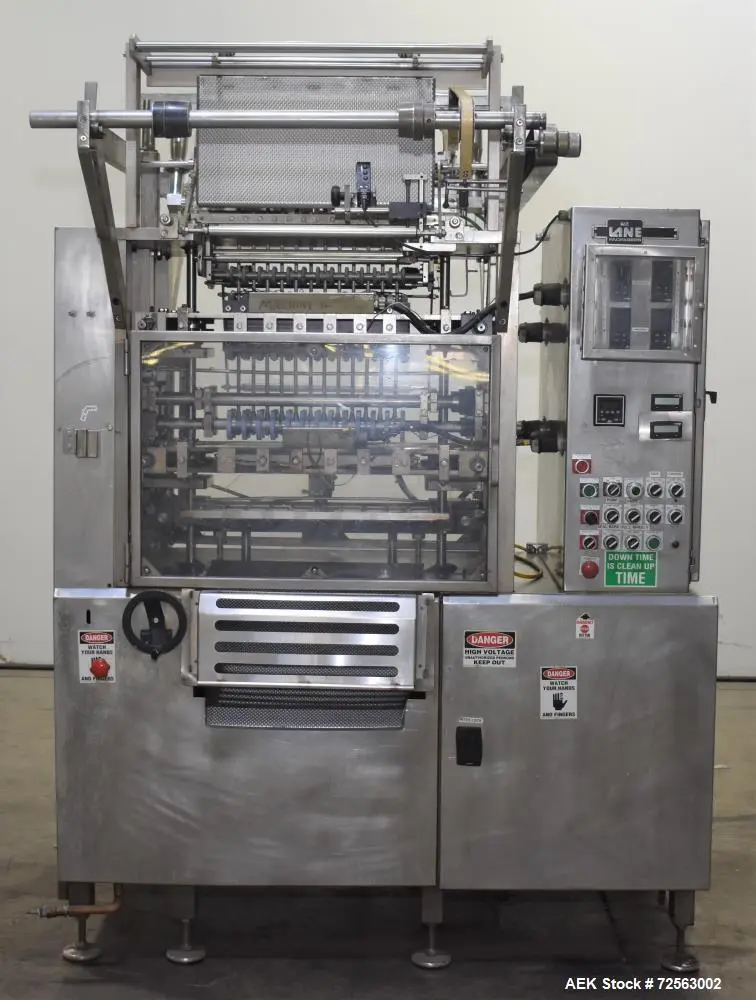

W.A. Lane Model L-18 Form & Fill Vertical Liquid-Paste Filler
Overview

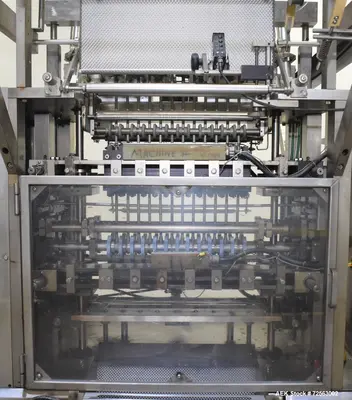

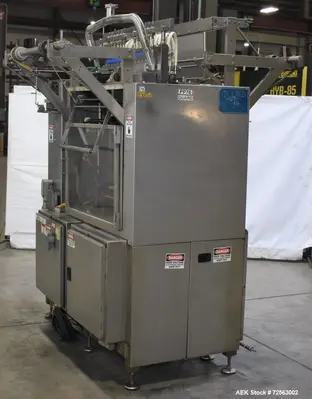

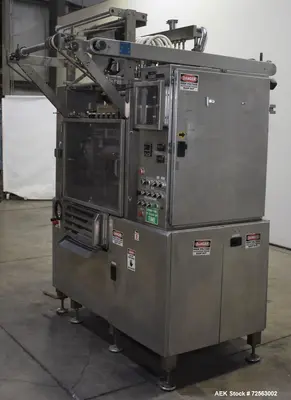

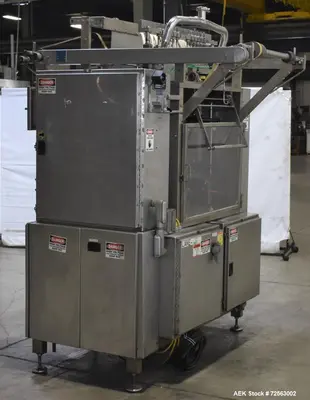

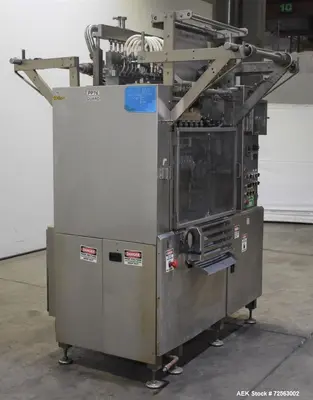

Used - Winpak Lane Form & Fill Model L-18 Vertical Liquid-Paste Filler
12-Head Vertical FFS | 18" Film Width | 15-100 CPM | 0.05 to 6 oz Fills | PLC Controlled
Overview
This Used Winpak Lane Model L-18 Vertical Form, Fill & Seal Machine is engineered for liquid and paste filling applications. With 12 filling heads, this high-efficiency machine runs up to 12 packages per cycle at 15 to 100 cycles per minute, offering a flexible package size range and fill volumes.
Ideal for products such as sauces, dressings, creams, gels, and other viscous liquids, it features an Allen Bradley Micrologix 1500 PLC with PanelView 300 HMI for user-friendly operation.

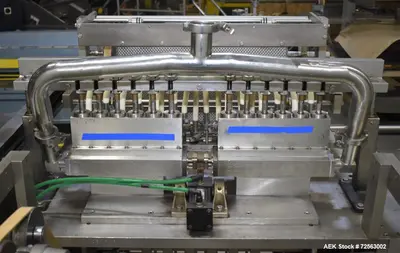

This model offers consistent package forming, filling, and sealing, and includes piston fillers and forming tubes for precise dosing.
Key Specifications
Manufacturer: Winpak Lane
Model: L-18
Type: Vertical Form-Fill-Seal (VFFS) for Liquid/Paste
Film Width: 18"
Number of Heads: 12
Cycle Speed: 15 to 100 cycles per minute
Packages Per Cycle: Up to 12
Package Size Range:
Length: 2-1/2" to 6"
Width: 1-1/2" to 4-1/2"
Fill Volume Range: 0.05 to 6 fl oz
Fill Temperature Range: 40°F to 195°F

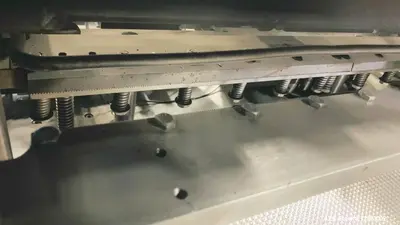

Cutting Knife: Approx. 23" long x 1/2"
Seal Bar: Approx. 19" long x 1"

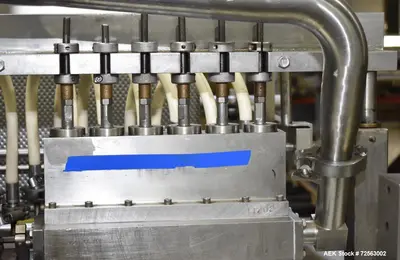

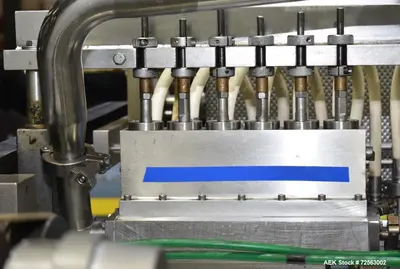

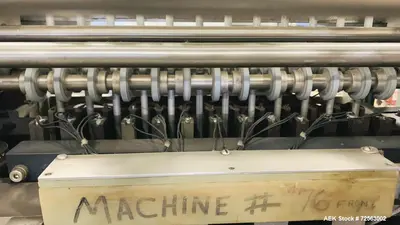

Filler Pistons: 1/2" Diameter
Forming Tubes: 3/8" OD
Inbound Fill Pipe: 2" Diameter

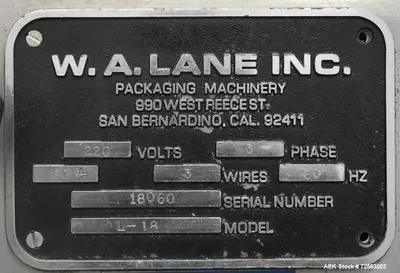

Electrical: 3 Phase / 60 Hz / 240 Volt

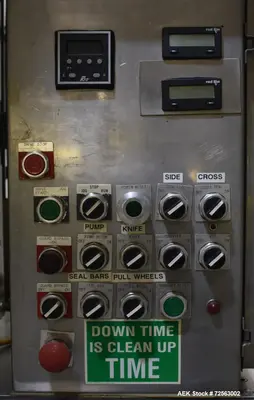

Controls:

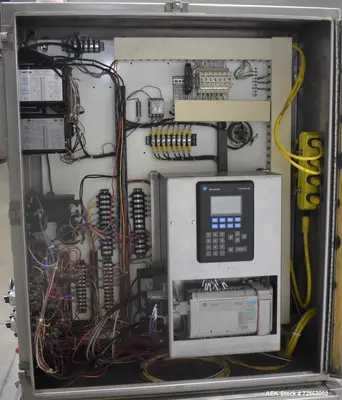

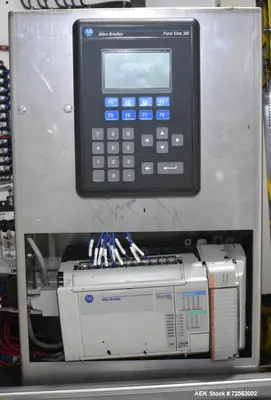

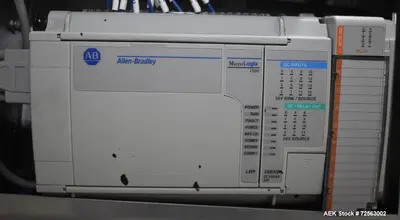

Allen Bradley Micrologix 1500 PLC

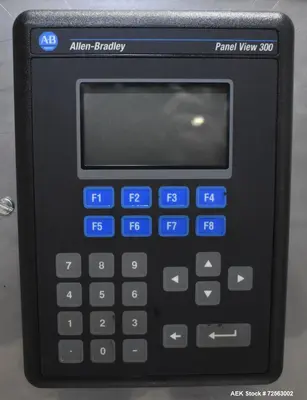

Allen Bradley PanelView 300 HMI
Optional Side Seal Slitters (available at additional cost)
Condition: Used
Features & Benefits
High-Speed Multi-Lane Operation – Up to 12 packages per cycle enhances productivity
Versatile Package Size & Fill Volumes – Accommodates a wide range of package formats
Precision Piston Fillers – Ensures accurate, repeatable dosing for liquids and pastes
Wide Temperature Compatibility – Handles both cold and hot fill products
Allen Bradley PLC & HMI – Reliable and easy-to-operate control system
Compact Footprint – Efficient use of floor space
Upgradeable – Side seal slitters can be added for enhanced sealing options
Applications
Food & Beverage
Sauces, Dressings, Condiments
Juices, Dairy Products
Personal Care
Creams, Lotions, Gels
Pharmaceutical & Nutraceutical
Liquid Medicines, Supplements
Industrial Products
Adhesives, Lubricants, Cleaning Agents
Industries Served
Food & Beverage Processing
Pharmaceutical & Nutraceutical
Cosmetics & Personal Care
Chemical & Industrial Packaging
Specs
Manufacturer: Winpak Lane
Model: L-18
Type: Vertical Form-Fill-Seal (VFFS) for Liquid/Paste
Film Width: 18"
Number of Heads: 12
Cycle Speed: 15 to 100 cycles per minute
Packages Per Cycle: Up to 12
Package Size Range:
Length: 2-1/2" to 6"
Width: 1-1/2" to 4-1/2"
Fill Volume Range: 0.05 to 6 fl oz
Fill Temperature Range: 40°F to 195°F
Cutting Knife: Approx. 23" long x 1/2"
Seal Bar: Approx. 19" long x 1"
Filler Pistons: 1/2" Diameter
Forming Tubes: 3/8" OD
Inbound Fill Pipe: 2" Diameter
Electrical: 3 Phase / 60 Hz / 240 Volt
Controls:
Allen Bradley Micrologix 1500 PLC
Allen Bradley PanelView 300 HMI
Optional Side Seal Slitters (available at additional cost)
Condition: Used
