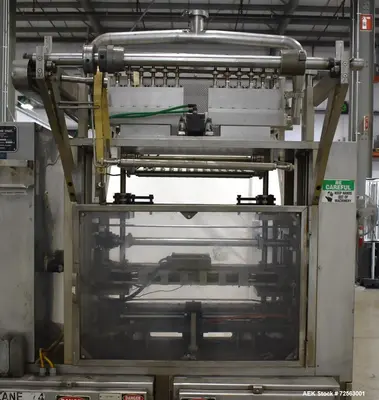

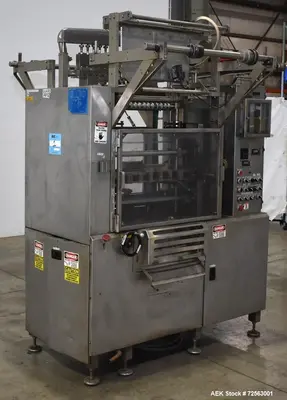

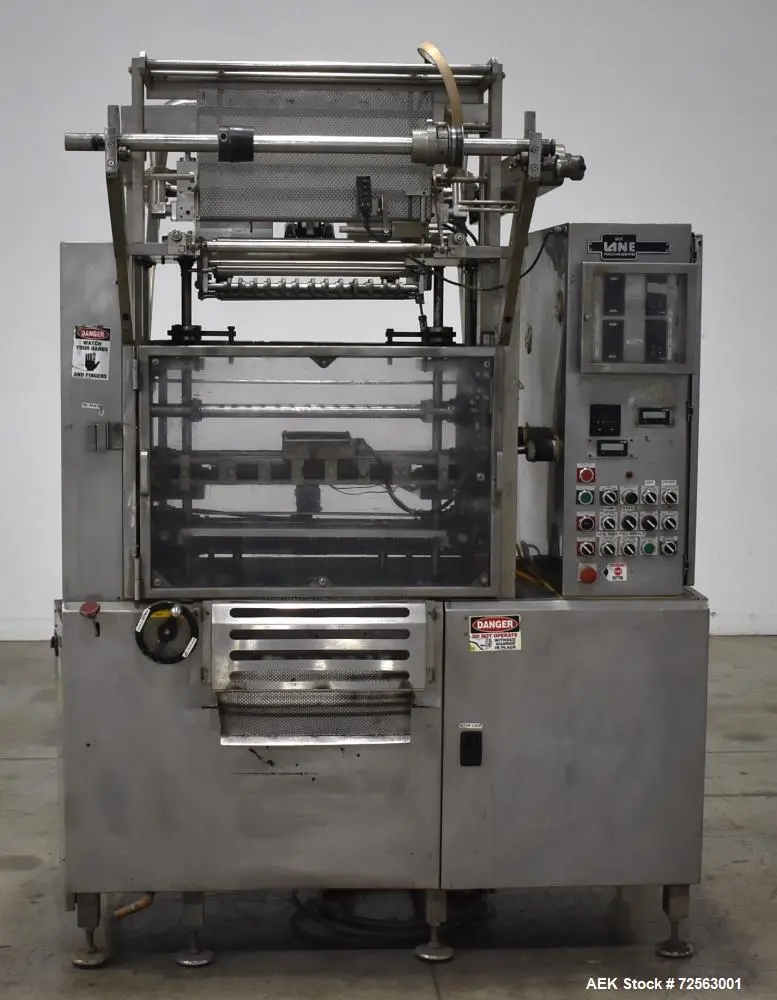

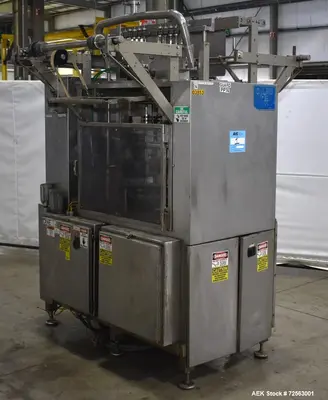

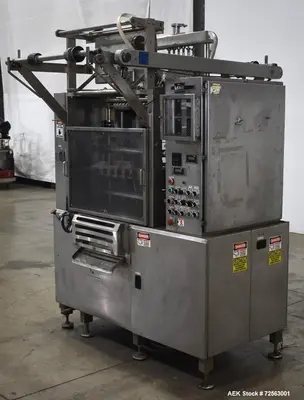

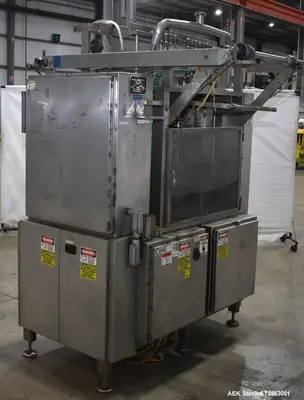

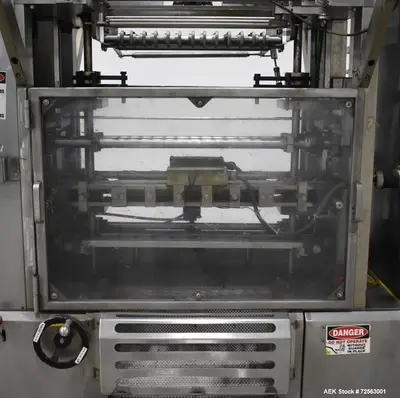

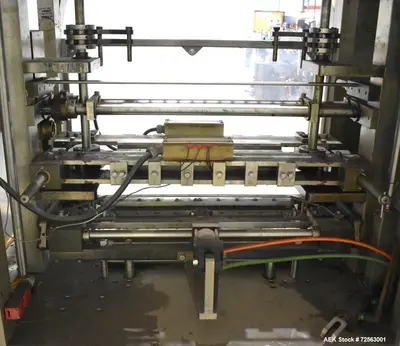

W.A. Lane Form & Fill Vertical Liquid-Paste Filler, Model L-18

Used W.A. Lane Model L-18 Form & Fill Vertical Liquid-Paste Filler, Film width approximate 18". Up to 12 packages per cycle, 15 to 100 cycle per minute. Package range: 2-1/2" to 6" long, 1-1/2" to 4-1/2" wide. Fill volume range .05 to 6 fl. oz. Fill temperature range 40 to 195 degrees F. Film width 18". 3/60/220 Volt, 60 Amp. No PLC or HMI.

Used Equipment Facts About This Machine
Used - Winpak Lane Form & Fill Model L-18 Vertical Liquid-Paste Filler
12-Head Vertical FFS | 18" Film Width | 15-100 CPM | 0.05 to 6 oz Fills | PLC Controlled

Overview
This Used Winpak Lane Model L-18 Vertical Form, Fill & Seal Machine is engineered for liquid and paste filling applications. With 12 filling heads, this high-efficiency machine runs up to 12 packages per cycle at 15 to 100 cycles per minute, offering a flexible package size range and fill volumes.
Ideal for products such as sauces, dressings, creams, gels, and other viscous liquids, it features an Allen Bradley Micrologix 1500 PLC with PanelView 300 HMI for user-friendly operation.

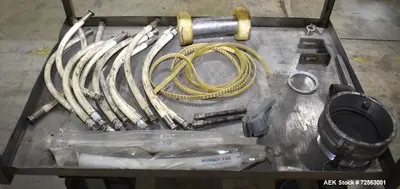

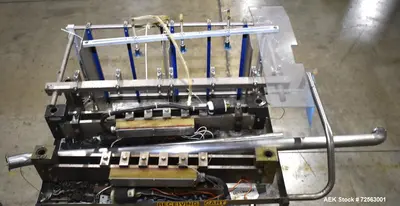

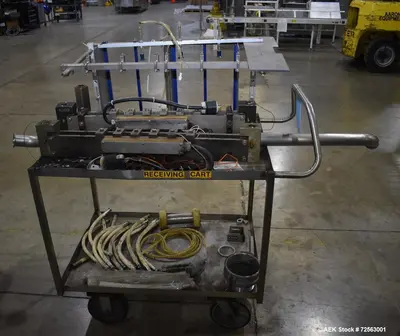

This model offers consistent package forming, filling, and sealing, and includes piston fillers and forming tubes for precise dosing.

Key Specifications

Manufacturer: Winpak Lane

Model: L-18

Type: Vertical Form-Fill-Seal (VFFS) for Liquid/Paste

Film Width: 18"

Number of Heads: 12

Cycle Speed: 15 to 100 cycles per minute

Packages Per Cycle: Up to 12

Package Size Range:

Length: 2-1/2" to 6"
Width: 1-1/2" to 4-1/2"

Fill Volume Range: 0.05 to 6 fl oz

Fill Temperature Range: 40°F to 195°F

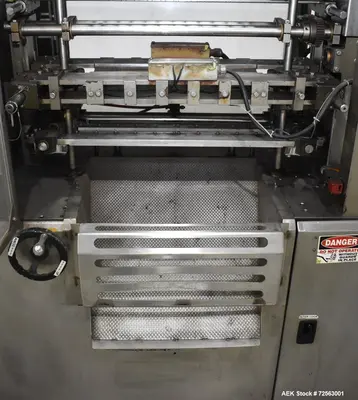

Cutting Knife: Approx. 23" long x 1/2"

Seal Bar: Approx. 19" long x 1"

Filler Pistons: 1/2" Diameter

Forming Tubes: 3/8" OD

Inbound Fill Pipe: 2" Diameter

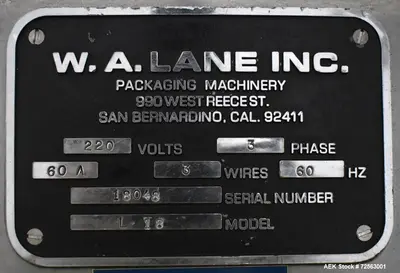

Electrical: 3 Phase / 60 Hz / 240 Volt

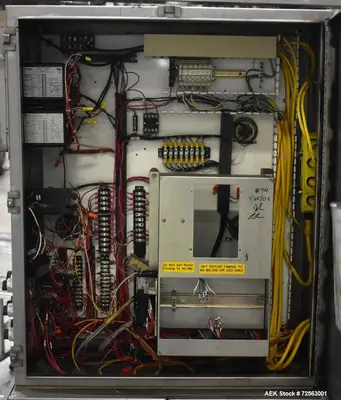

Controls:

Allen Bradley Micrologix 1500 PLC
Allen Bradley PanelView 300 HMI

Optional Side Seal Slitters (available at additional cost)

Condition: Used

Features & Benefits

High-Speed Multi-Lane Operation – Up to 12 packages per cycle enhances productivity

Versatile Package Size & Fill Volumes – Accommodates a wide range of package formats

Precision Piston Fillers – Ensures accurate, repeatable dosing for liquids and pastes

Wide Temperature Compatibility – Handles both cold and hot fill products

Allen Bradley PLC & HMI – Reliable and easy-to-operate control system

Compact Footprint – Efficient use of floor space

Upgradeable – Side seal slitters can be added for enhanced sealing options

Applications

Food & Beverage

Sauces, Dressings, Condiments
Juices, Dairy Products

Personal Care

Creams, Lotions, Gels

Pharmaceutical & Nutraceutical

Liquid Medicines, Supplements

Industrial Products

Adhesives, Lubricants, Cleaning Agents

Industries Served

Food & Beverage Processing
Pharmaceutical & Nutraceutical
Cosmetics & Personal Care
Chemical & Industrial Packaging
