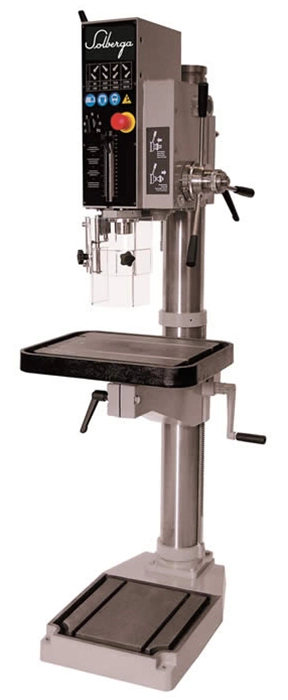

NEW 2025 WILLIS SE 2035

WILLIS Solberga Drilling Machine Model SE 2035, 16" x 20" Geared Drill Press w/ Manual Feed
Swedish made machine. The SE2035ELM features a manual feed function, engaged/disengaged by a push button located on the feed handle. The SE2035ELM also features an auto-reverse package for tapping.
The Solberga SE 2035 geared head drill press is a heavy-duty industrial machine featuring a 35mm (approx. 1.4") drilling capacity in steel, with a table size of 16" x 20" and a 4 Morse Taper (MT) spindle, often listed with a net weight of approximately 650 lbs (

) 20" New Solberga Geared Head Drill Press Model SE-2035. It offers 8 spindle speeds (90 – 3,610 RPM) and 6" spindle travel Solberga Geared Head Drill Press, SE2035.

Specifications:
Drilling Capacity: 1.4″
Spindle Speeds: 90 – 3,610 RPM (8 Speeds)
Power Feed Rates: 0.004″ – 0.012″ /rev.
Spindle Taper: 4 M.T.
Column Diameter: 5″
Spindle Travel: 6″
Throat Depth: 32″
Max. Distance Spindle to Table: 32″
Motor:2.2 HP (Low Speed), 3 HP (High Speed) 230v, 460v / 3ph
Dimensios for Shipping: 6' x 3' x 3'
Weight: 650 lbs.

Standard Features:

-Drill Head: The drill head is adjustable through 360° around the column and can be elevated and lowered
-Gearbox: Helical gears combined with steel gears against reinforced fiber gears in the main gear box ensures higher operating efficiency, a more powerful drive mechanism and smooth operation. The noise level is reduced and maintenance on the gearbox is reduced to a minimum. The 8 spindle speeds are easily selected by changing two handles
-Spindle: The spindle is made of steel with the lower spindle bearing being located as near to the lower part of the spindle as possible ensuring greater precision and rigidity even in milling operations. It is further adjustable by the journals in the bearings, which guarantees very small tolerances. The spindle is fitted with a counterbalanced tension spring and is adjustable depending on the weight of the tool and can be locked when carrying out milling operations
-Table: The machine is fitted with a high-quality cast iron rectangular table 16″ x 20″ table with T-slots and coolant channel
-Column: The column is constructed of steel, which ensures extra rigidity of the machine, giving you accurate precision and minimum deviation from the stipulated angle between the drill and the table
-Base Plate: The base plate has machined surface complete with T-slots and coolant channel
-Safety: The machine is supplied with thermal overload switch, no-volt release and emergency stop
Mechanical Specifications:
Weight: approx. 650 lbs.

MODEL DESCRIPTION LIST TARIFF
SE2035 Standard floor model drilling machine, manual feed $7,600 $680
SE2035PW Standard floor model drilling machine, power feed $9,900 $890
OPTIONAL ACCESSORIES
LED Work light $500 $40
Automatic reversing package $1,830 $150
Foot operated reversing switch $1,190 $100
Coolant package $810 $70
Drill Guard $430 $40
Drill Guard with microswitch $690 $60
Drill chuck with arbor, (1/2” capacity) simple type $290
