X, Y & Z Axis Travel: 17.8″ x 11.8″ x 12.6″
U & V Axis Travel: ±3.97″
Table Size: 27.95″ x 22.04″
Maximum Load on Table: 1,764 Lbs.
Distance Floor to Table Top: 39.37″
Ball Screw Diameter X & Y: 1.259″Ø
Ball Screw Diameter U, V & Z: .984″
Ball Screw Diameter Class: 5
Jog / Rapid Feed X, Y & Z Axis: 1.97,5.9,23.62 / 78.7 IPM
Jog / Rapid Feed U & V Axis: 1.97,5.9,23.62 / 39.3 IPM
Servo Feed: 0.00039 ⁓ 1.97 IPM
Positioning Resolution: 0.000004″
Feedback X, Y, U, V & Z: 0.000004″ Rotary Encoders
Feedback X & Y: 0.000002″ Glass Scales
Servo System: PWM Digital AC Servos
Maximum Taper Angle: ±15°/3.93″ Thickness
With Optional “C” Guides: ±45°/3.93″ Thickness

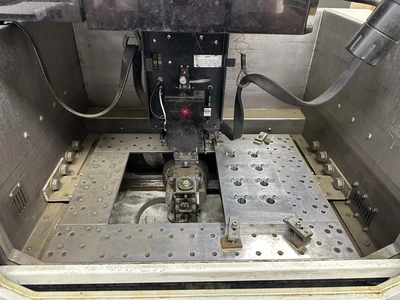

Work Piece Size Inside of Work Tank: 27.95″ x 22.04″ x 11.81″
