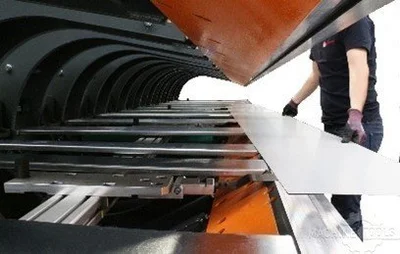

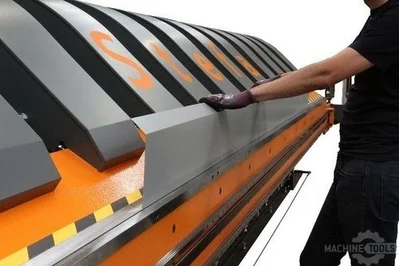

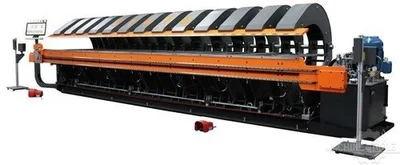

Brand – STEFA Model – VH620 Type – Folding Machines New – In Stock
Max Thickness (gauge): 14 gauge
Overall Length: 20′
Weight: 15,000 lbs
Max Thickness Admissible: 2 mm St40 / 2.6 mm Aluminum / 1.25 mm Stainless Steel Working Length: 6030 mm Number of Arms: 10 Max Cut Capacity: Specified for St40 Backgauge Range (Max–Min): 1110 mm ↔ 5 mm Standard Backgauge Tolerance: -1.0 / +0.2 mm Servomotor Backgauge Tolerance: -1.0 / +0.2 mm / -0.01 / +0.02 mm Number of Backstops: 6 Standard Backgauge Speed: ~70 mm/s Servomotor Backgauge Speed: 250 mm/s Opening Height Clamping Beam: 260 mm Max Rotation of Bending Beam: Approx. 145° Bending Tolerance: ±1° Hydraulic Power: 11 kW Weight: 7.5 ton Colors: RAL2008 / RAL7043 (Light Orange, Dark Grey)
Elite Bender Package 2D Graphical Software with 21″ Touch Screen Servo Backgauge System Automatic Radius and Thickness Adjustment Differential Clamp Pressure Sensor Safety Laser System Conical Backgauge Extra Backgauge Fingers Extended Backgauge (Up to 1250 mm) Retractable Trays Remote Access for Assistance
