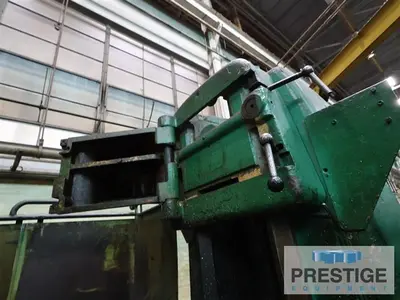

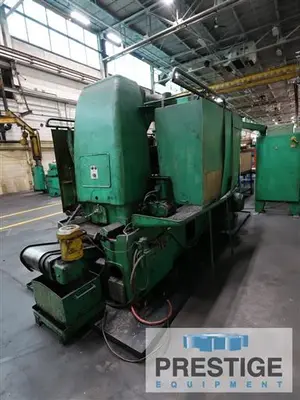

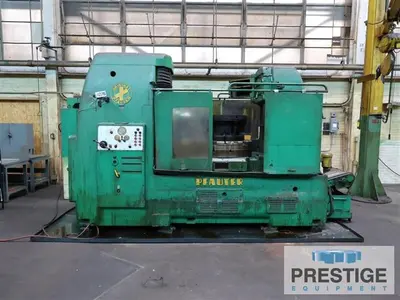

USED PFAUTER P1250

SPECIFICATIONS:
Maximum Gear Diameter: 1250 mm
Masimum Diametral Pitch: 2
Module: 12
Max. Hob Diameter: 220 mm
Hob Arbor Size: 2"
Hob Speed: 200 RPM

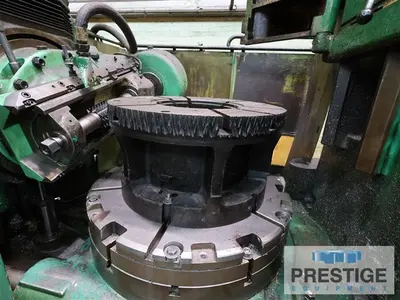

Table Diameter: 950 mm
Max. Hobbing Length: 585 mm
Feed Range, Axial: 0,30 – 6 mm/min
Feed Range, Radial: 0.09 – 1.8 mm/min
Feed Range, Tangential: 0.126 – 2.53 mm/min
Hob Spindle Speeds: 32-200 RPM
Maximum Tool Length: 260 mm
Maximum Tool Diameter: 220 mm
Minimum Number of Milling Teeth: 12
Approximate Weight: 14,000 kg

Equipped With:

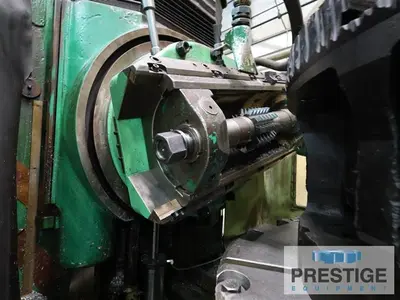

Hob Arbor
Single Indexing
Differential
Swing Away Tailstock
Chip Conveyor,
Coolant
Change Gears

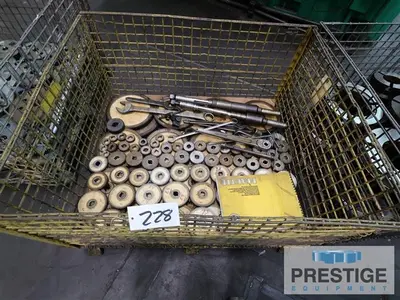

Spare Arbors

LOCATION:
Warren, Michigan

Features:
Hob Arbor
Single Indexing
Differential
Swing Away Tailstock
Chip Conveyor,
Coolant
Change Gears
Spare Arbors
