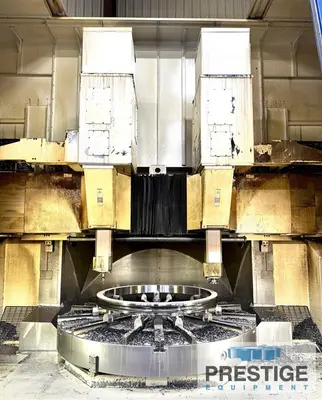

USED 2009 GIDDINGS & LEWIS VTC-3500FX

SPECIFICATIONS:
Table Diameter: 118.11"
Max. Swing / Max. Facing Capacity: 137.79"
Max Height Under Rail, Fixed: 48.5"
Ram Stroke, Z-Axis: 29.52"
X-Axis Ram Travel, Right Side: 81.11"
X-Axis Ram Travels, Left Side: 81.11"
Distance Between Ram Centers, Min.: 47.24"
Ram Cross Section: 9.84" x 9.84"
Ram, Turning Tool Taper: MAG Latch SL 250
Milling Spindle Taper, Modular: KM-80
Milling Spindle Speeds, Max: 4,000 RPM
Milling Spindle Speed Ranges: 2
Table Speeds,: 1-120 RPM
Table Speed Ranges: 2
Table Indexing, C-Axis: 0.001 degrees
Table, C-Axis: Contouring
Table Torque: 111,116 Nm
Table Capacity: 132,000 lbs.
Machine Footprint: 564" x 288"
Machine Height: 264"
Machine Weight: 160,000 lbs

Equipped With:

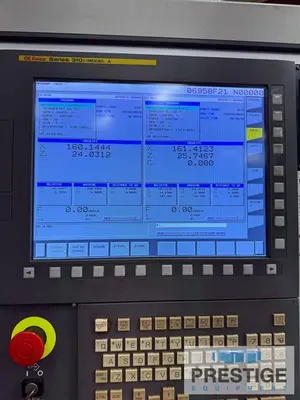

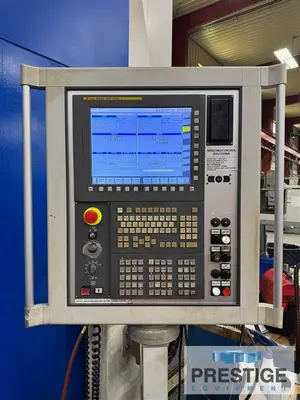

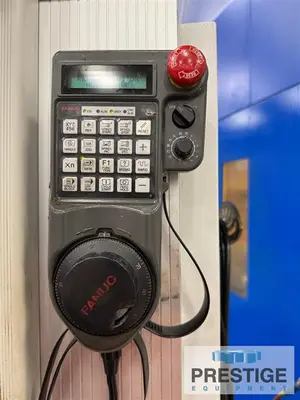

Fanuc 31i CNC Controls

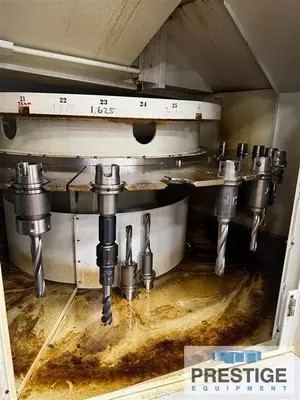

(2) 31-Station Automatic Tool Changer

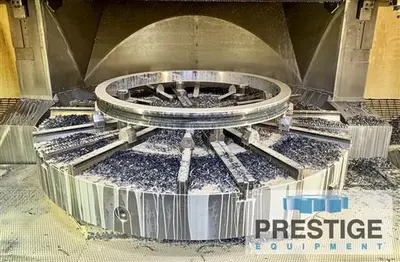

118.11" Diameter C-Axis Table (Rohm 6-Jaw Chuck)

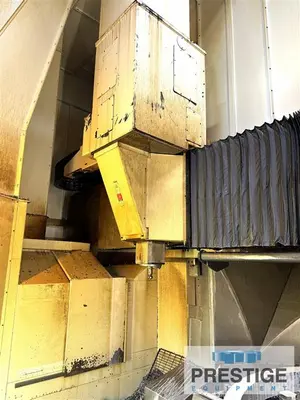

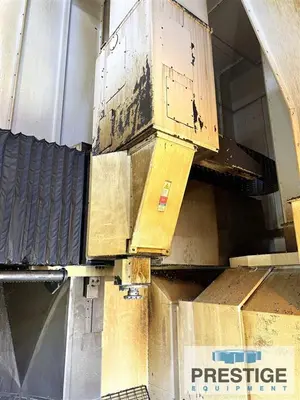

Live Milling Spindle in Both Rams

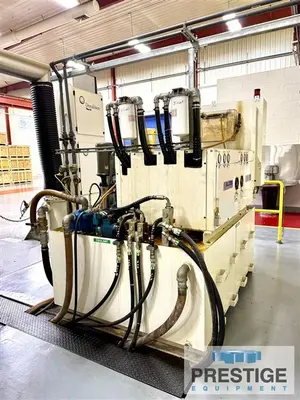

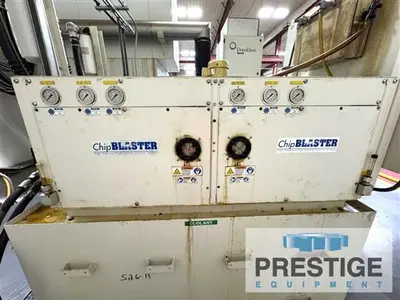

1,000 PSI Thru Spindle Coolant: Chip Blaster TCV50
Full Chip and Splash Enclosure

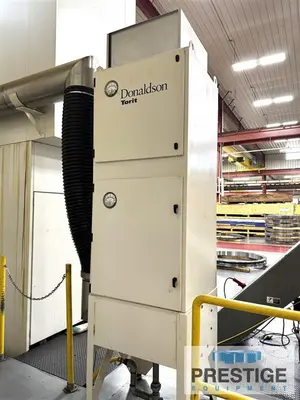

Mist Collector
Chip Conveyor

STANDARD CONTROL OPTIONS:
Helical Interpolation
Stored Pitch Error Compensation
Rigid Tapping
High Speed Skip
Tool Retract & Recover
Spindle Orientation
Tool Geometry/ear Compensation
Constant Surface Speed Control
Many More Standard and Non Standard Options Included
NOTE: MACHINE WAS USED FOR MILLING, DRILLING & FINISH TURNING.

Features:
Fanuc 31i CNC Controls
(2) 31-Station Automatic Tool Changers
118.11" Diameter Rohm 6-Jaw Power Chuck
Live Spindle for Milling & Drilling In Both Rams
C-Axis Table 0.001 Degree Indexing
1,000 PSI Thru Spindle Coolant: Chip Blaster TCV50
Full Chip and Splash Enclosure
Mist Collector
Chip Conveyor
