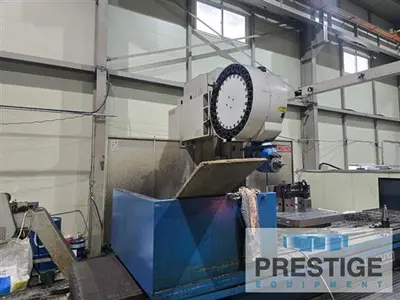

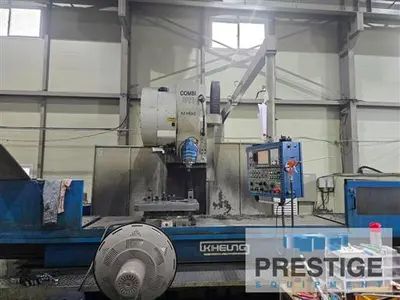

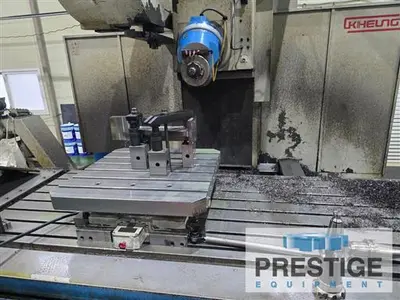

USED 2012 KIHEUNG COMBI U-11

SPECIFICATIONS:
X-Axis Travel: 125.98"
Y-Axis Travel: 55.11"
Z-Axis Travel: 47.24"
Taper In Spindle: BT #50
Table Size: 43.30" x 123.62"
Maximum Weight Capacity: 8,800 Lbs.
Height from Table to Ver. Spindle Nose. 3.74"-43.50":
Height from Table to Hor. Spindle Nose. 0"-47.24":
Feeds; X,Y,Z Axes: 196.85 IPM
Spindle Speeds: 2,000 RPM
Approximate Machine Weight: 57,200 Lbs.

Equipped With:

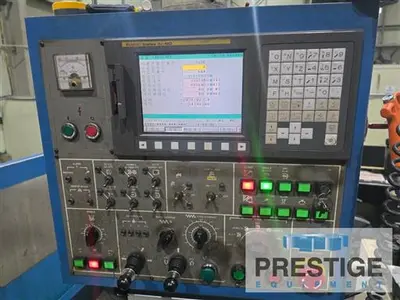

Fanuc OiMD CNC Control
24-Station Automatic Tool Changer
Horizontal/Vertical Automatic Universal Head
Scales (Y/Z)
24.6 HP/29.3 HP
Chip Conveyor

Features:
Fanuc OiMD CNC Control
24-Station Automatic Tool Changer
Horizontal/Vertical Automatic Universal Head
Scales (Y/Z)
24.6 HP/29.3 HP
Chip Conveyor
