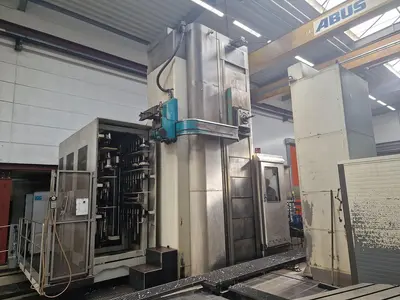

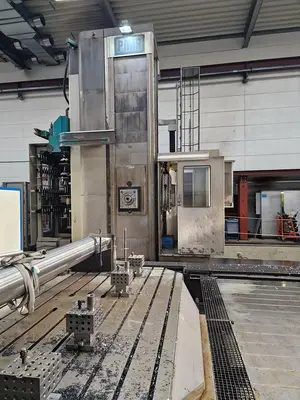

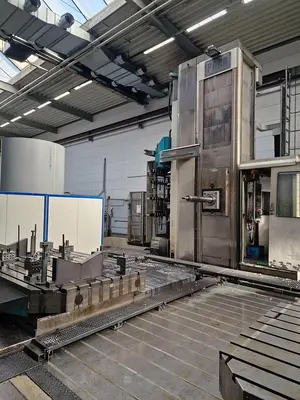

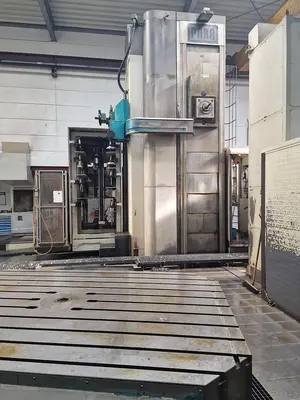

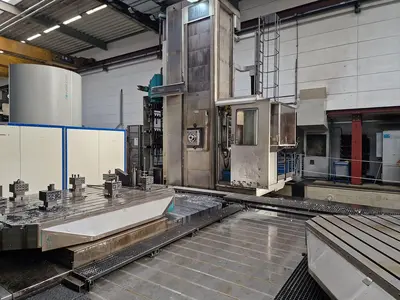

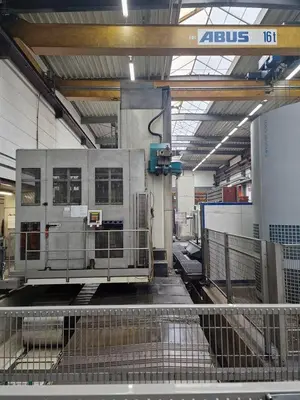

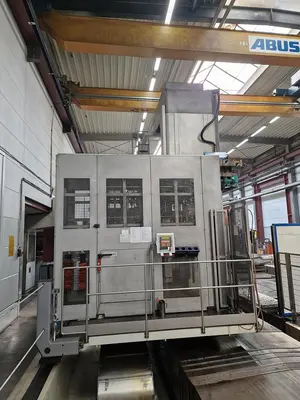

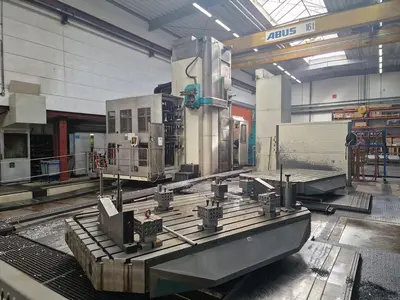

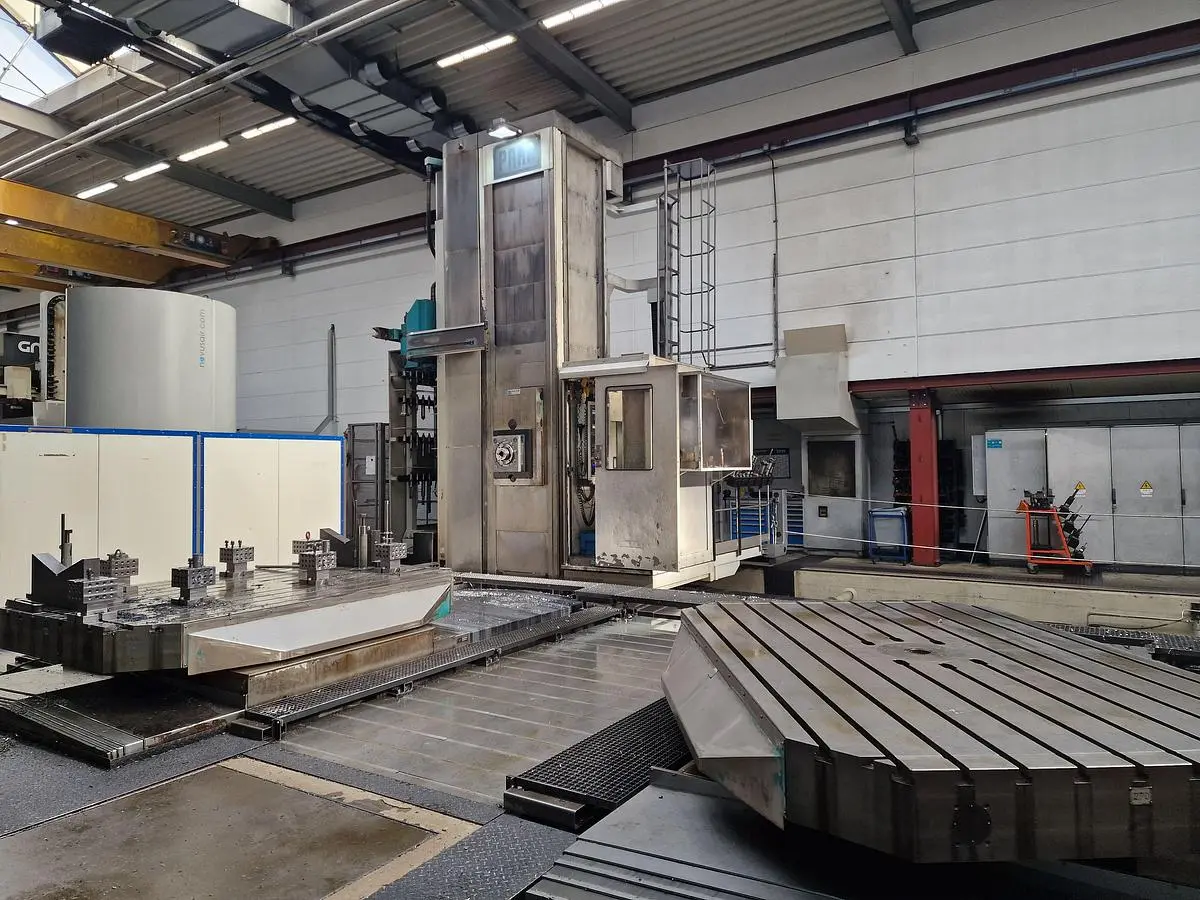

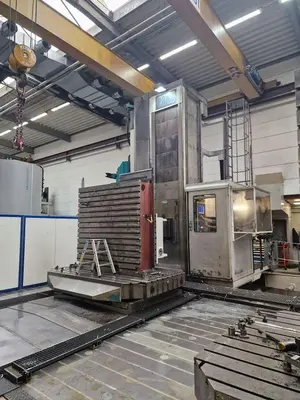

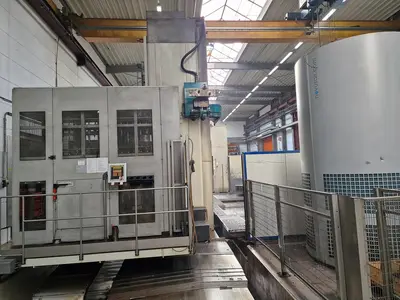

USED 2005 PAMA SPEEDRAM 2000

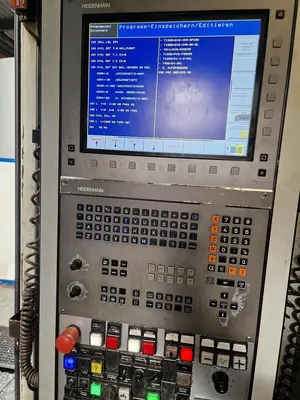

Heidenhain iTNC 530 CNC Control
Electronic handwheel

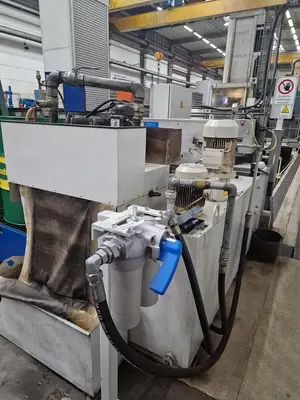

Chip conveyor (year of manufacture: 2023)
CE marking
Documentation

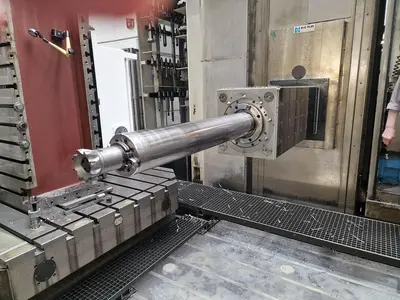

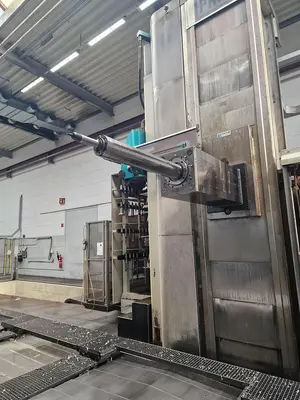

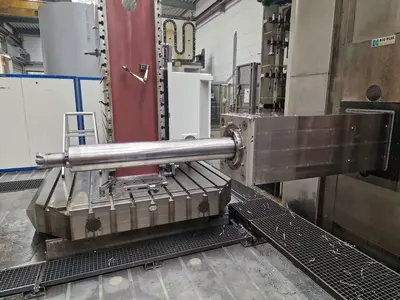

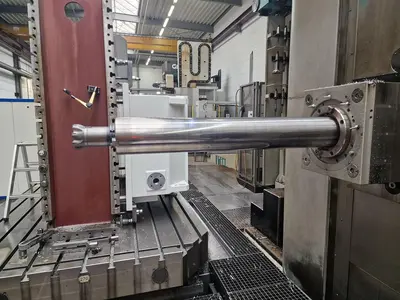

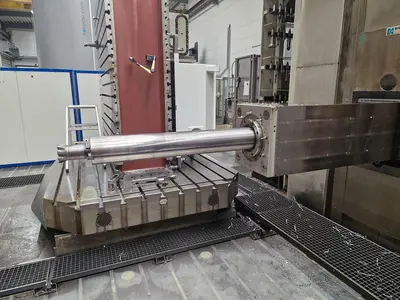

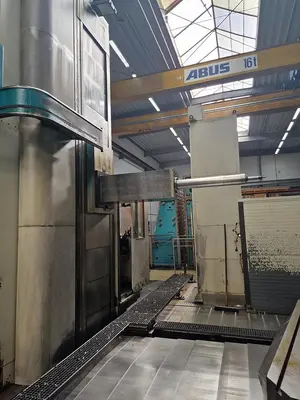

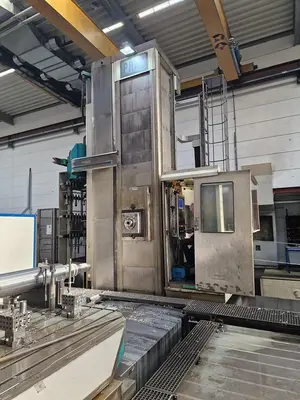

Z - W axis (spindle head):
- Drill spindle diameter: 150 mm
- Axial stroke of drill spindle (Z): 1.200 mm
- Rapid traverse Z axis: 20.000 mm
- Drill spindle internal cone: DIN 69871, ISO 50
- Drill spindle diameter: 254 mm
- Inner diameter of front spindle bearing: 200 mm
- RAM dimensions: 400 x 400 mm
- Axial stroke of drilling spindle (W): 1.000 mm
- Rapid traverse W axis: 15.000 mm
- Total axial stroke (Z+W): 2.200 mm
- Nominal torque spindle motor W and Z axis: 42 Nm

- Number of spindle gear stages: 2
- Spindle speed range: 6 : 3.500 rpm
- Spindle motor power: 60 kW

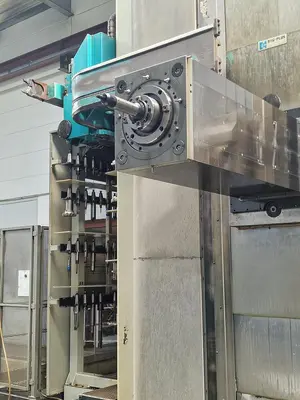

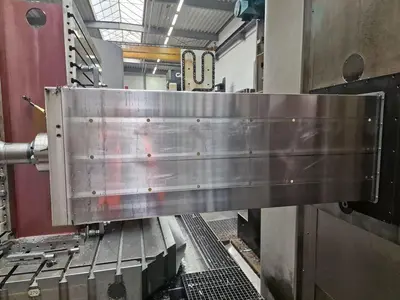

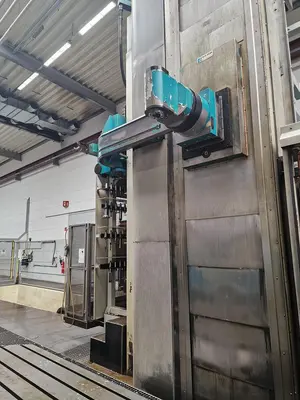

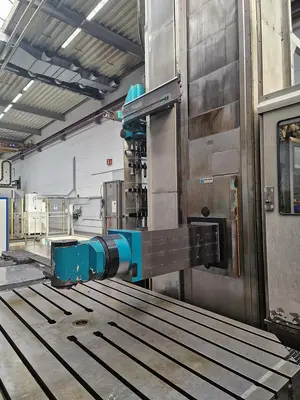

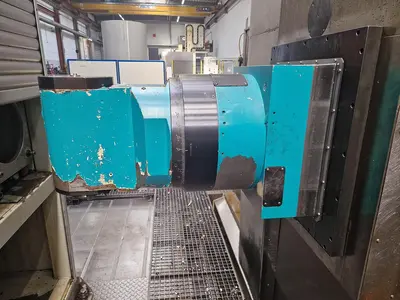

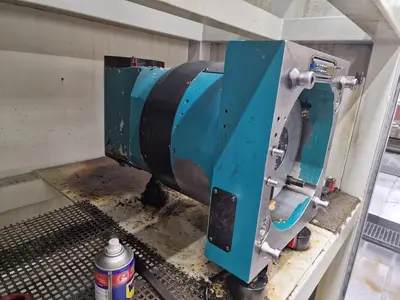

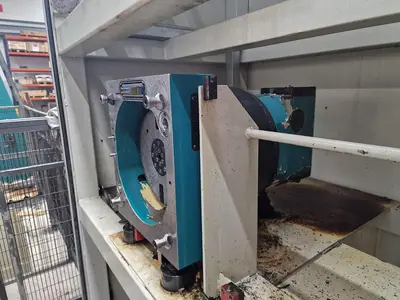

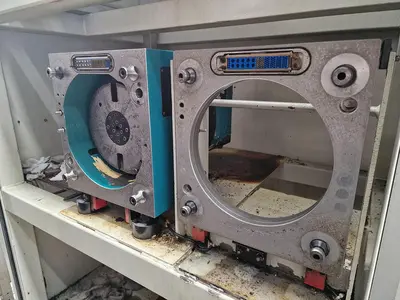

Milling head with indexed vertical axes, model TTL 2 18 360:
- Tool holder: ISO 50, DIN 69871
- Max. spindle power: 18 to 214 kW
- Max. spindle speed: 2.500 rpm
- Transmission ratio: 1:1
- Spindle indexing +/- 90°: 181 positions per 1°
- Milling head indexing +/- 180°: 360 positions per 1°
- Max. torque at the spindle: 800 Nm

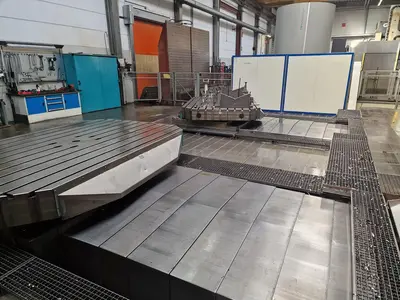

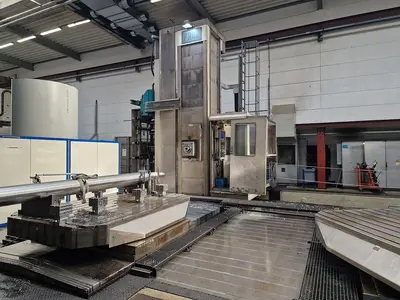

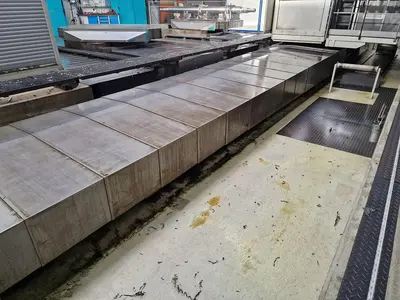

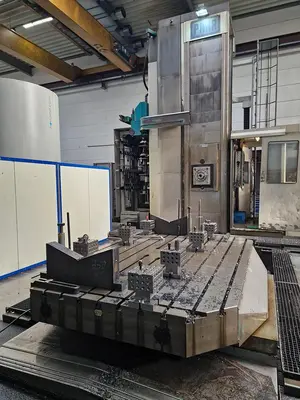

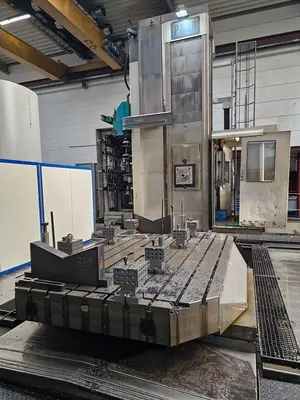

Workpiece table (axis V1 - B1 / V2 - B2):
- Table dimensions: 2.000 x 3.000 mm
- T-slot dimensions: 28 mm³
- Centre distance between T-slots: 180 mm
- Floor height of table top: 650 mm
- Load capacity: 40 t
- Longitudinal stroke (axis V1-V2): 2.000 mm
- Feed speed (axis V1-V2): 0.5 – 15.000 rpm
- Rapid traverse (axis V1-V2): 45.000 rpm
- Table rotation (axis B1-B2): 360° (degrees)
- Rapid feed (axis B1-B2): 0,0005 + 2 rpm
- Motor speed (axis B1-B2): 2.000 rpm
- Motor speed (axis V1-V2): 3.000 rpm
- Nominal motor torque (axis B1-B2 and V1-V2): 58 N

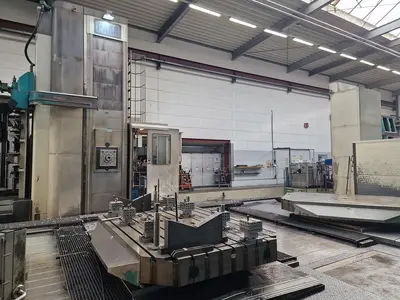

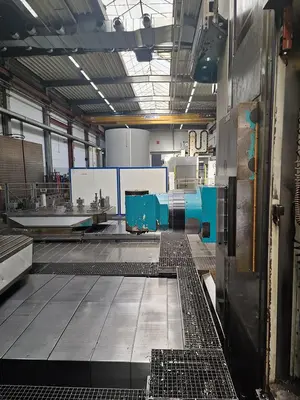

Clamping plate fields:
- Dimensions: 2 x 1.500 x 4.500 mm, 1 x 2.000 x 4.500 mm
- Load capacity: 15.000 kg/m²
- Plate thickness: 300 mm
- T-slot dimensions: 28 H12, DIN 650 mm
- T-slot centre distance: 250 mm
- Surface finish: DIN 876/III

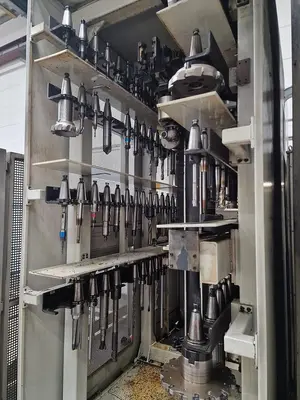

Tool rack magazine ATC 13-150 R 147:
- Max. capacity of the magazine: 147 pcs.
- Max. tool weight: 35 kg
- Max. tool length: 700 mm
- Tool taper: DIN 69871
- Tool change time: 28 sec.
