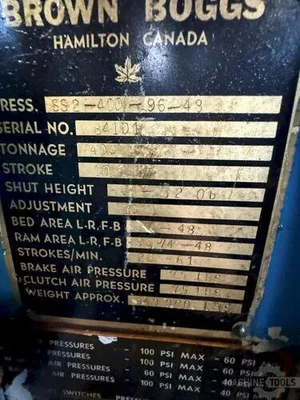

USED 1985 BROWN & BOGGS SS2-400-96-48

400-ton Brown Boggs Straight Side Mechanical Press For Sale Model SS2-400-96-48, Year 1985

Tonnage: 400
Stroke: 10 inches
Shut Height: 32 inches
Adjustment: 10 inches
Bed Size: 96" LR x 48" FB
Ram Area: 96" LR x 48" FB
SPM: 26-61

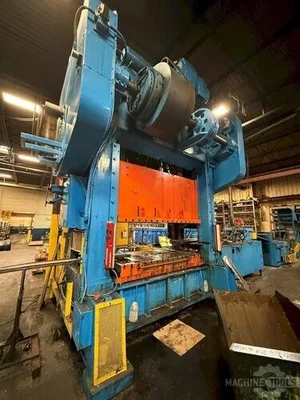

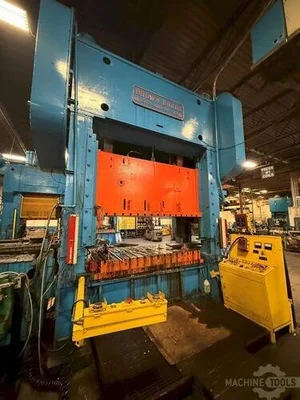

Brown Boggs Straight Side Mechanical Stamping Press
400-ton Capacity Metal Stamping / Progressive Die
Model # SS2-400-96-48

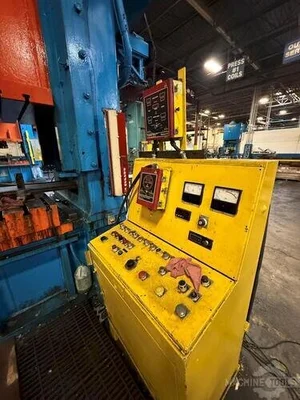

400-ton Capacity10" Stroke32" Shut Heigh on Bed24" Shut Heigh on Bolster10" Motorized Adjustment96" LR x 48" FB Bed Area96" LR x 48" FB Slide Area21-61 VSPM Equipment and FeaturesAir Clutch and Brake Air CounterbalancesRecirculating Lube System8" Thick T-Slotted Ram and BolsterWintriss Shadow V Light CurtainsWintriss  AutoSet 1504Wintriss Brake MonitorFree Standing Console ControlsWide WindowsVibro Dynamic Floor PadsFloor StandingCan be seen underpower in stamping operation.  For more details or to schedule an inspection please do not hesitate to call or email.Optimize your metalforming production with this heavy-duty 400-ton Brown Boggs SS2-400-96-48, a high-performance straight side mechanical stamping press. Engineered for precision progressive die applications, it features a massive 96" x 48" bed, 10" stroke, and variable speeds of 21–61 VSPM. Equipped with Wintriss Shadow V light curtains and AutoSet 1504 controls, this floor-standing used mechanical press ensures maximum safety and accuracy. Available for immediate inspection under power in a professional stamping operation.
