USED PAUL O ABBE RB-315

Manufacturer: Paul O. Abbe
Model: RB-315
Type: Ribbon Blender / Industrial Mixer
Condition: Used

Description

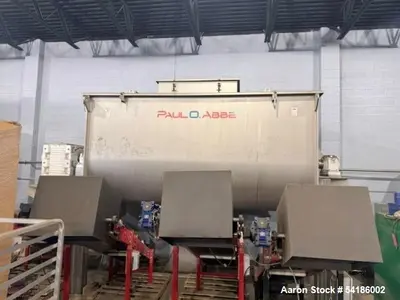

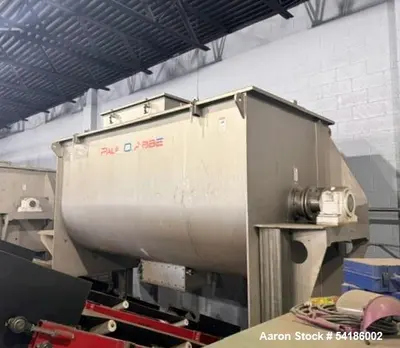

Used Paul O. Abbe Model RB-315 Ribbon Blender, a heavy-duty food-grade stainless steel mixer designed for efficient blending of powders, granules, and bulk solids. With a 315 cubic foot working capacity and 356 cubic foot total volume, this unit is ideal for high-volume industrial mixing applications.
Constructed entirely from Type 304 polished stainless steel, this blender meets food and sanitary processing standards. The internal double spiral ribbon agitator ensures thorough, uniform mixing by moving material both radially and laterally within the trough.
Driven by a robust 75 HP SEW Eurodrive hollow bore motor, the system operates at approximately 20 RPM output speed, delivering consistent mixing performance for dense or high-volume materials.
Equipped with a top cover with hold-down clamps and safety limit switch, as well as a center loading port with welded safety grate, this unit is designed for safe and efficient operation. The air-operated flush plug discharge valve allows controlled and complete discharge of materials.

Specifications

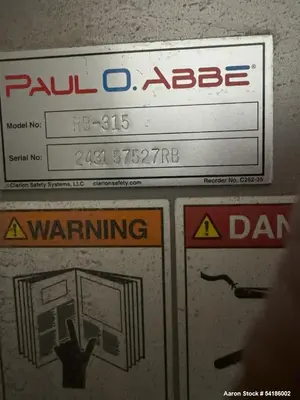

Manufacturer: Paul O. Abbe

Model: RB-315

Machine Type: Ribbon Blender

Construction: Type 304 stainless steel (polished, food grade)

Working Capacity: 315 cubic feet

Total Volume: 356 cubic feet

Mixing System

Internal double spiral ribbon agitator
Designed for uniform and efficient blending

Trough Dimensions

Width: 65.4"
Length: 141.8"
Depth: 73.3"

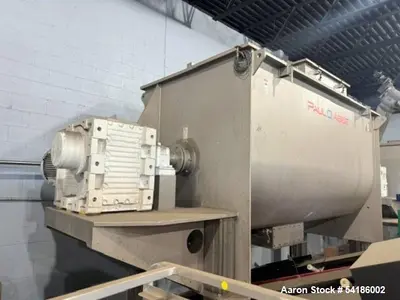

Drive System

Motor: 75 HP SEW Eurodrive

Design: Hollow bore

Voltage: 230/460 Volt

Speed: 1775 RPM input

Output Speed: Approx. 20 RPM

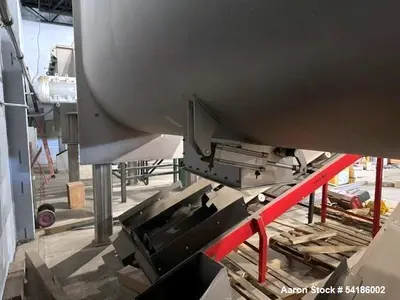

Discharge System

Air-operated flush plug valve
Valve Size: Approx. 5.5" wide x 27.6"
Discharge Housing: Approx. 20.5" wide x 36.2" long
Discharge Height: Approx. 4"

Feeding & Access

Top cover with hold-down clamps
Safety limit switch
Center loading cover: 30" x 50"

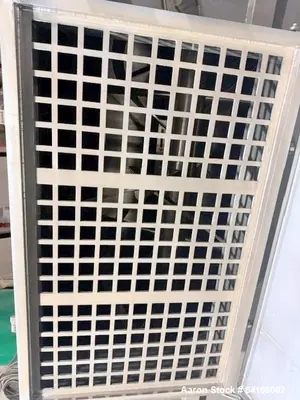

Welded safety grate

Mechanical

Packing glands
Pillow block bearings

Dimensions & Weight

Overall Dimensions:

Width: 87.8"
Length: 218.4"
Height: 100.4"

Weight: Approx. 19,580 lbs

Applications

Food ingredient blending
Powder mixing
Nutraceutical processing
Chemical blending
Pharmaceutical mixing
Dry bulk material blending
Spice and seasoning mixing
Animal feed blending
Fertilizer mixing
Industrial powder processing

What might this be used for

Blending dry powders uniformly
Mixing bulk ingredients in large batches
Combining additives into base materials
Preparing food-grade formulations
Producing spice blends or seasonings
Mixing chemical powders safely
Creating nutraceutical products
Handling large-scale batch processing
Improving product consistency
Preparing materials for packaging or further processing

Products this machine would be used for

Food powders
Spices and seasonings
Nutraceutical blends
Protein powders
Chemical powders
Fertilizers
Animal feed
Dry additives
Bulk ingredients
Industrial powder blends
