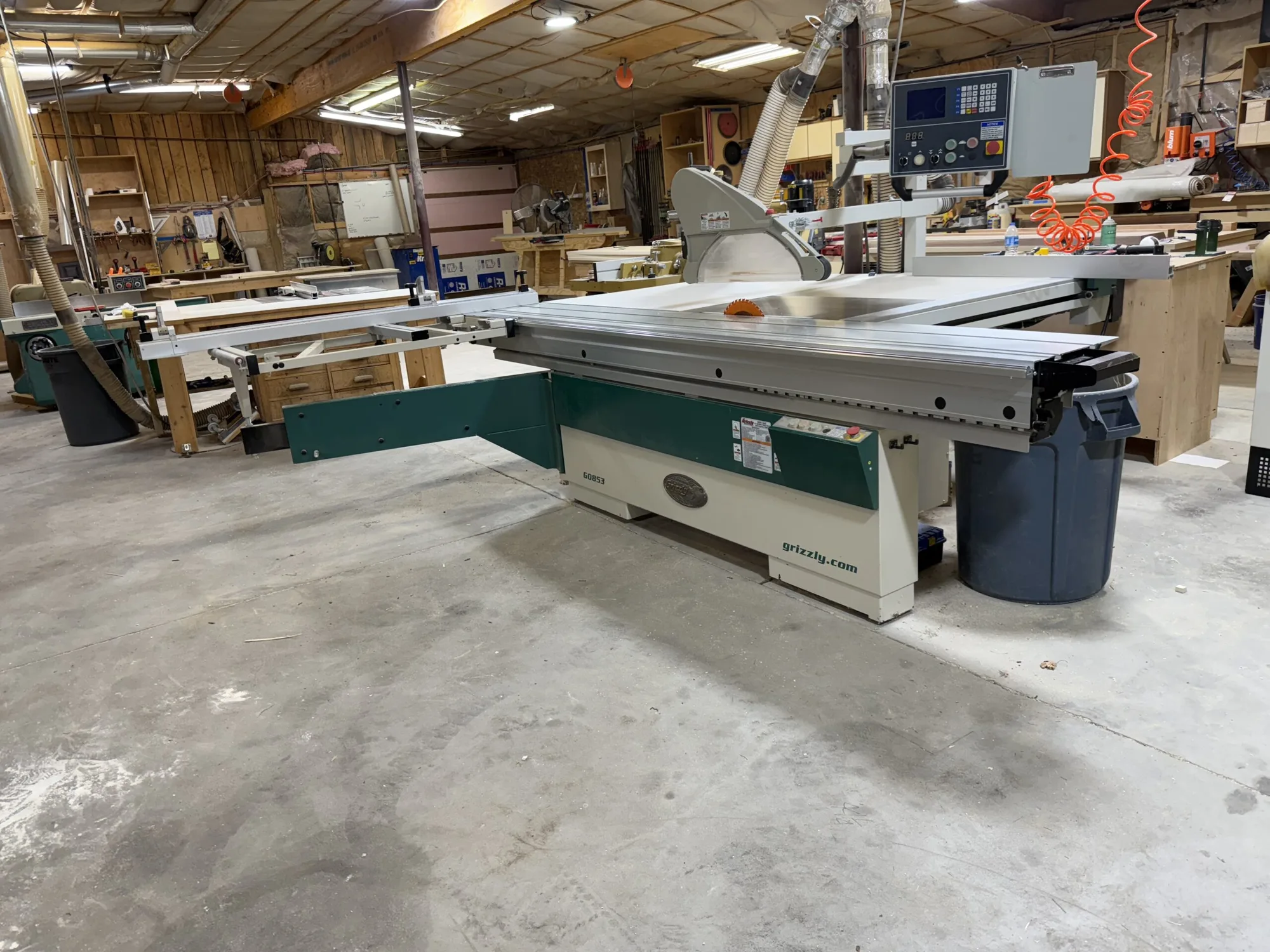

G0853 | Grizzly | Panel Saws

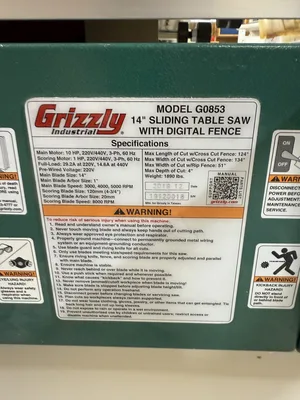

Was used minimally in a 2 man shop. We used cnc for most of our panel processing.Main motor: 10 HP, 220V/440V* (prewired for 220V), 3-phase, 26A/13AScoring motor: 1 HPMinimum circuit size: 40A @ 220V, 20A @ 440VRip capacity: 51″Max. crosscut: 134″ W x 121″ LBlade tilt: 0–45°Max. depth of cut at 90°: 4″Max. depth of cut at 45°: 2-3/4″Main table size: 59″ x 68″Sliding table size: 15-5/8″ x 126″Main blade size: 14″/12″Main blade arbor: 1″Main blade speed: 3000, 4000, 5000 RPMScoring blade size: 4-3/4″Scoring blade speed: 8000 RPMDust port sizes: 4″, 5″Floor space required: 271″ W x 205″ DFootprint: 75″ x 37″Overall size: 133″ W x 147″ D x 66″ HApproximate shipping weight: 2176 lbs.FEATURES:Digital controls for main blade height and tilt plus rip fence adjustmentProgrammable CNC rip fenceAccepts 12″ and 14″ bladesCross-slide table with locking clamp and hard chrome-plated slidewayAdjustable blade guard with built-in dust hoodMiter fence adjustable 30° left and 45° rightScoring blade virtually eliminates tear-outSliding table on vertical guide system with precision bearing rollers

230V 3PH
