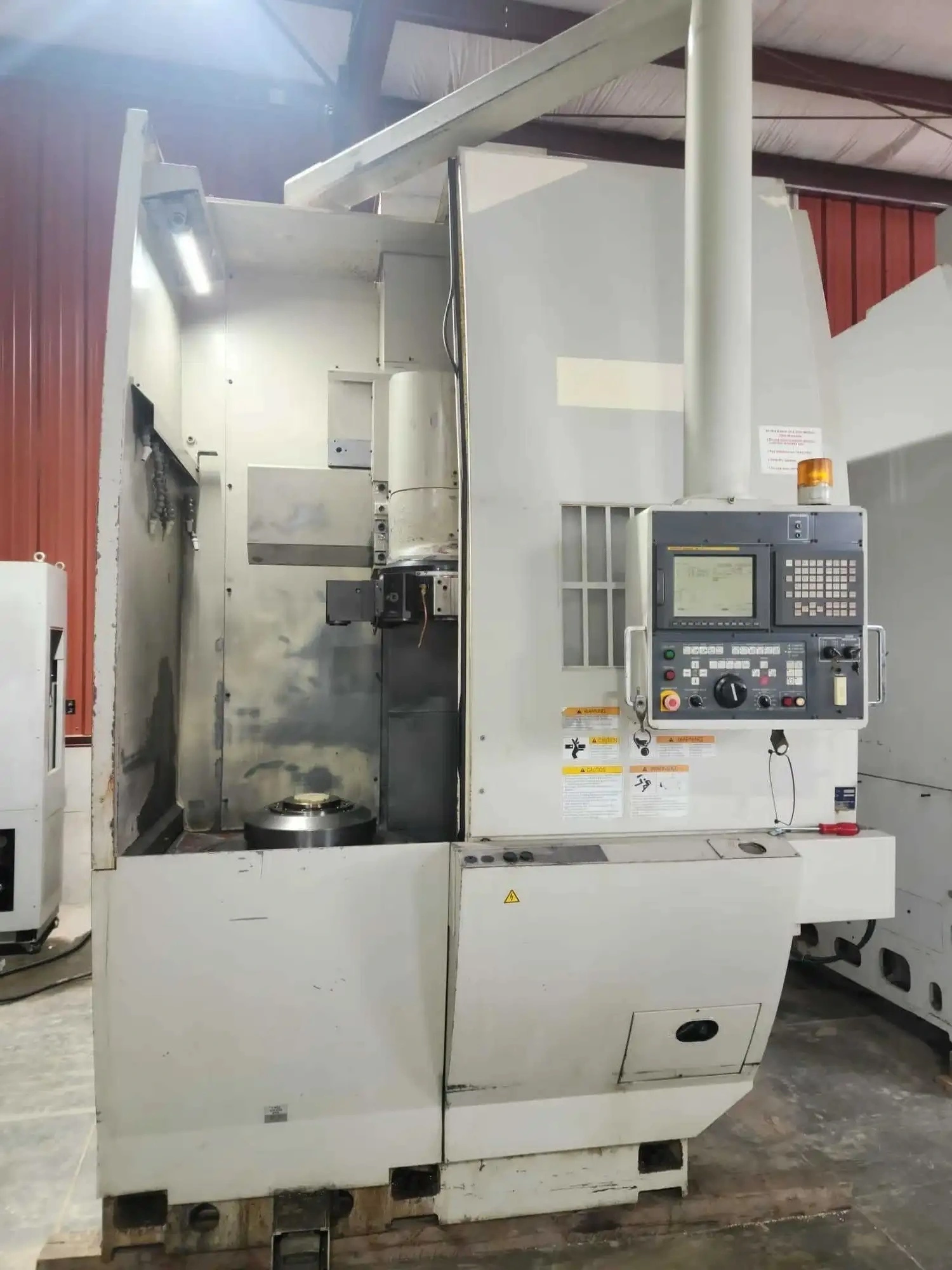

OKUMA 1SP V80R CNC Vertical Turning Center from 1999, features a 24" table diameter, 39.37" swing diameter, and 33" turning height. Equipped with Fanuc CNC control chip conveyor, and a 40hp spindle motor.
| Table Diameter | 24" | 609.6 mm |
| Table Load Capacity | 1,760 lb | 798.3 kg |
| Swing Diameter | 39.37" | 1,000 mm |
| Turning Height | 33.07" | 839.98 mm |
| Spindle Nose | A2-11 | A2-11 |
| Table Speed | 1,250 RPM | 1,250 RPM |
| Main Motor | 40 hp | 29.8 kW |
| Number Of Ranges | 2 | 2 |
| X - Axis Travel | 18.31" | 465.07 mm |
| Z - Axis Travel | 33.07" | 839.98 mm |
| Rapid Traverse Rate - X | 945 ipm | |
| Rapid Traverse Rate - Z | 945 in/min. | 24 m/min. |
| Turret Configuration | 12 station | 12 station |
| Machine Weight | 25,300 lb | 11,475.9 kg |
| Control | CNC (FANUC 18I-T CNC CONTROL) | CNC (FANUC 18I-T CNC CONTROL) |
| Weight | 25300 | 25300 |
FANUC 18I-T CNC CONTROL
24" 3 JAW HYDRAULIC CHUCK
CHIP CONVEYOR
STATIC TOOL HOLDERS
ALL AVAILABLE MANUALS
