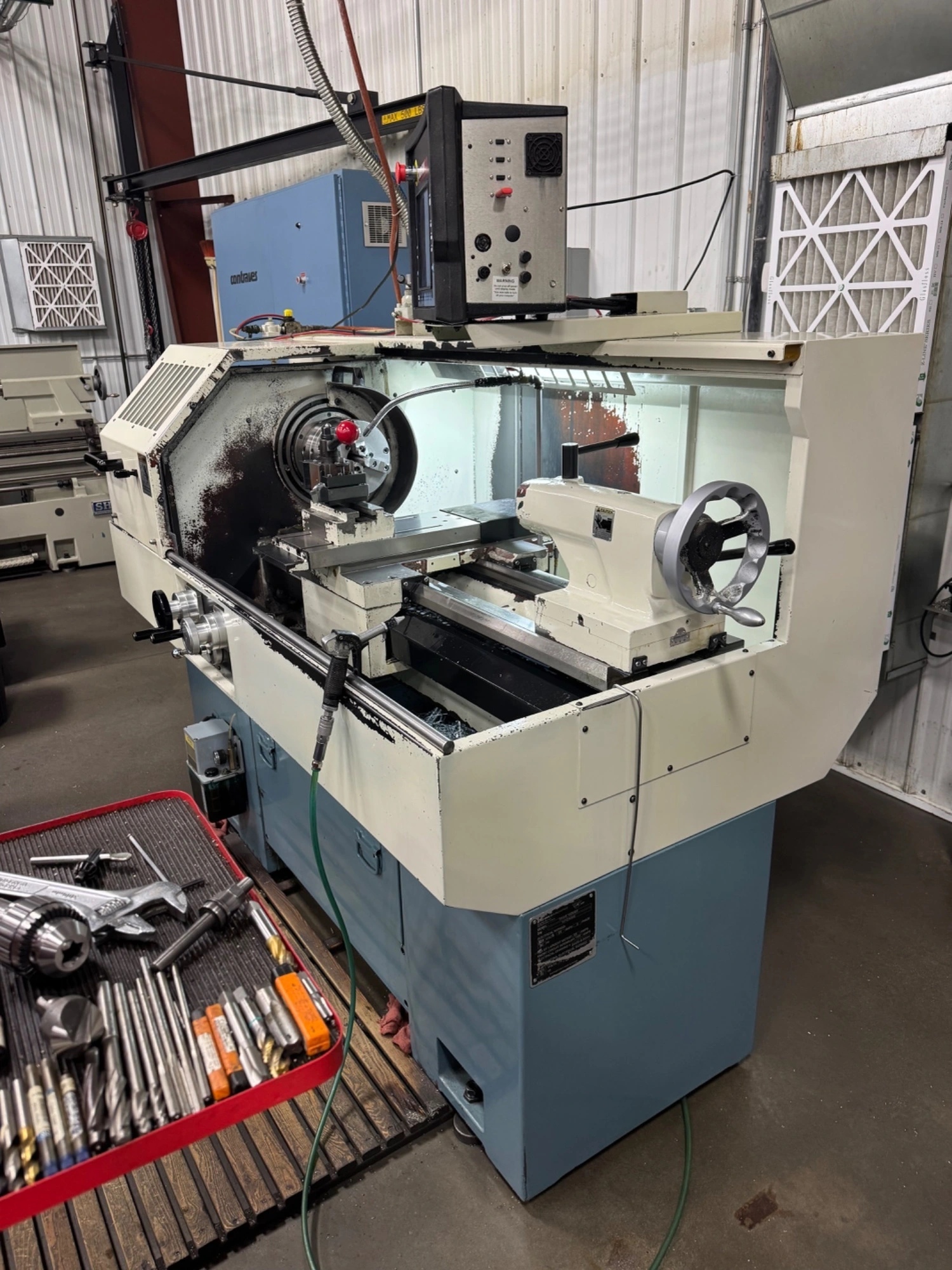

USED 2014 SOUTHWESTERN INDUSTRIES TRAK TRL 1630SX

TRL 1630SX Features
16″ swing, 30″ between centers
Spindle through hole of 2.12″
150-2500 rpm
Ideal for small parts, but a generous swing for versatility
At home or in a toolroom
Standard on all SX Series Lathes
ProtoTRAK SLX CNC integrated into the machine at the factory
Manual or CNC operation
Electronic handwheels and jogstick
Brushless servo motors
Inverter-duty spindle drive
Programmable spindle speeds

Southwestern Industries Trak TRL1630SX CNC Lathe (2014)

· Height of Centers-8”

· Distance between centers-30”

· Swing over bed -16”

· Swing over saddle wings-16”

· Swing over cross slide-8.6”

· Cross slide travel-9.6”

· Tool section max-3 /4”

· Coolant tank capacity-11 gal.

· Width of Bed-12.6”

· Height of Bed-12.6”

· Spindle Nose (Camlock)-D1-6

· Spindle through hole-2.12”

· Spindle taper-MT#6

· Taper in reduction sleeve -N/A

· Spindle dia at front bearing-3.15”

· Number of bearings-2

· Bearing class (radial round)-P5

· Spindle speed range (RPM)-150-2500

· Optional Tailstock Quill travel-5”

- Quill diameter-2.36”

- Quill taper hole-MT#4

· Spindle Motor HP -7.5

· Power requirements, control-110V; 1P; 8 A

· Power requirements, machine-220V;3P;60Hz

· Amps full load current-25

· Dimensions net - 79 x 38 x 54”

· Dimensions shipping - 87 x 45 x 67”

· Weight net - 2,200 lbs.

· Weight shipping - 2750 lbs.

· Maximum rapid feed X - 100

· Maximum rapid feed Z - 150

· Coolant pump motor -1/8 HP

· Spindle motor brake - Dynamic braking

· Way surface hardness - 400 – 450 HB

· Head stock lubrication - Oil bath

· Sliding door for easy set-ups

· Bedways hardened and ground

· Sliding surfaces Turcite coated

· Dovetails on cross slide, V-ways on saddle

· Adjustable saddle gibs

- ProtoTRAK SLX & Pendant Control
- Tailstock & Steady Rest
- Coolant System
- Enclosed Guards
- Tooling shown
-three jaw chuck
-royal 5c collet air
