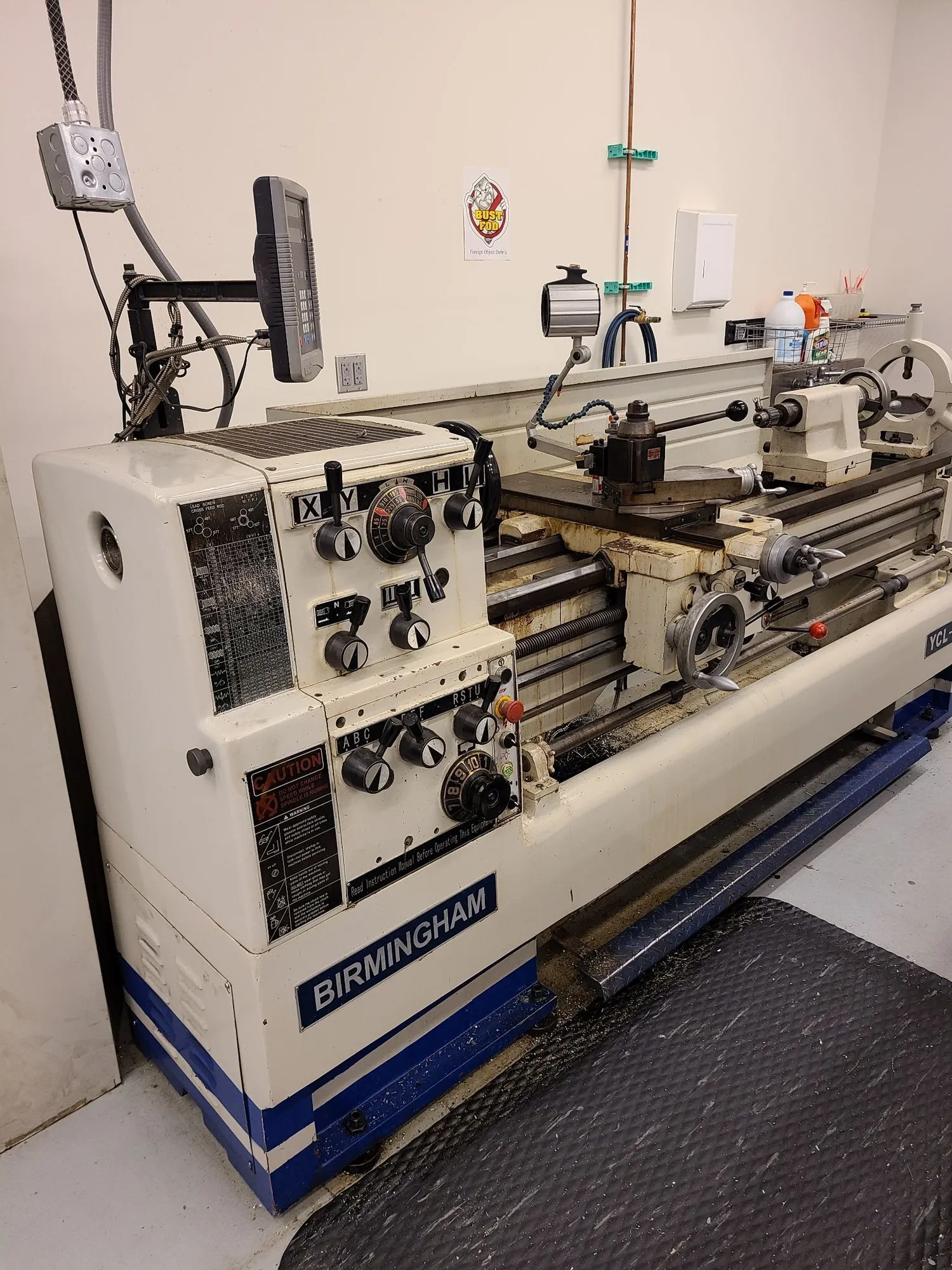

USED 2002 BIRMINGHAM YCL-1660

Birmingham YCL-1660 16" x 60" Engine Lathe

Max. swing over bed 16-1/8"
Max length of workpiece 60"
Max swing of carriage 8-13/16"
Max swing in Gap 25-3/16"
Width of bed 11-13/16"
Spindle nose D1-6
Diameter of spindle thru bore 2-9/32"
Taper of spindle center M.T.#6
Spindle speeds 25-2,000 RPM, 12 steps
Longitude feeds .0011"-.633"/REV,42 kinds
Cross feeds .00033"-.01837"/REV,42 kinds
Metric threads 0.1-14mm,41 kinds
Inch threads 112-TPI,60 kinds
Module threads 0.1-7mm,34 kinds
Diamentral pitch threads 112-4DP, 50 kinds
Max. travel of cross slide 12-3/16
Max. travel of top slide 5"
Diameter of tailstock quill 2-3/8"
Taper of tailstock quill center M.T. #4
Max.travel of tailstock quill 4-13/16
Power of Main Motor 7-1/2" H.P.
Power of Coolant Pump 1/8 H.P. 3Ph

Digital Read Out
Quick Change Tool Post
Steady Rest
Rear Splash Guard
Collet Chuck
Work Light
