SPECIFICATIONS
• Swing Over Bed: 16"
• Distance Between Centers: 30"
• Spindle Speed Range: 150 – 2500 RPM
• Control: ProtoTRAK SLX CNC Pendant
• Spindle Nose: D1-4 (typical – verify)
• Electrical: 230 - 3-Phase (machine), 115V Control
• Year: 2014
• Manufacturer: Southwestern Industries (TRAK)
FEATURES

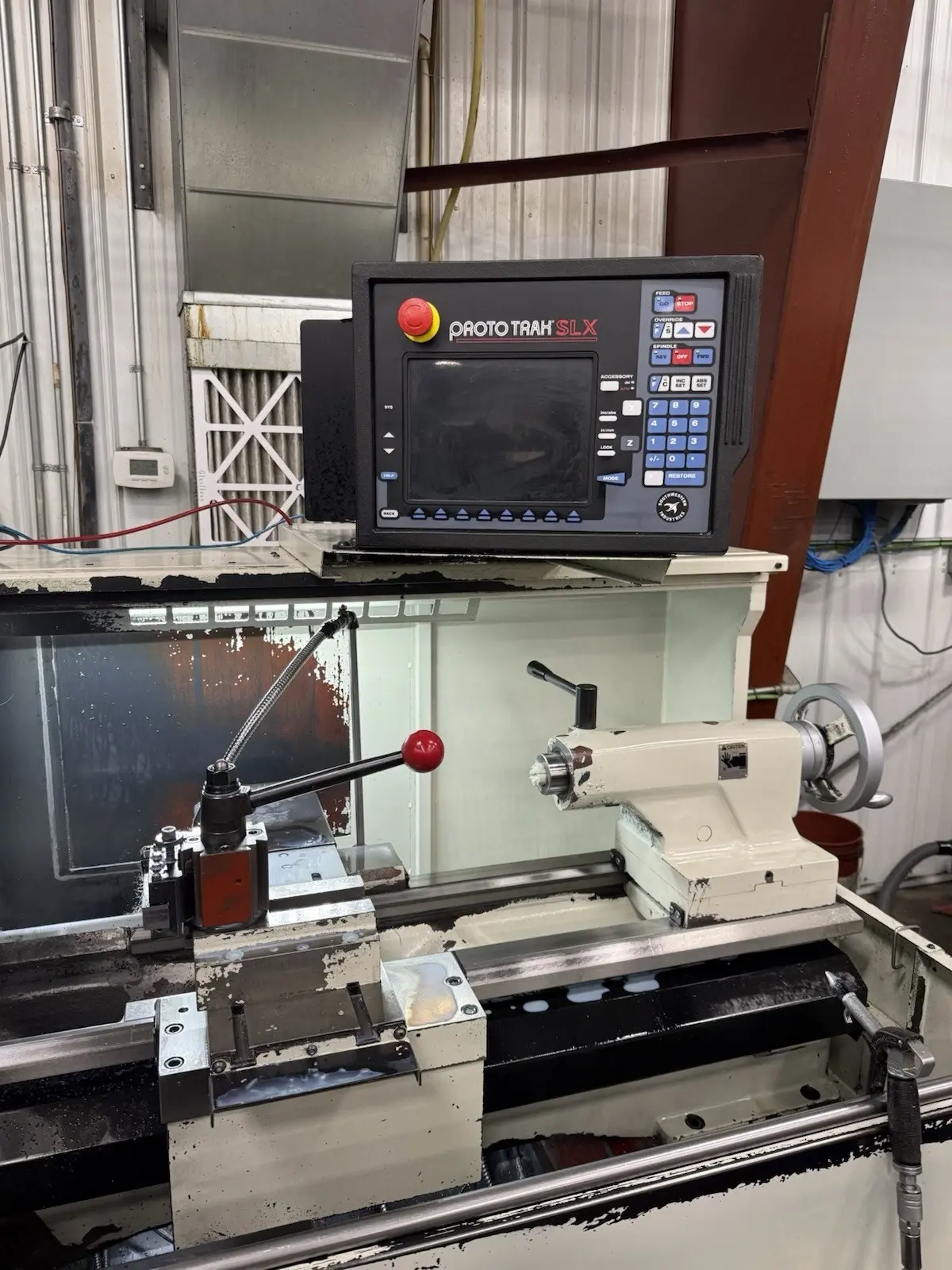

• ProtoTRAK SLX intuitive conversational CNC control
• Heavy-duty toolroom lathe design
• Fully enclosed guarding
• Coolant system
• Digital spindle control
• Excellent for short runs, R&D, and precision machining
• Extremely easy operator training and programming
INCLUDES
• ProtoTRAK SLX & Pendant Control
• Tailstock & Steady Rest
• Coolant System
• Enclosed Guards
• Tooling shown
-three jaw chuck
-royal 5c collet air
| Swing | 16" | 406.4 mm |
| Machining Length | 30" | 762 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |
| Dimensions | 82 in x 51 in x 64 in | 82 in x 51 in x 64 in |
| Weight | 3200 lbs | 3200 lbs |
