| Tonnage | 360 T | 326.587 t |
| Stroke | 2.215" | 56.261 mm |
| Dimensions | 78" LR X 8' FB X 93" Tall | 78" LR X 8' FB X 93" Tall |
| Weight | 16,500 Estimated | 16,500 Estimated |

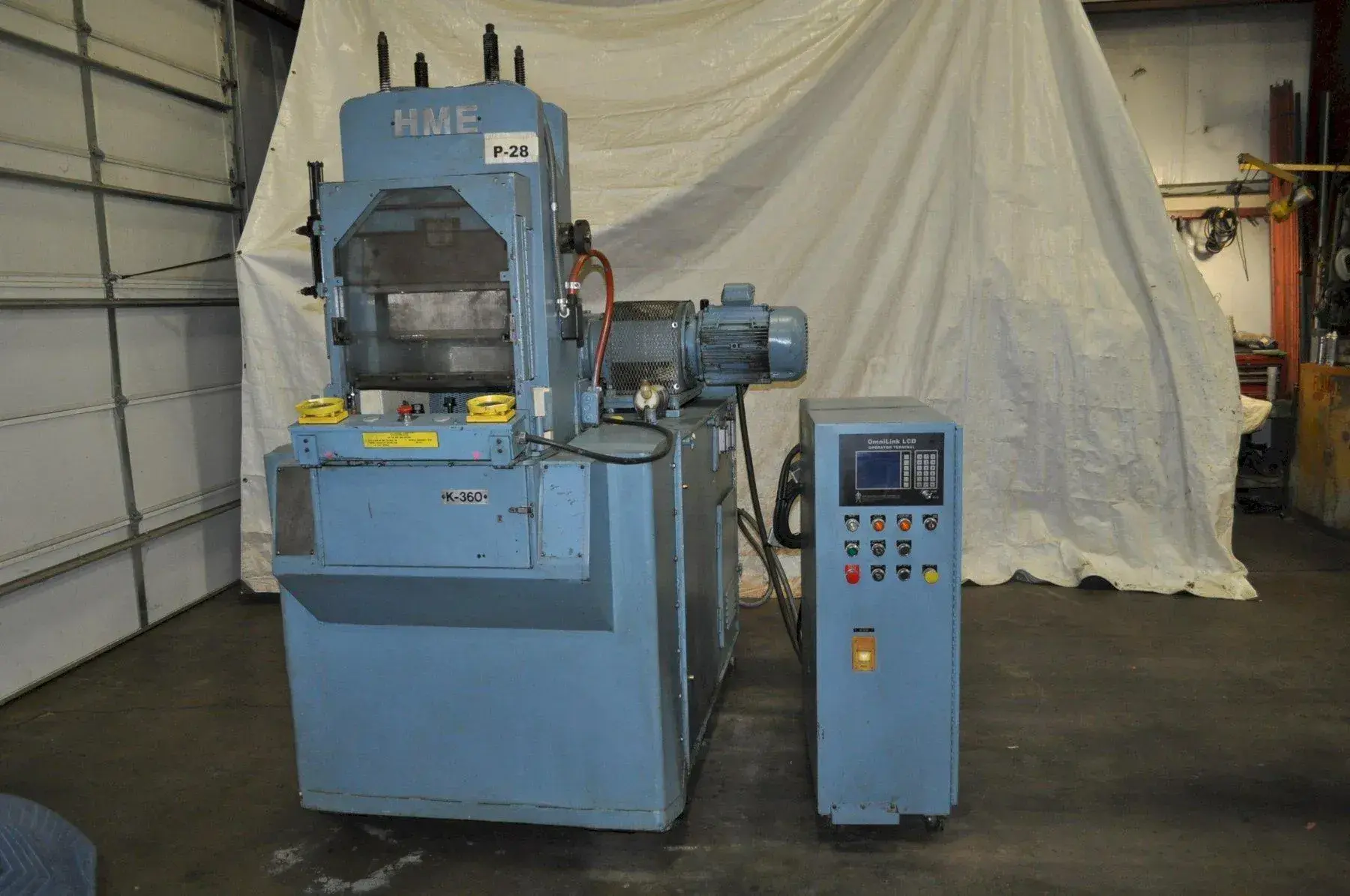

360 Ton HME Coining Press
Stock # 14633
Model K-360
Serial Number 6896
2.215" Stroke
19.125" Daylight
200 SPM
8" Feed Height From Bed
7" - 8.12" Lower Die Height From Bed
.502" Top Tool Adjustment
0- .187" Max Coining Well Depth
460 Maximum Flywheel Speed
16.5" X 14" Bed
16.5" X 14" Ram
14" X 12" X 5.5" Ram Spacer
Omni Link Control
Air Clutch
Air Brake
Palm Buttons
11 KW 460V/1750 RPM 17.7 Amp Draw
78" LR X 8' FB X 93" Tall
Estimated Weight 16,500
**PLEASE NOTE - Needs brake / clutch seal replaced
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
