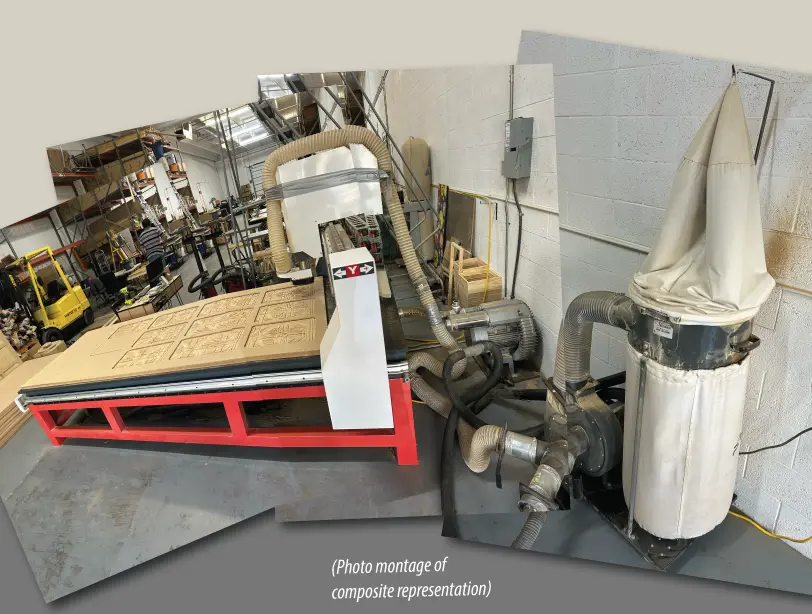

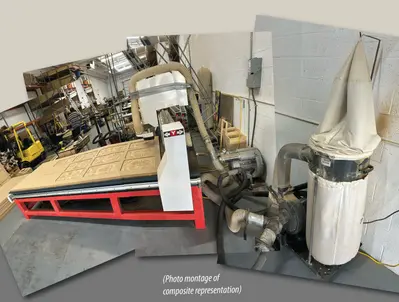

USED 2022 INDUSTRIAL CNC PRO SERIES

CNC INDUSTRIAL 4’x8’ Router
Vacuum hold down table
Controller w/MACH 3 CNC Interface
High Frequency Spindle
Dual Drive 4 motor Drive System
Dust Collection Attachment
Inverter
Starter Bit Set
BobCad-Cam Mill express software

Operational Footprint Requirements

Table Surface: The vacuum hold-down table is optimized for standard 48" x 96" sheet goods, with a small margin for edge-to-edge machining.

Loading Clearance: A minimum of 36 inches of perimeter clearance is recommended on all sides for safe material loading and maintenance of the Dual Drive 4-Motor System.

Foundation: Due to the 1,850 lbs weight and high-speed inertial forces, a reinforced concrete floor is the industrial standard to maintain calibration and prevent vibration.
System Configuration Summary

Power: 4 hp

Speed: 24,000 RPM

Interface: MACH 3 / BobCad-Cam

Comprehensive Equipment Profile
Category Parameter Value Unit
Performance Power 4 horsepower
Speed 24,000 revolutions per minute
Taper ER20 Collet System
Dimensions X-Axis (Width) 51 inches
Y-Axis (Length) 98 inches
Z-Axis (Height) 8 inches
Physical Table Width (W) 68 inches
Table Length (L) 122 inches
Machine Weight 1,850 lbs
Integration Controller MACH 3 CNC Interface
Software BobCad-Cam Mill Express
Operational Summary

Structural Integrity: The 1,850 lbs frame provides the necessary mass to dampen vibrations from the 4 hp spindle at 24,000 RPM, ensuring high-precision tolerances during rapid traverses.

Workflow Efficiency: The Vacuum Hold Down Table integrated with the Dual Drive system allows for continuous sheet processing of 4'x8' materials with minimal downtime between cycles.

System Control: The Inverter (VFD) and MACH 3 interface provide a synchronized power-to-motion ratio, maintaining constant torque across all three axes of operation.

Technical Accessory Suite: CNC Industrial 4’x8’ Router

The following accessory inventory is engineered to complement the 4 hp spindle and Dual Drive 4-motor system, ensuring the unit operates at maximum industrial capacity. These components are essential for maintaining the precision of the 8-inch Z-axis and the efficiency of the 48" x 96" vacuum hold-down table.
Integrated Operational Accessories
Accessory Technical Specification Operational Utility
High-Flow Vacuum Pump 7.5 hp – 10 hp (Typical) Generates the necessary CFM to secure porous materials (MDF/Plywood) across the 98-inch Y-axis.
Industrial Dust Collector 2 hp – 3 hp / 1,500+ CFM Critical for removing debris from the ER20 collet and linear guides to prevent mechanical wear.
Automatic Tool Sensor Z-Axis Zero Plate Provides rapid, sub-millimeter tool length offsets within the MACH 3 interface.
Collet Set (ER20) 1/8", 1/4", 3/8", 1/2" Ensures high-concentricity bit mounting for the 24,000 RPM high-frequency spindle.
Industrial Chiller / Fan Spindle Cooling Unit Maintains thermal stability for the 4 hp motor during prolonged industrial duty cycles.
Tooling & Software Inventory

Starter Bit Set: Includes compression bits for clean plywood edges, down-cut spirals for thin laminates, and 90-degree V-bits for precision carving.

BobCad-Cam Mill Express: The primary CAD/CAM engine for generating G-code compatible with the Dual Drive logic.

Sacrificial Spoiler Board: High-density MDF sheets surfaced to ensure the 51" x 98" working envelope remains perfectly planar.

Protective & Maintenance Equipment

RF-Shielded Cabling: Reduces electromagnetic interference (EMI) between the Inverter (VFD) and the MACH 3 controller.

Linear Guide Lubrication Kit: Specialized grease and applicators for the X and Y-axis rails to ensure smooth travel for the 1,850 lbs structural mass.
