SPECS:

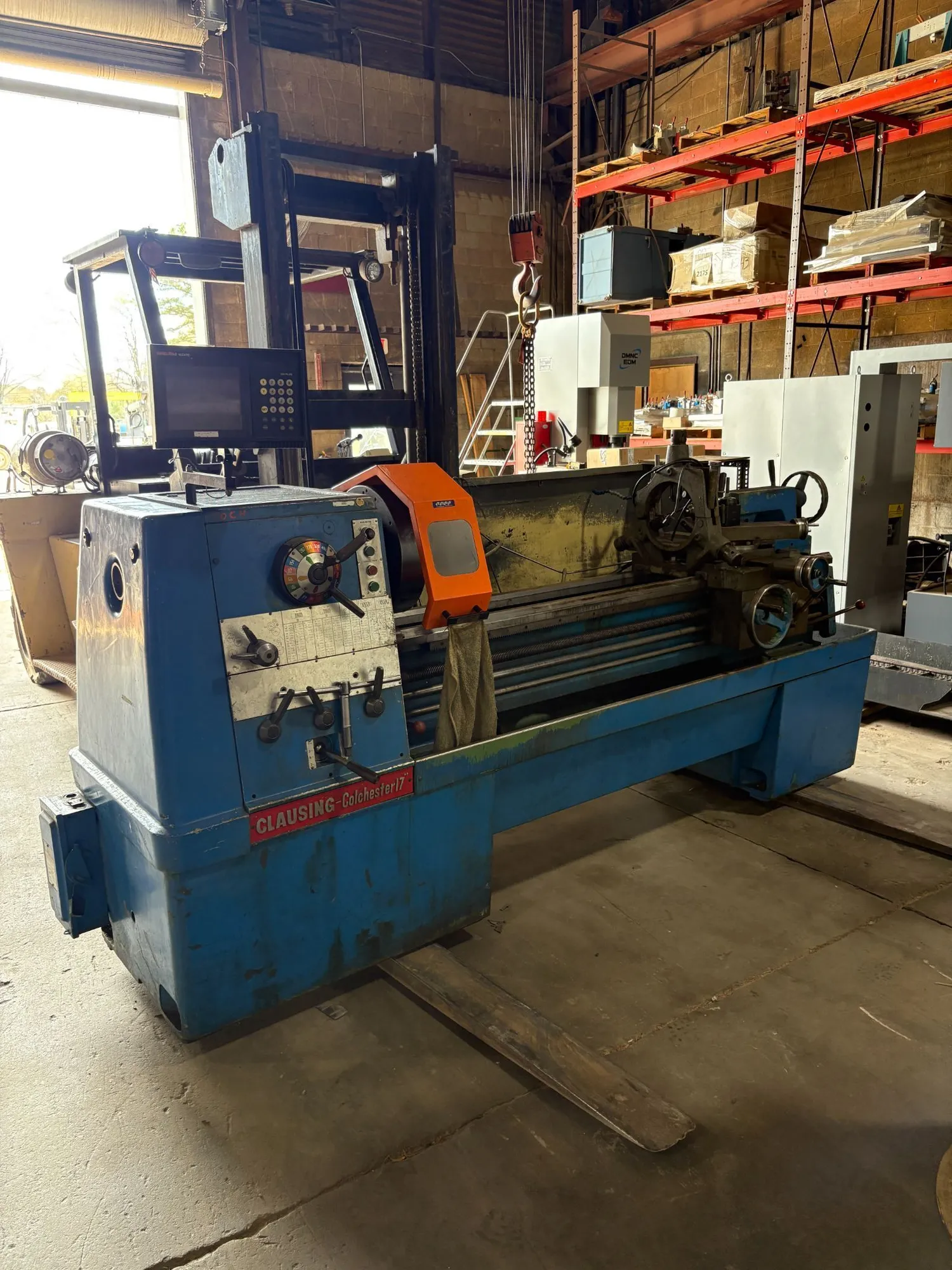

• Clausing Colchester 17 industrial engine lathe
• Floor space required 11 foot 6 inch x 3 foot 6 inch
• Overall height 4 foot 4 inch
• Approximate weight 6000 lbs
• Hole thru spindle 3.06 inch capacity
• Swing over bed ways rated 17 inch actual 17.25 inch
• Swing over cross slide 10.5 inch
• Distance between centers 80 inch
• Cross slide cross feed travel 12.25 inch
• Compound rest travel 6 inch
• Tailstock spindle diameter 2.94 inch
• Tailstock spindle travel 8.5 inch
• 220V 3 phase power 60 cycle 40 amp electrical
• Approx 10 HP main motor per nameplate
• Equipped with Anilam Wizard 350 Plus DRO digital readout
• Includes 3 jaw Burnerd chuck Made in England
• Manual gearbox with wide range of threading and feed options
CLAUSING COLCHESTER 17 used engine lathe with 17" swing, 87" centers, and 3" spindle bore. Features 10 HP power and 20 RPM. Swing over cross slide is 10". Ideal for heavy-duty precision tasks.
| Swing | 17" | 431.8 mm |
| Centers | 87" | 2,209.8 mm |
| Spindle Bore | 3" | 76.2 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 20 RPM | 20 RPM |
| Swing Over Cross Slide | 10" | 254 mm |
