Live Tool, Bar Feed, Patriot 551 Bar Feeder, Fanuc 0iTD CNC
| Machining Length | 3.93" | 99.822 mm |
| Chuck Size | 5" | 127 mm |
| Bar Capacity | 1.5" | 38.1 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |

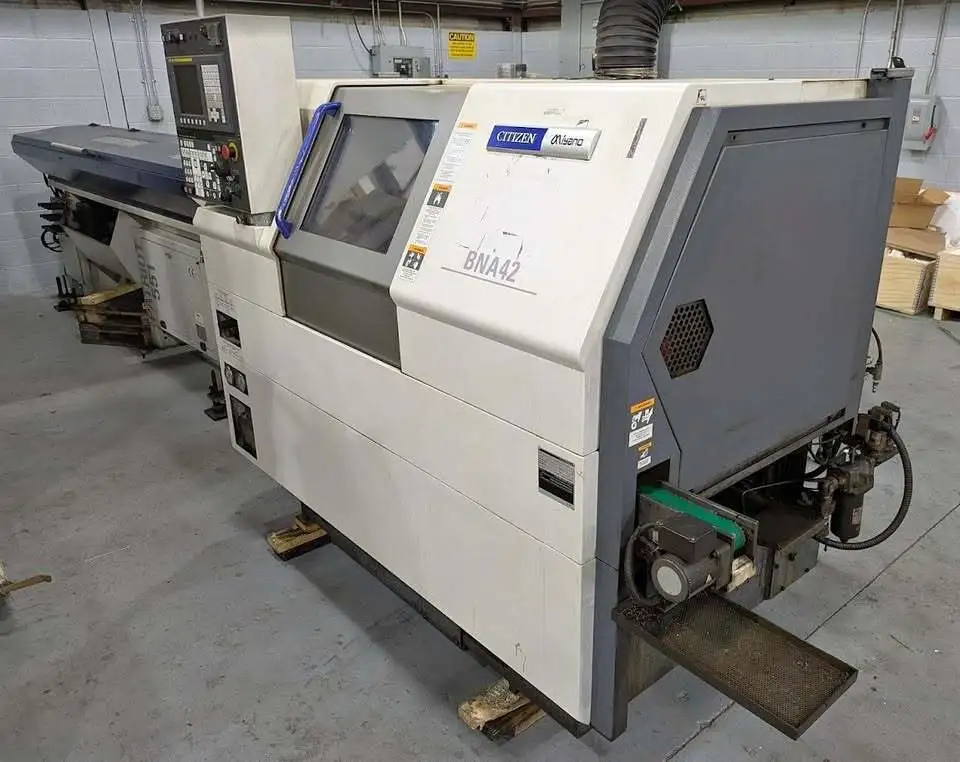

Citizen Miyano BNA-42S2 CNC Lathe (2018)
Chuck Size: 5"
Spindle Speed: 5,000 RPM
Spindle Motor: 5.53 HP
maximum bar diameter SP1: 42mm
maximum bar diameter SP2: 34mm
standard machining length: 100mm
number of spindles: 2
Turret has 8x positions, each with live tooling.
draw tube diameter SP1: 43mm
draw tube diameter SP2: 30mm
rapid feed rate X1 axis: 20m/min
rapid feed rate Z1 axis: 20m/min
rapid feed rate B axis: 20m/min
live tool motor: 2.8/1.0kW (16 Nm)
Live Tool

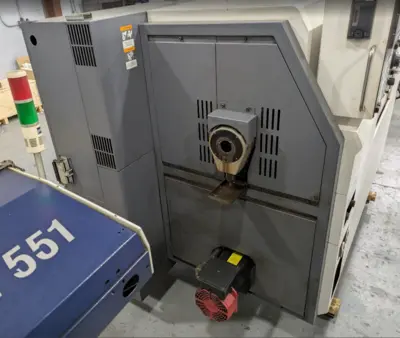

12' Edge Technologies Patriot 551 automatic bar feeder
Fanuc 0iTD CNC
LNS Chip Conveyor
Parts Conveyor
