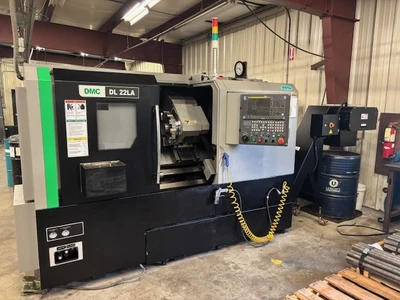

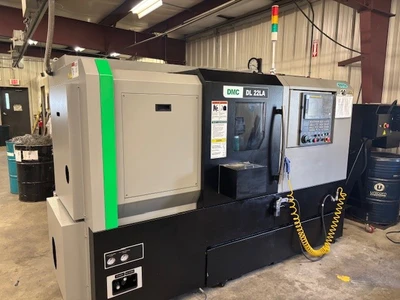

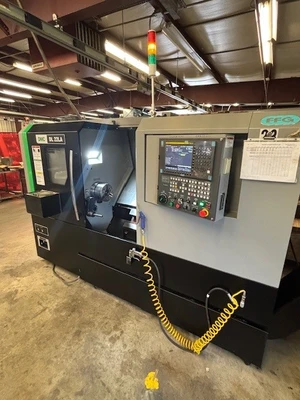

2022 DMC DL 22LA 2-Axis CNC Lathe, appears to be in excellent used condition. Machine was purchased new in 2024. Don't miss the opportunity to enhance your production capabilities with this reliable equipment.
| Swing | 21.65" | 549.91 mm |
| Machining Length | 19.29" | 489.97 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.55" | 64.77 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 11.02" | 279.91 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (Fanuc) | CNC (Fanuc) |
• Swing over bed: 550 mm (21.654 inches)
• Max. cutting diameter: 280 mm (11.02 inches)
• Max. cutting length: 490 mm (19.29 inches)
• Chuck Size: 10" hydraulic
• Bar Capacity: 65 mm (2.5591 inches)
• Spindle Motor: 15/20 HP
• Spindle Speed: 4,000 RPM
• Number of tools: 12
• Control: Fanuc 0iTF
• Guideway Type: BOX Way (X/Z)
• Turret: 12 station turret, non-stop bi-directional indexing

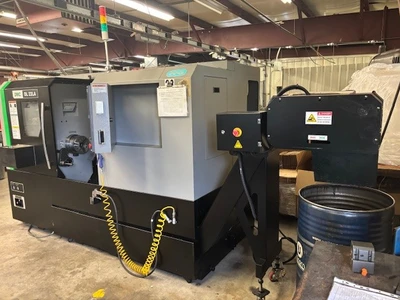

Chip Conveyor

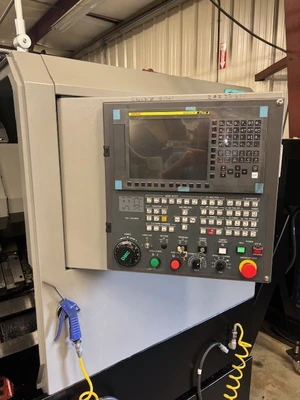

Fanuc CNC Control
Tailstock
