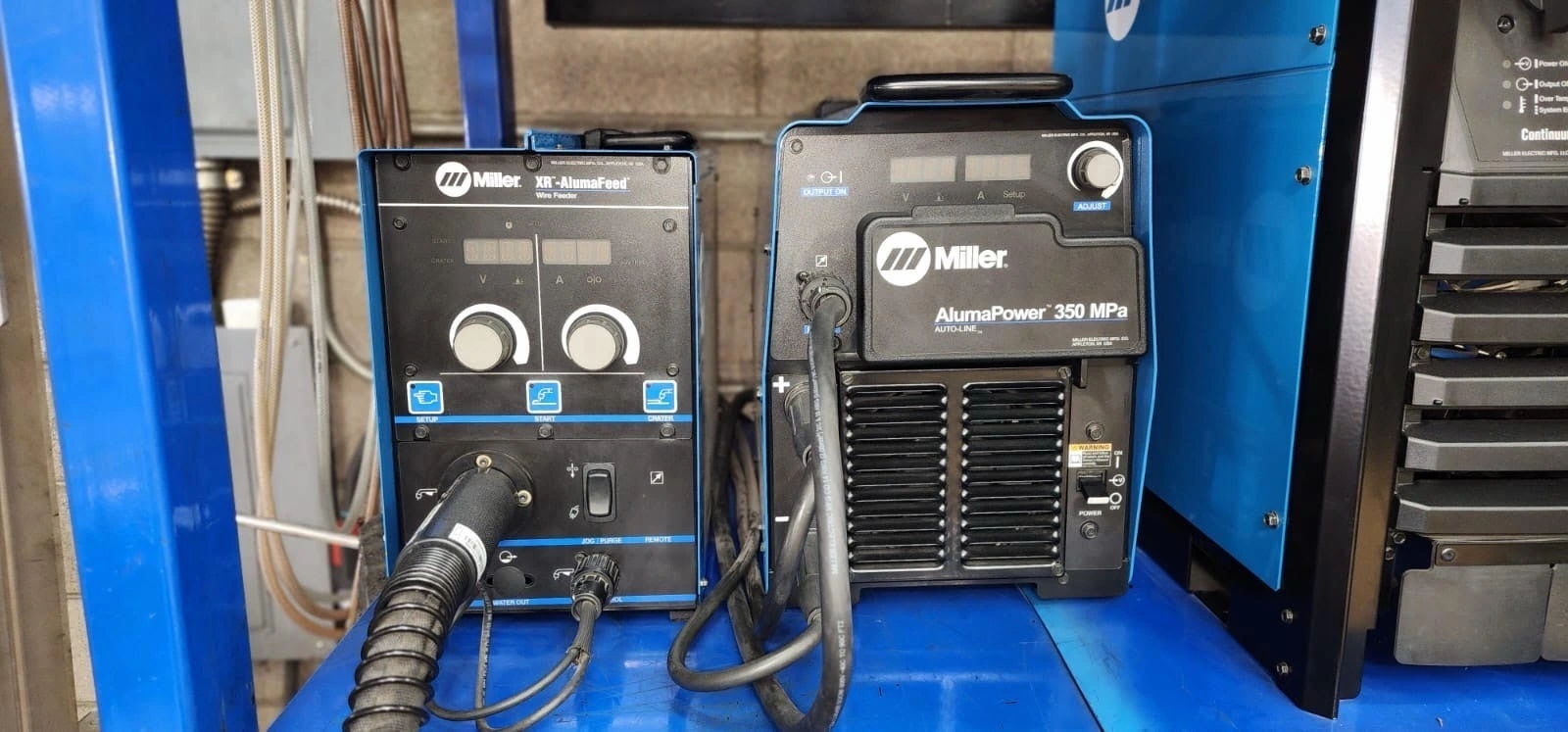

USED MILLER AlumaPower 350MPa

Turnkey aluminum welding solution built for performance, reliability, and precision. This Miller AlumaFeed 350 MPa Stationary Package paired with the XR-AlumaFeed wire feeder is designed specifically for high-quality aluminum fabrication and production environments.

Miller AlumaFeed 350 MPa:

Power Source (AlumaPower 350 MPa)
Output Range: 5 – 425 amps
Rated Output: 350A @ 34V (60% duty cycle)
Max Output: 425 amps
Voltage Range: 10 – 38 V
Input Power: 208–575V, 1-phase or 3-phase, 50/60 Hz
Current Type: DC
Duty Cycle: 60% @ rated output
Weight: ~80 lbs (power source only)

XR-AlumaFeed Wire Feeder:

Wire Feed Speed: 50 – 900 IPM (1.3 – 22.9 m/min)
Wire Size Capacity:
Aluminum: .035" – 1/16" (0.9 – 1.6 mm)
Spool Capacity: 12 in (standard)
Input Power: 24 VAC, 5A
Rated Output: 400A @ 100% duty cycle (system limited by gun)
Weight: ~31 lb
