| X | 50" | 1,270 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 52" | 1,320.8 mm |
| # Axis | 3 | 3 |

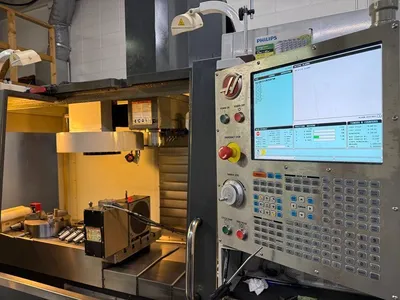

| Control | CNC | CNC |
| Dimensions | 52" x 18" | 52" x 18" |
| Weight | 11720 | 11720 |
Specifications (subject to buyer verification):
Hours/Feed cutting time 4360hrs
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: CAT 40

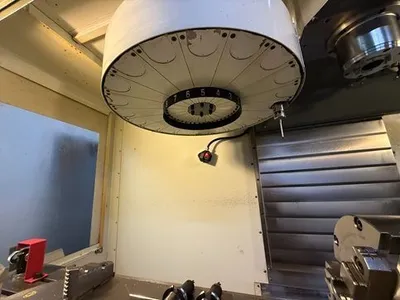

Tool Changer: 20 ATC
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Cutting: 650 ipm
Max Torque: 90 ft-lbf
Spindle Nose: 4.2" - 29.2"
Drive System: Inline Direct-Drive
Tool-to-Tool: 4.2 sec change
Coolant Capacity: 55 gal
Table Size: 52" x 18"
Weight: 11,720 LBS
Equipped with (Subject to buyer verification):
Through spindle coolant

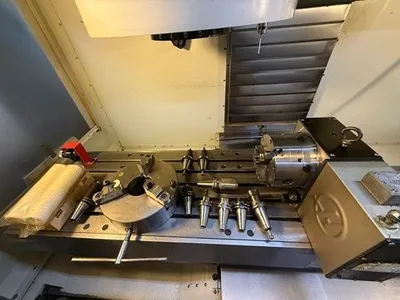

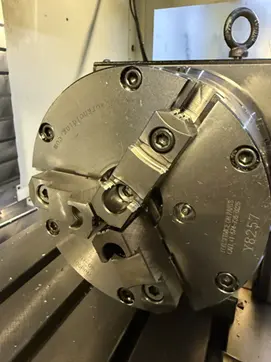

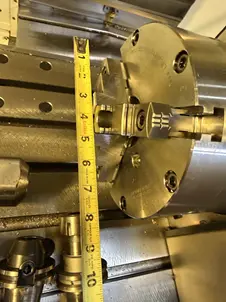

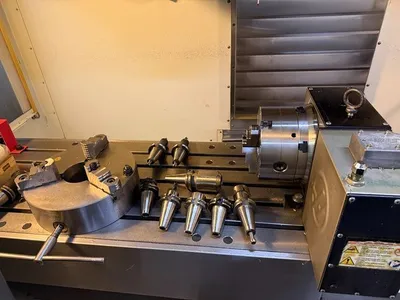

8” rotary 4th axis
Tool and workpiece probe

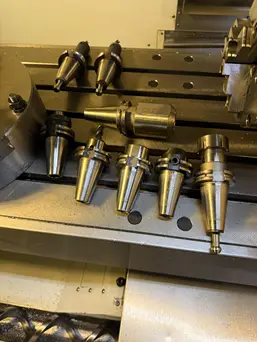

8 tool holders included
