USED CUMBERLAND 37B

Manufacturer: Cumberland
Model: 18X37
Application: Film Granulation

Description:

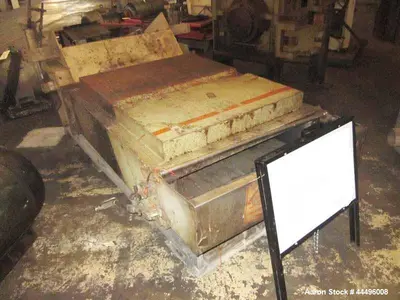

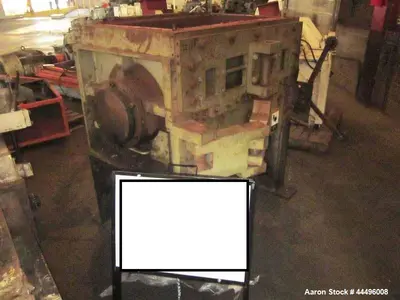

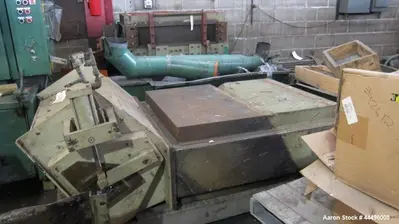

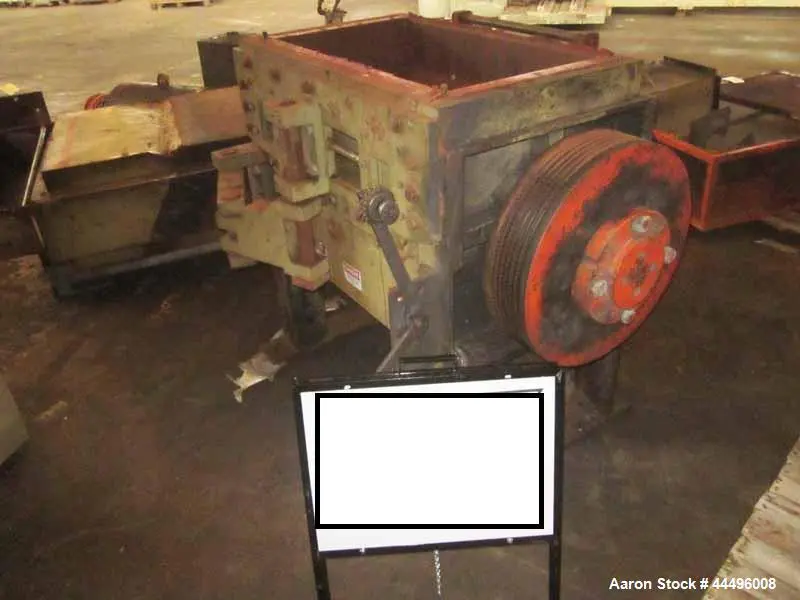

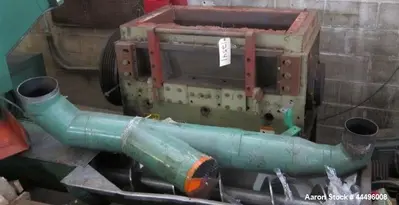

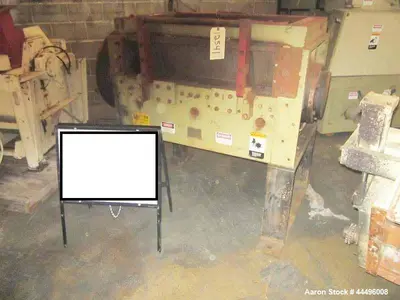

The Cumberland Model 18X37 Granulator is a heavy-duty granulation system specifically designed for film granulation applications. Featuring an 18" x 37" feed throat, the unit is equipped with a 5-knife steep angle step adjustable rotor (10 segments) and 2 bed knives for efficient and precise cutting. The granulator is belt-driven by a powerful 100 HP, 460 Volt, 1780 RPM motor and uses gravity discharge for material removal.

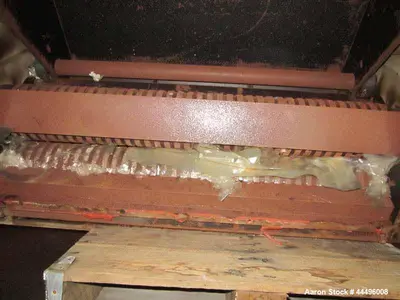

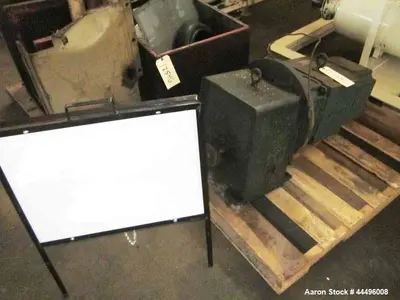

The system includes a 6" diameter x 37" wide knurled and grooved offset position feed roll infeed with pneumatic pinch to securely feed materials. The feed roll infeed is paired with a feed roll infeed trumpet and is chain and sprocket driven by a 7.5 HP, 1750/1930 RPM continuous duty DC motor through a Reliance 2.76/1 gearbox, ensuring smooth and controlled feeding of film materials.

Specifications:

Manufacturer: Cumberland

Model: 18X37

Feed Throat: 18" x 37"

Rotor:

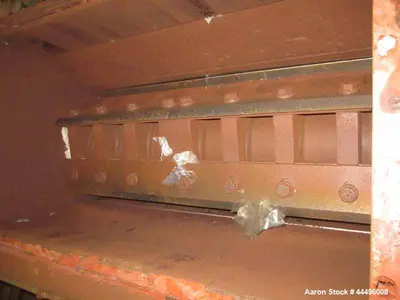

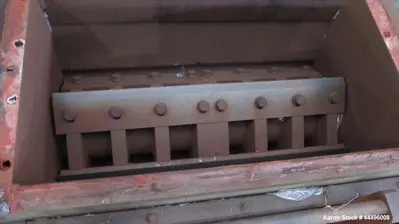

5-Knife Steep Angle Step Adjustable Rotor (10 Segments)
2 Bed Knives

Motor:

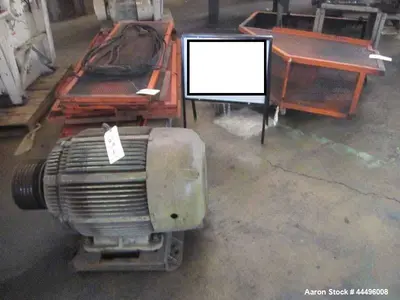

Granulator Drive: 100 HP, 460 Volt, 1780 RPM

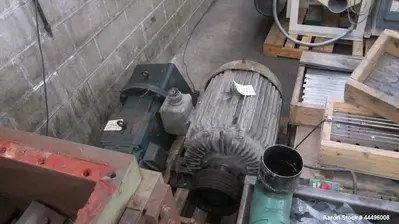

Feed Roll Drive: 7.5 HP, 1750/1930 RPM Continuous Duty DC Motor

Gearbox: Reliance 2.76/1 Gearbox

Feed System:

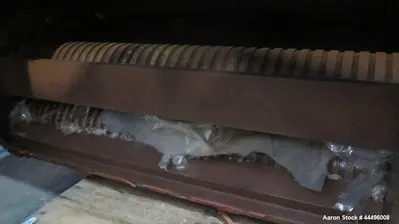

6" Diameter x 37" Wide Knurled and Grooved Offset Position Feed Roll
Pneumatic Pinch
Feed Roll Infeed Trumpet
Chain and Sprocket Driven

Discharge: Gravity Discharge

Construction Material: (Specify if known)

Power Requirements: 460 Volt, 3 Phase

Applications:
The Cumberland Model 18X37 Granulator is ideal for a range of film and sheet granulation processes in various industries, including:

Plastic Film Recycling
Sheet and Trim Scrap Recovery
Post-Consumer and Post-Industrial Plastic Granulation
Packaging Film Processing
Industrial Waste Reduction

Used For:

Granulating plastic films, sheets, and trims
Reducing plastic waste to regrind for recycling
Controlled feeding and precision cutting for thin films
Heavy-duty granulation of light to medium-density plastics
