Davis Standard / Xaloy 6" Diameter Extruder / Pelletizing line

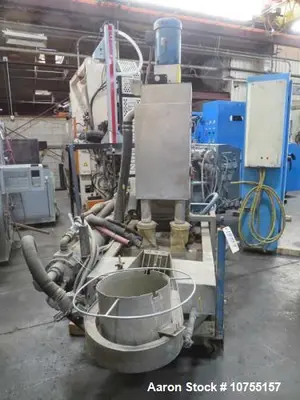

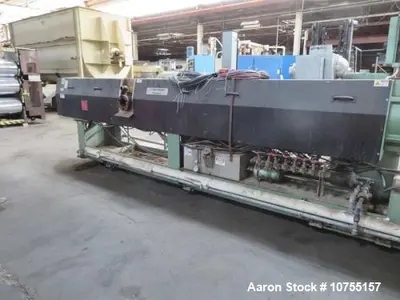

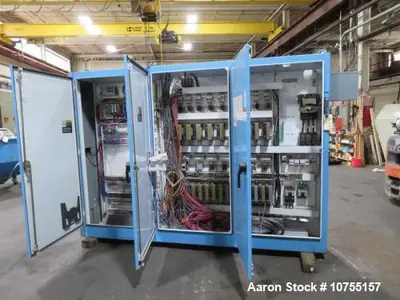

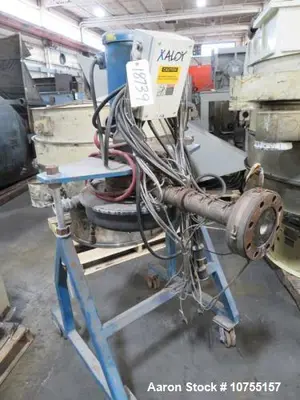

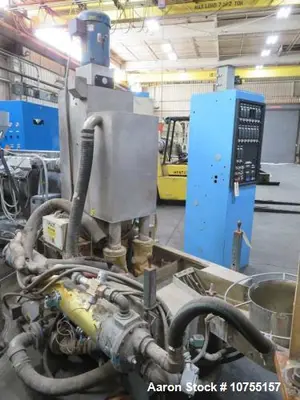

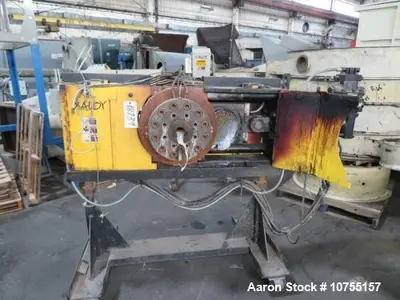

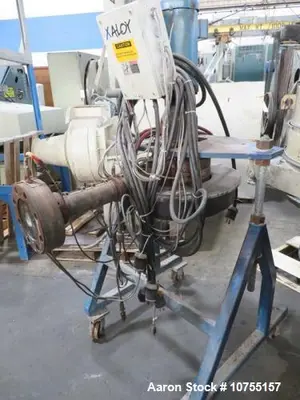

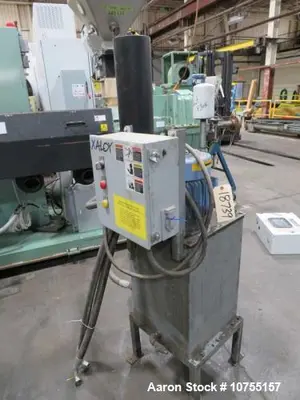

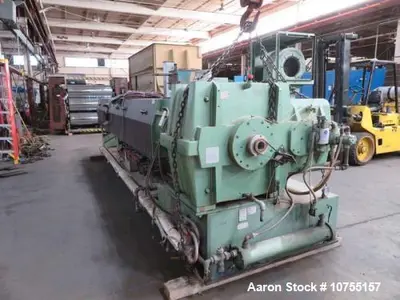

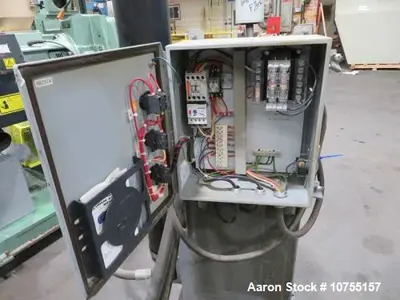

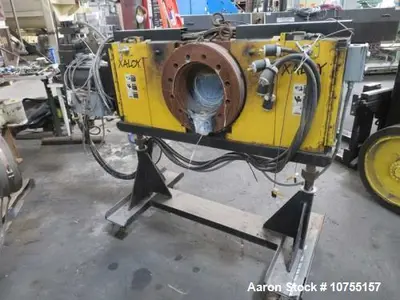

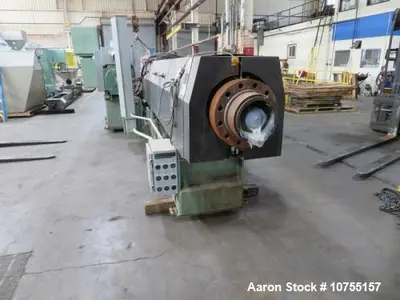

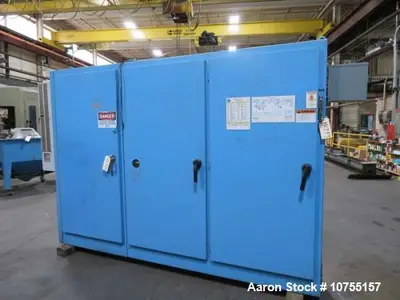

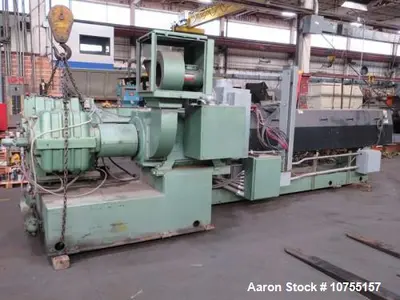

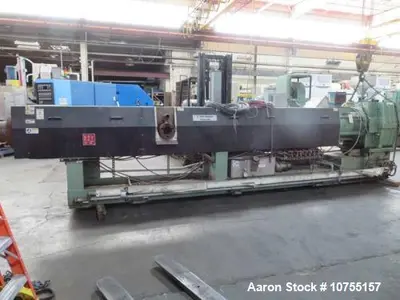

Used Davis Standard / Xaloy 6" pelletizing line consisting of: One (1) Davis Standard 6" model 60IN60TPTH extruder having a 34:1 L/D ratio barrel with a seven (7) zone electrically, heated, water cooled (closed loop), and vented barrel at a 42" centerline. Part Number 0022356-1-1. 8" x 12" on center feed throat. Oversized (8") Gearbox is direct driven in a wraparound manner by a 500 HP Reliance Super RPM 1150/1680 RPM D/C motor with Siemens Simoreg Microprocessor SCR control mounted in a stand-alone enclosure. Gearbox has a reduction ratio of 11.304:1 and is rated at 1050 HP at a service factor of 1.5. Liquid cooling system with heat exchanger for gearbox protection. Stand-alone control panel with sixteen (16) zones of Barber Coleman model 2408 digital controllers. Manufactured 9/2011. Gearbox completely rebuilt by Texas Extrusion Services 4/2022. 460/3/60. Drive 794 amps. Temp panel 400 amps. Reportedly barrier screw installed. Xaloy model EH-80SH hydraulic slide plate screen changer having two (2) nominal 8? diameter breaker plates. Serial number EH80-180 Mounted on a stand. With 3 hp hydraulic power pack with oversize accumulator. Xaloy model WRP-35S Pelletizer with 3 HP Cutting Head with stand, water reservoir with two (2) 1.5 HP water pumps, 7.5 HP slurry pump, 5 HP Spin Dryer, control panel and caster mounted pellet accumulation hopper. Serial number VB1057

Used Equipment Facts About This Machine
Manufacturer: Davis Standard / Xaloy
Model: 60IN60TPTH
Part Number: 0022356-1-1

Description:
This used Davis Standard / Xaloy 6" pelletizing line offers high-performance extrusion capabilities, ideal for demanding industrial applications. Featuring a 6" model 60IN60TPTH extruder with a 34:1 L/D ratio barrel, it includes a seven-zone electrically heated, water-cooled (closed loop), and vented barrel set at a 42" centerline. The system integrates an oversized (8") gearbox, direct-driven in a wraparound configuration by a powerful 500 HP Reliance Super RPM D/C motor, managed through a Siemens Simoreg Microprocessor SCR control for precise operation.

Specifications:

Extruder: Davis Standard 6" Model 60IN60TPTH

L/D Ratio: 34:1

Barrel Zones: 7 (Electrically heated, water-cooled, vented)

Centerline Height: 42"

Feed Throat: 8" x 12" on center

Gearbox: Oversized 8", wraparound direct drive

Motor: 500 HP Reliance Super RPM (1150/1680 RPM) D/C motor

Drive Control: Siemens Simoreg Microprocessor SCR

Applications:

Plastic pelletizing
Polymer compounding
Masterbatch production
Recycled plastics processing
Specialty resin pelletizing

Compatible Products:

Polyethylene (PE)
Polypropylene (PP)
Polystyrene (PS)
Polyvinyl Chloride (PVC)
Engineering resins (e.g., ABS, Nylon)
Biodegradable polymers
