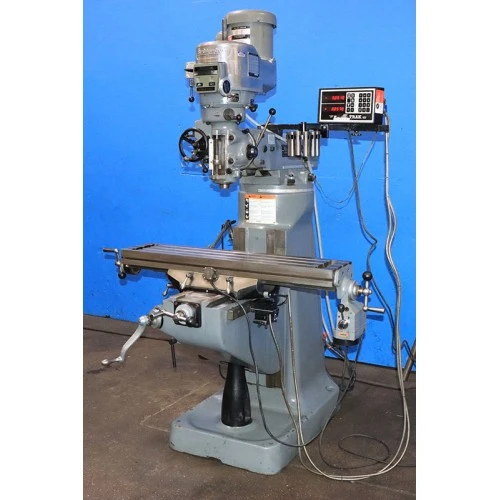

BRIDGEPORT 2 HP VERTICAL MILLING MACHINE WITH TRAK 2-AXIS DRO SERVO POWER FEED, CHROME WAYS, 9" x 42" TABLE, SUPER CONDITION

BRIDGEPORT 2 HP VERTICAL MILLING MACHINE WITH TRAK 2-AXIS DRO SERVO POWER FEED, CHROME WAYS, 9" x 42" TABLE, SUPER CONDITION

AML Stock #003022
BRIDGEPORT VERTICAL MILLING MACHINE MODEL: SERIES I
S/N: BR 258895, NEW: 1991

TABLE SIZE .............................. 9" X 42"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 30"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" /
2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
    TP FACE OF COLUMN
................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015",
0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

TRAK TWO AXIS DIGITAL READOUT
SERVO POWER FEED FOR LONGITUDINAL TRAVEL
CHROME WAYS
BIJUR ONE SHOT LUBRICATION SYSTEM
BRIDGEPORT SERIES I MILLING HEAD
2 HORSE POWER SPINDLE MOTOR
CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW
JERSEY
CONDITION:   *** SUPERB  ***
