AML Stock #003021

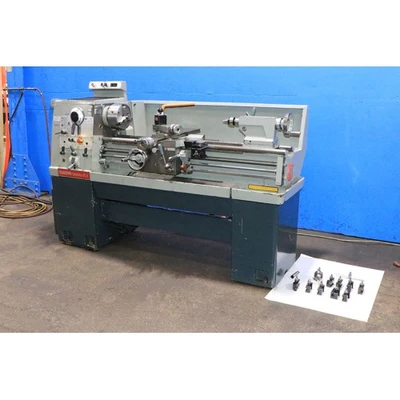

13" x 40" CLAUSING COLCHESTER ENGINE LATHE MODEL
13VS
S/N: 21/0002/00227DD, NEW: 1991
SWING OVER BEDWAYS ................... 13"
SWING OVER CROSS SLIDE ............... 8-1/4"
HOLE THRU SPINDLE .................... 1-21/32"
DISTANCE BETWEEN CENTERS ............. 40"
SPINDLE NOSE ......................... D1-4" CAMLOCK
SPINDLE SPEEDS VARIABLE THREE RANGES:
LOW RANGE ......................... 20 -
100 RPM
MEDIUM RANGE ...................... 90 -
540 RPM
HIGH RANGE ........................ 500 -
3100 RPM
ENGLISH THREADING RANGE (45) ......... 2 - 72 TPI
METRIC THREADING RANGE (39) .......... .2 - 14 mm
LONGITUDINAL FEED RANGE .............. .0015" -
.040" IPR
CROSS FEED RANGE ..................... .00075" -
.020" IPR
TAILSTOCK SPINDLE TAPER .............. #4MT
TAILSTOCK SPINDLE TRAVEL ............. 6-1/8"
APPROX FLOOR SPACE ................... 78"L x 32"W
x 49"H
APPROX WEIGHT ........................ 2,750 LBS
INCH/METRIC THREADING
TAPER TURNING ATTACHMENT
3-JAW BISON CHUCK
JACOBS DRILL CHUCK FOR TAILSTOCK
ALORIS MODEL: BXA QUICK CHANGE
TOOLPOST w/HOLDERS
TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL
THREAD DIAL INDICATOR
LIVE CENTER FOR TAILSTOCL
COOLANT SYSTEM
HARDENED BED WAYS
4 HORSE POWER MAIN MOTOR
CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW
JERSEY
