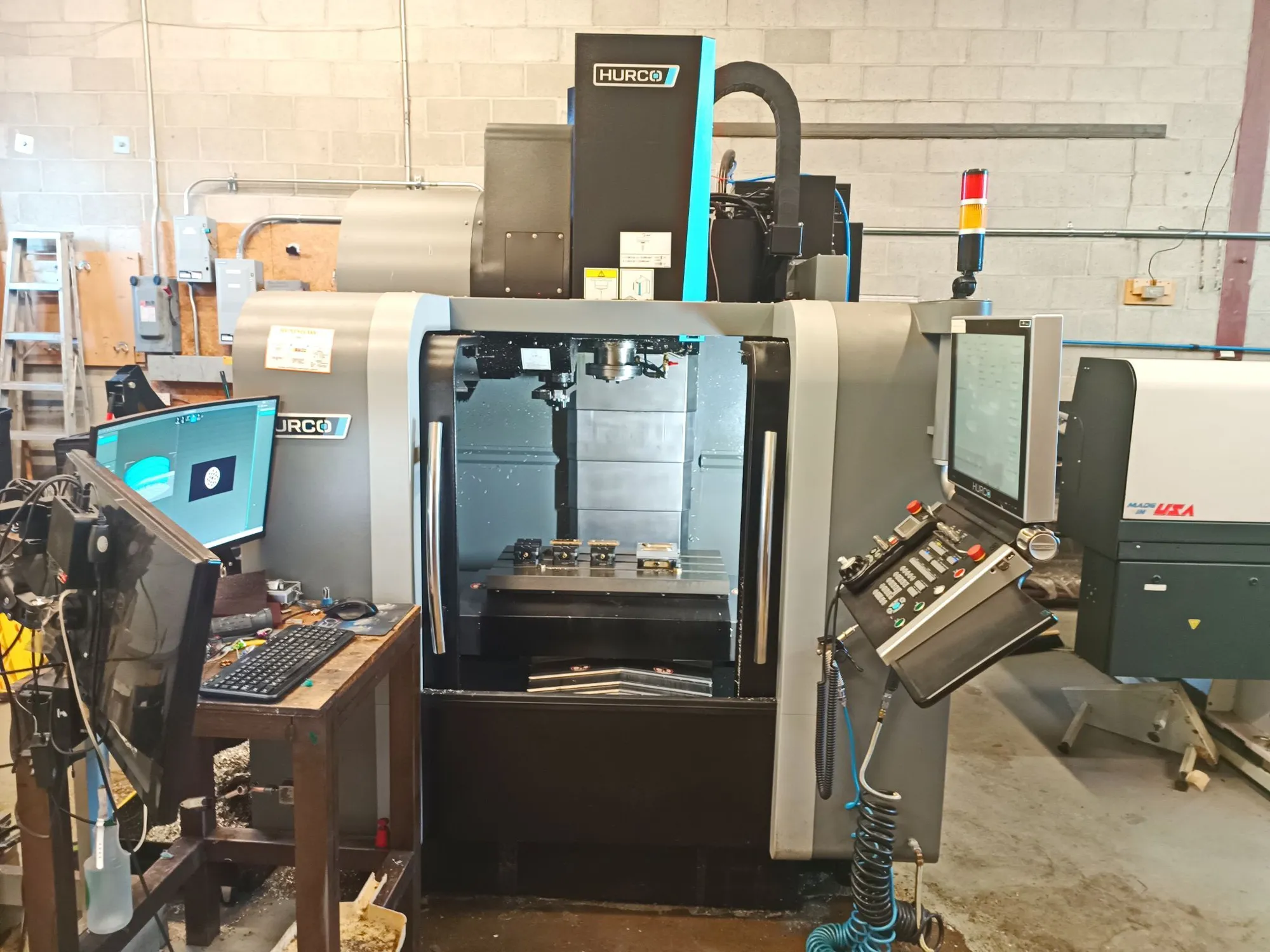

2019 Hurco VM10i Plus Vertical CNC Machining Center, BT-40 Big Plus Spindle, Renishaw Probing, Brushless AC Servos, 20-Position Side-Mount Tool Changer, Chip Auger, UltiPocket W/ Helical Ramp Entry And Insert Pockets
| X-Axis | 26" | 660.4 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 20 | 20 |
| Taper | BT-40 / Big Plus® | BT-40 / Big Plus® |
| Table-W | 16" | 406.4 mm |
| Table-L | 30" | 762 mm |
| # Axis | 3 | 3 |
| Max Table Load | 1,503 lb | 681.8 kg |
| Distance Spindle Nose to Table | 24" | 609.6 mm |
| Rapids (X/Y/Z) | 945 in/min. | 945 in/min. |
| Made In | Taiwan | Taiwan |
| Control | CNC (Hurco WinMax) | CNC (Hurco WinMax) |
| Dimensions | 90" X 77" X 96" | 90" X 77" X 96" |
| Weight | 6,768 lb | 6,768 lb |
Spindle hours: 1,300
BT-40 big plus spindle
Renishaw OMP40 part probe
Renishaw probe interface
Yaskawa Sigma 5 drives
Brushless AC servos
20-position side-mount tool changer
Ultipocket w/ helical ramp entry & insert pockets
Max5 console w/ 19” LCD screen
Chip auger
