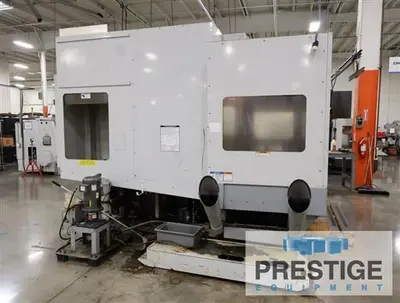

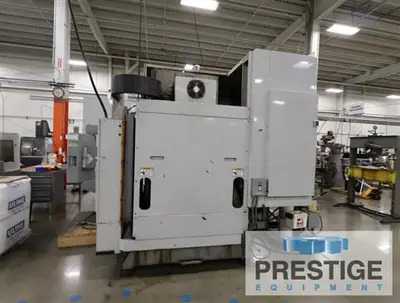

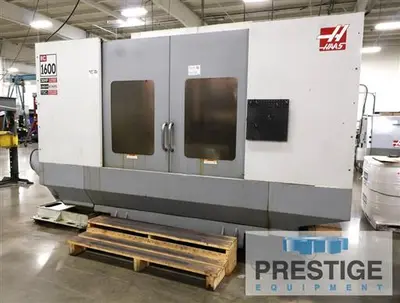

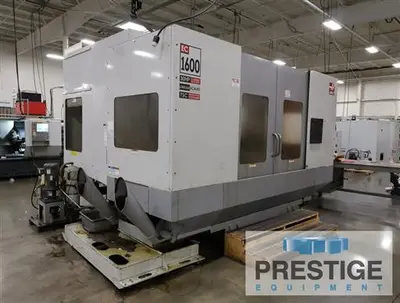

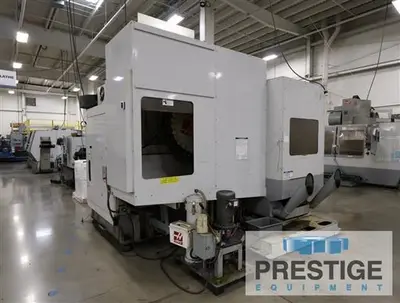

USED 2007 HAAS EC-1600 5X

CAPACITY:
X-Axis Travel: 64"
Y-Axis Travel: 40"
Z-Axis Travel: 32"
Overall Table Size: 64" x 36"
Built-In Rotary Table Diameter: 30"
Maximum Part Weight on Table: 10,000 LBS.
Spindle Taper: CAT 50
Spindle Speeds: 6,000 RPM
Main Motor: 30 HP Geared Head
Rapid Traverse, XYX: 750 IPM
Auto Tool Change Capacity: 30 ATC
Maximum Tool Dia., Adj. Full/Empty: 4" / 10"
Maximum Tool Length: 20"
Maximum Tool Weight: 30 Lbs.
Approx Dimensions, Domestic Pallet: 192" x 144" x 136"
Approx Machine Weight: 35,000 lbs.

Equipped With:

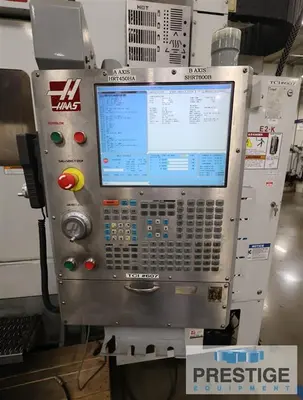

Haas CNC Control
- 5th Axis Pre-Wired
- Remote Jog Handle
- Quick Code Programming
- Intuitive Programming
- High Speed Machining
- Advanced Tool Management

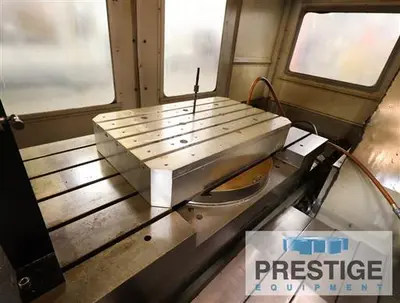

Built-In 4th-Axis Rotary Table

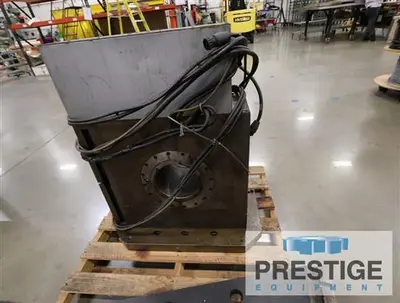

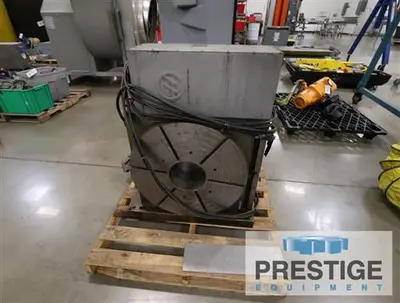

Haas HRT 630 24" 5th-Axis Table
Renishaw Wireless Probing

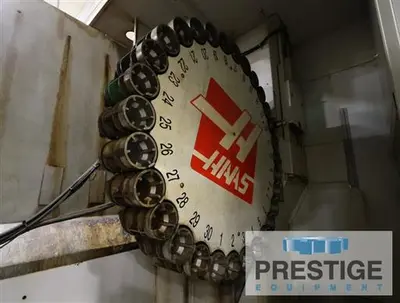

30-Station Automatic Tool Changer
Rigid Tapping
Rev Spindle Encoder
Rotation & Scaling
Remote Tool Release
Vector Drive
30 HP Motor
Linear Scales
Thru-Spindle Coolant
Dual Chip Augers

LOCATION:
East Coast Manufacturing Facility

Features:
HAAS CNC Control
30" Built-In 4th-Axis Rotary Table
Haas HRT 600 24" 5th-Axis Table
30-Position ATC
CAT 50 Taper
30 HP Motor
Thru-Spindle Coolant
Dual Chip Augers
