USED PIRANHA 200-12

Ontario, Canada
286Listings|151Followers
Overview
Press Brakes

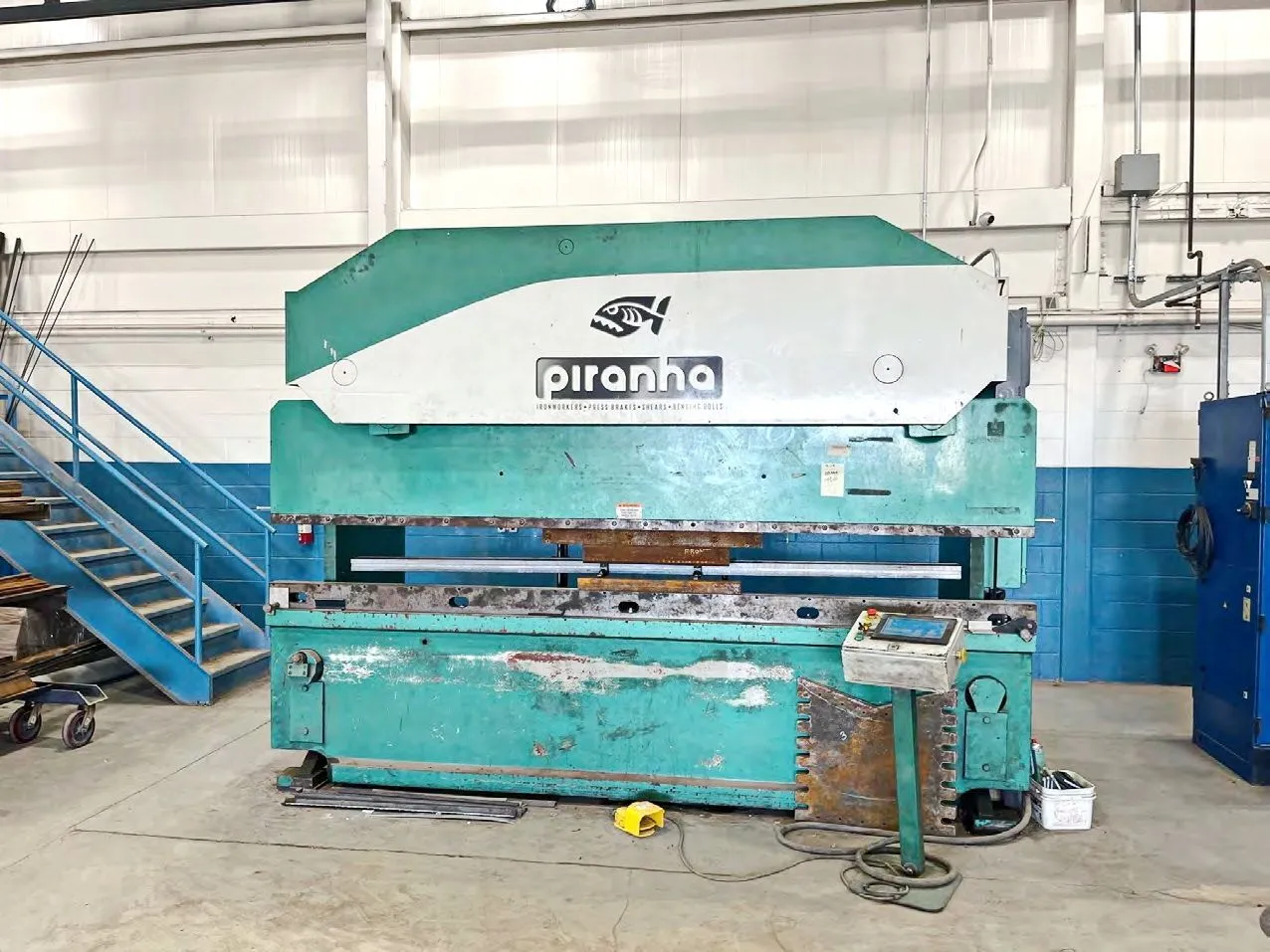

Piranha 20012 CNC Press Brake, 200 Ton, X-Axis Backgauge, Automationdirect Touchscreen Control, Front Operator Control Pendant, Foot Pedal Control, Upper & Lower Tooling Holders, Mechanical Ram Synchronization, Side And Rear Guarding Panels

Specs
Tonnage
200 T
181.437 t
Type
HYD
HYD
OA Length
144"
3.7 m
Between Housings
126"
3.2 m
Throat Depth
8"
203.2 mm
Stroke
8"
203.2 mm
# Axis
2
2
Motor Power
20 hp
14.9 kW
Open Height
17"
431.8 mm
Made In
United States
United States
Control
CNC (AutomationDirect)
CNC (AutomationDirect)
Dimensions
156” X 60” X 111”
156” X 60” X 111”
Equipped With

X-axis CNC backgauge (40" travel)

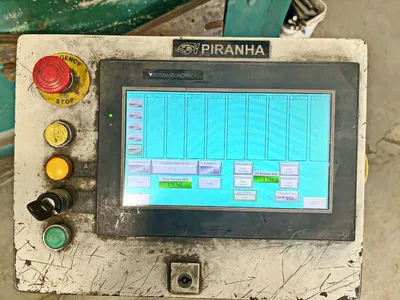

AutomationDirect touchscreen control
Front operator control pendant
Foot pedal control

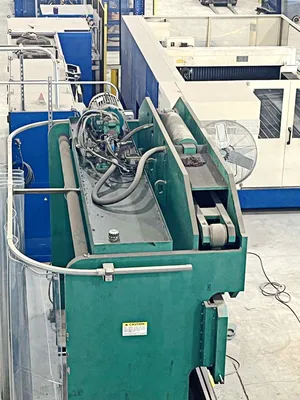

Integrated hydraulic power unit
Upper & lower tooling holders
Mechanical ram synchronization (torque tube design)
Heavy-duty welded frame construction
Side & rear guarding panels
Emergency stop system
